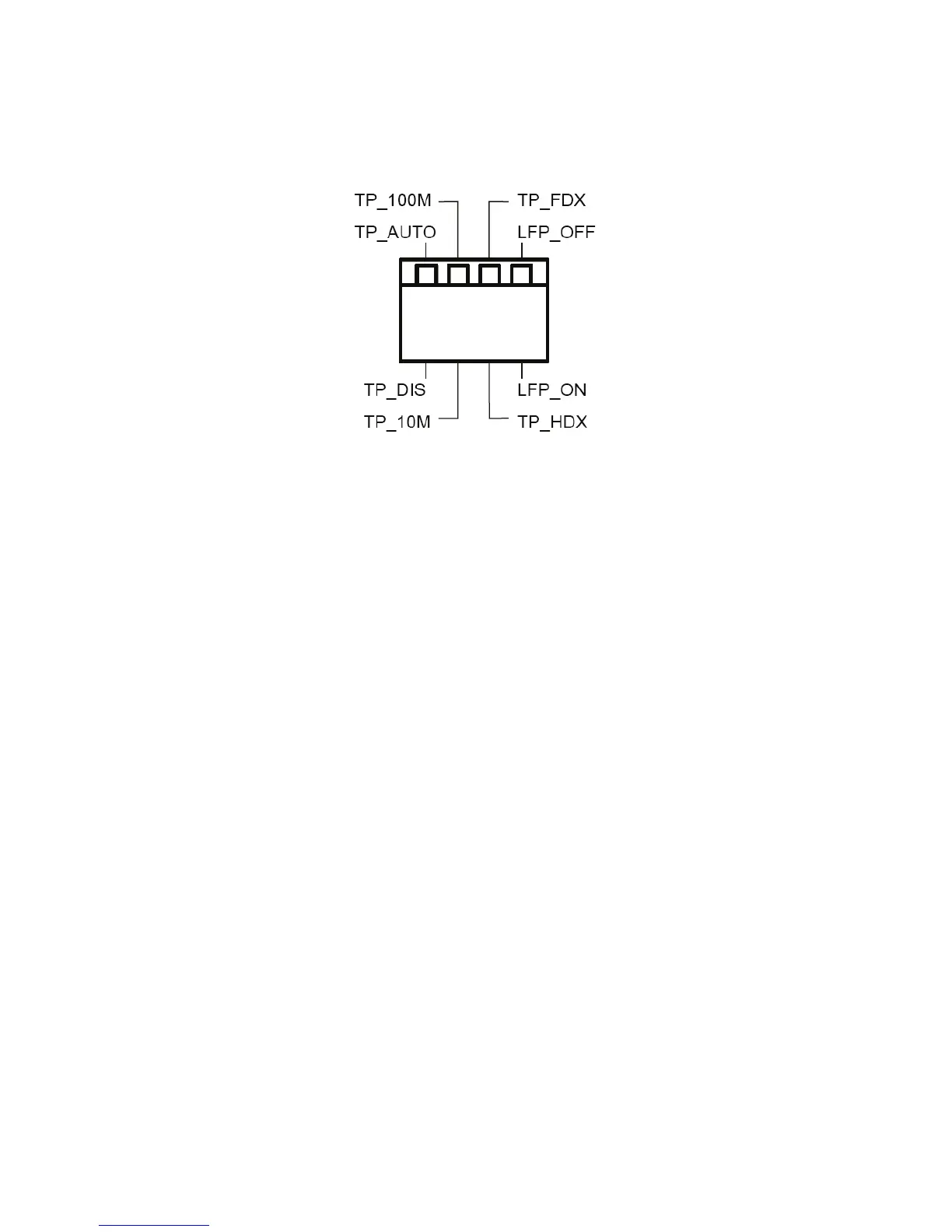

1.5.2 Switch
 TP_AUTO: The TP port operates in Auto-Negotiation mode;
 TP_DIS: The TP port operates in FORCE mode;
 TP_100M: The TP port operates in 100Base-Tx;
 TP_10M: The TP port operates in 10Base-T mode;
 TP_FDX: The TP port operates in Full-Duplex mode;
 TP_HDX: The TP port operates in Half-Duplex mode;
 LFP_OFF: The Link Fault Pass Through function is disabled;
 LFP_ON: The Link Fault Pass Through function is enabled.
Connect different devices, we suggest leaving the switches like these
as shown below, otherwise the Media Converter may not work
normally.
6

TP-Link MC110CS Specifications

General

I/O ports	1x 100M SC 1x 100M RJ45
Full duplex	Yes
Dimensions (WxDxH)	94.5 x 73 x 27 mm
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Cabling technology	UTP 3, 4, 5e, 5
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Ethernet interface type	Gigabit Ethernet
Maximum data transfer rate	1000 Mbit/s
Fiber ethernet cabling technology	100BASE-FX
Internal	No
Certification	FCC, CE
Product color	Black
LED indicators	Power, Speed
Wavelength	1310 nm
Maximum transfer distance	20000 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power consumption (max)	1.52 W
Package depth	204 mm
Package width	165 mm
Package height	65 mm
Package weight	380 g

Weight and Dimensions

Depth	73 mm
Width	94.5 mm
Height	27 mm
