TP-Link MC110CS User Manual

Chapter 1 Introduction
Thank you for choosing the MC100CM/MC110CS Fast Ethernet
Media Converters
or the MC111CS/MC112CS WDM Fast Ethernet
Media Converters
!

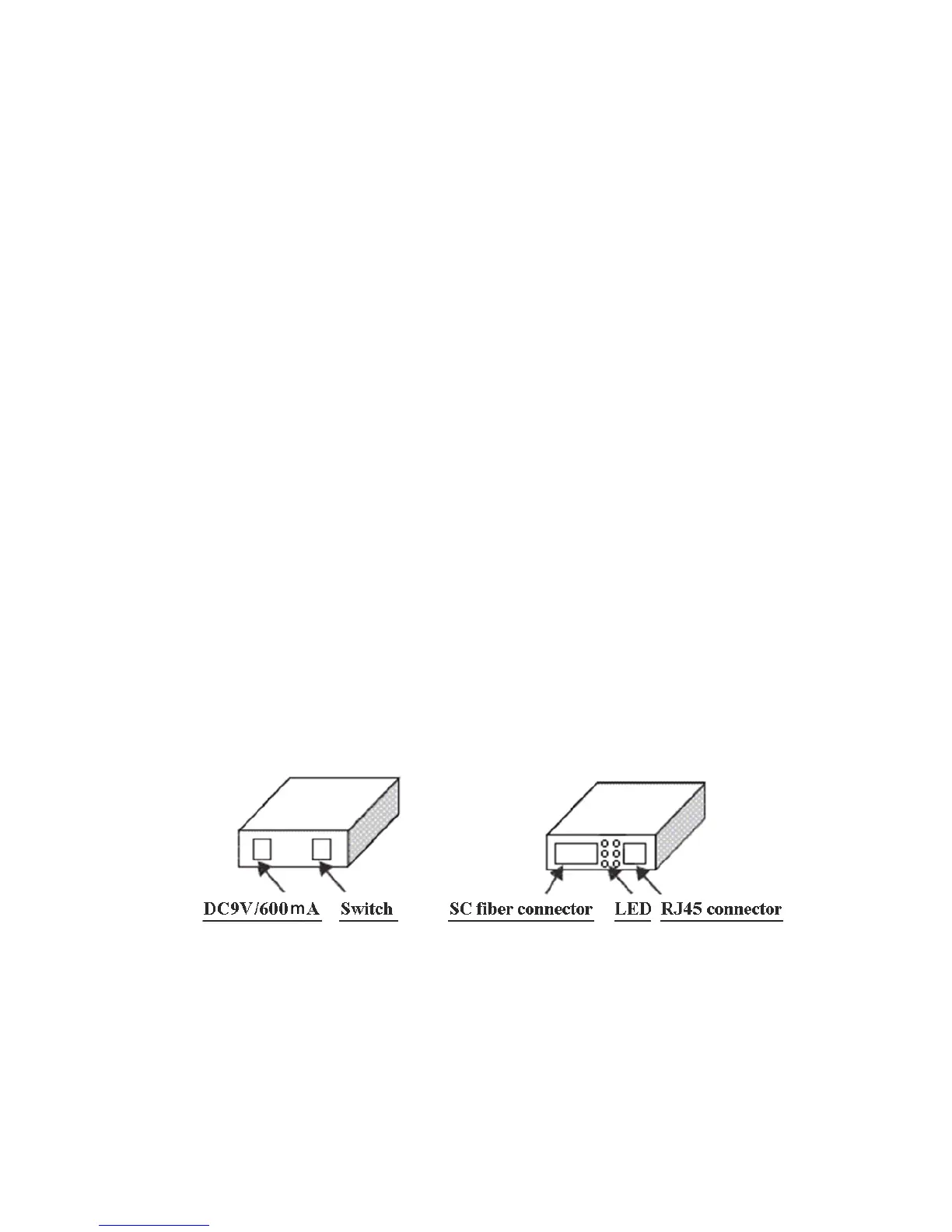

1.1 Overview of the Converter
MC100CM and MC110CS are Fast Ethernet Media Converters.
MC111CS and MC112CS, the WDM Fast Ethernet Media Converters,
adopt WDM (Wavelength Division Multiplexing) technology which
increases the information carrying capacity of fiber via transmitting
and receiving multiplex signals at different wavelengths on a single
strand cable. You can save half cabling cost when you use MC111CS
and MC112CS instead of your original dual fiber converter.
The converter mediates between a 10/100Base-TX segment and a
100Base-FX segment. It is primarily designed for large, higher
speed/bandwidth demanding workgroups that require expansion of
the Fast Ethernet network.
The converter also features the LFP (Link Fault Pass through)
function, and for its procedure illustrates, please refer to the section 1.5.3.
2

TP-Link MC110CS Specifications

General

I/O ports	1x 100M SC 1x 100M RJ45
Full duplex	Yes
Dimensions (WxDxH)	94.5 x 73 x 27 mm
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Cabling technology	UTP 3, 4, 5e, 5
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Ethernet interface type	Gigabit Ethernet
Maximum data transfer rate	1000 Mbit/s
Fiber ethernet cabling technology	100BASE-FX
Internal	No
Certification	FCC, CE
Product color	Black
LED indicators	Power, Speed
Wavelength	1310 nm
Maximum transfer distance	20000 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power consumption (max)	1.52 W
Package depth	204 mm
Package width	165 mm
Package height	65 mm
Package weight	380 g

Weight and Dimensions

Depth	73 mm
Width	94.5 mm
Height	27 mm
