TP-Link MC110CS User Manual

Chapter 2 Installation Guide
2.1 Fast Ethernet Media Converter

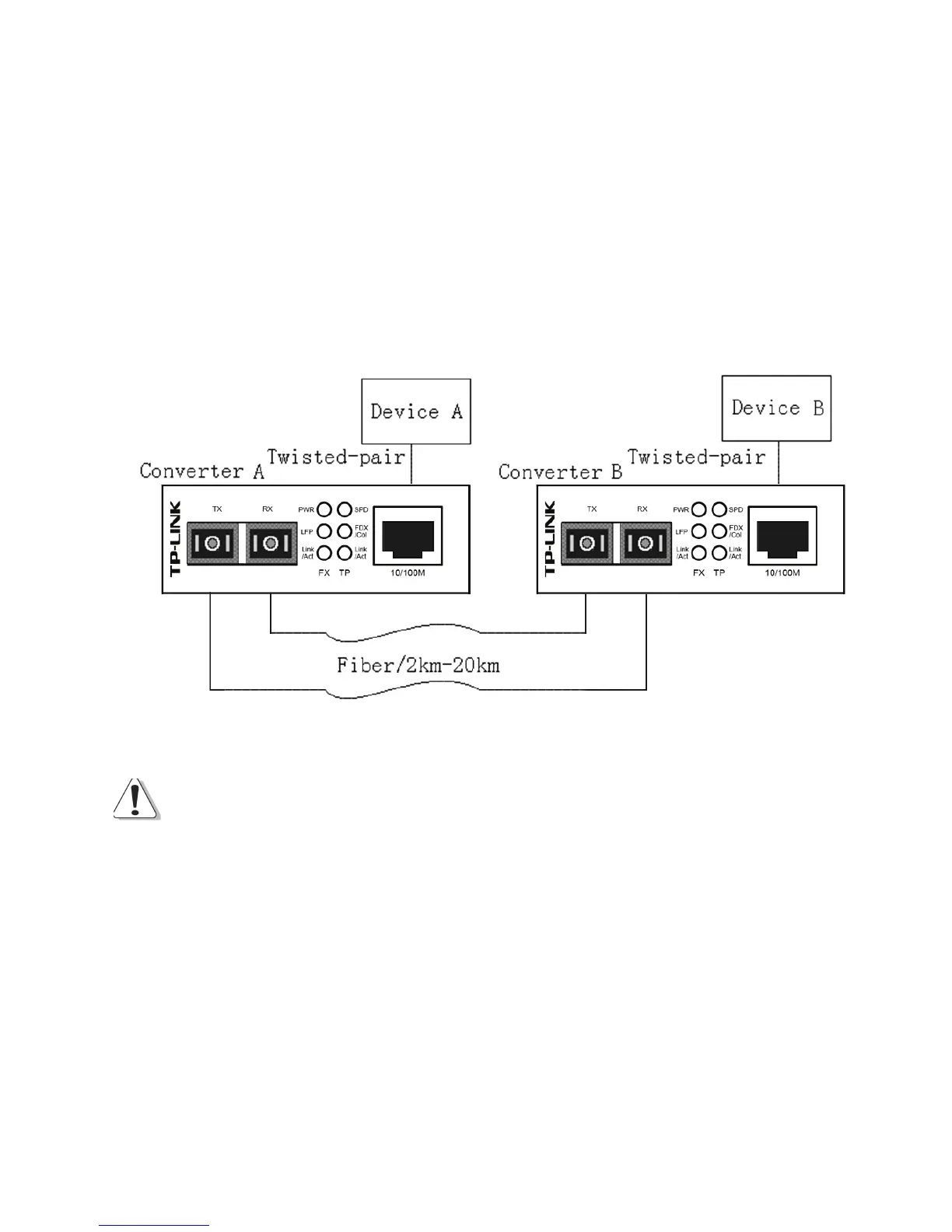

1. The SC fiber connector of MC100CM transmits/receives data by
1310nm short wave laser on multi-mode fiber.
2. The SC fiber connector of MC110CS transmits/receives data by
1310nm short wave laser on single-mode fiber.
Transmits and receives data on different fibers
Note:
You have to use either two MC100CM connectors or two MC110CS
connectors to cooperate.
2.2 WDM Fast Ethernet Media Converter
1. The SC fiber connector of MC111CS transmits data by 1550nm
short wave laser while receives data by 1310nm short wave laser
on one single-mode fiber.
9

TP-Link MC110CS Specifications

General

I/O ports	1x 100M SC 1x 100M RJ45
Full duplex	Yes
Dimensions (WxDxH)	94.5 x 73 x 27 mm
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Cabling technology	UTP 3, 4, 5e, 5
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Ethernet interface type	Gigabit Ethernet
Maximum data transfer rate	1000 Mbit/s
Fiber ethernet cabling technology	100BASE-FX
Internal	No
Certification	FCC, CE
Product color	Black
LED indicators	Power, Speed
Wavelength	1310 nm
Maximum transfer distance	20000 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power consumption (max)	1.52 W
Package depth	204 mm
Package width	165 mm
Package height	65 mm
Package weight	380 g

Weight and Dimensions

Depth	73 mm
Width	94.5 mm
Height	27 mm
