TP-Link Omada OC200 User Manual

111
6.5 Test the Network
To ensure that the employees and guests can surf the internet via the wireless network,
we can use a client device, such as a telephone, to test whether the SSIDs are working
normally.
• To test the SSIDs for the employees, follow the steps below:
1 ) Enable the Wi-Fi feature of the client device.
2 ) Choose the SSID “employee_2.4GHz“ or “employee_5GHz“ among the detected
SSIDs.
3 ) Enter the password “restaurant123abc“ to join the wireless network.
4 ) Check whether internet websites can be visited successfully.
• To test the SSIDs for the guests, follow the steps below:
1 ) Enable the Wi-Fi feature of the client device.
2 ) Choose the SSID “guest_2.4GHz“ or “guest_5GHz“ among the detected SSIDs.

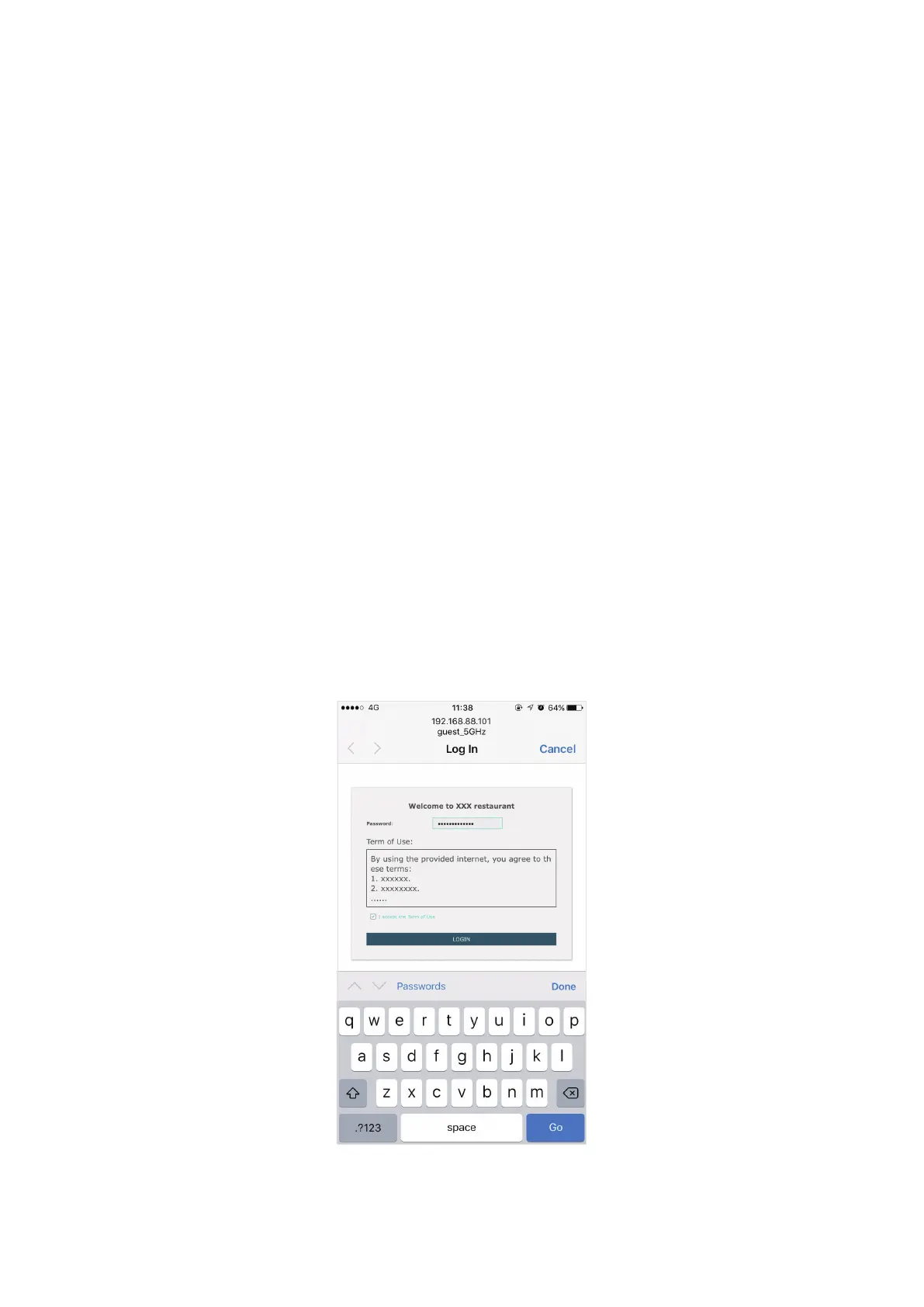

3 ) The default web browser on the device will pop up and the authentication page will
appear. Enter the password “restaurant123”, check the box to accept the term of
use, and click the LOGIN button.

TP-Link Omada OC200 Specifications

General

Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10, 100 Mbit/s
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Input current	1 A
DC input voltage	5 V
Power over Ethernet (PoE)	Yes
Power consumption (typical)	5 W
Flash memory	4000 MB
Internal memory	1024 MB
Processor frequency	1000 MHz
Control display unit	No
Internal memory type	DDR3
Management platform	L3
Security algorithms	SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CE, FCC, RoHS
Product color	Black
Cables included	LAN (RJ-45)
Compatible operating systems	Windows10, 8, 7, Vista, XP; MAC OS; NetWare, UNIX; Linux
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	128 mm
Package width	135 mm
Package height	70 mm
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	98 mm
Width	99.8 mm
Height	25 mm
