TP-Link Omada OC200 User Manual

36
Configure Portal
Three portal authentication types are available: No Authentication , Local Password
and External RADIUS Server . The following sections introduce how to configure each
authentication type.
• No Authentication
With this authentication type configured, clients can pass the authentication and access
the network without providing any login information. They only need to accept the term of
use on the authentication page.

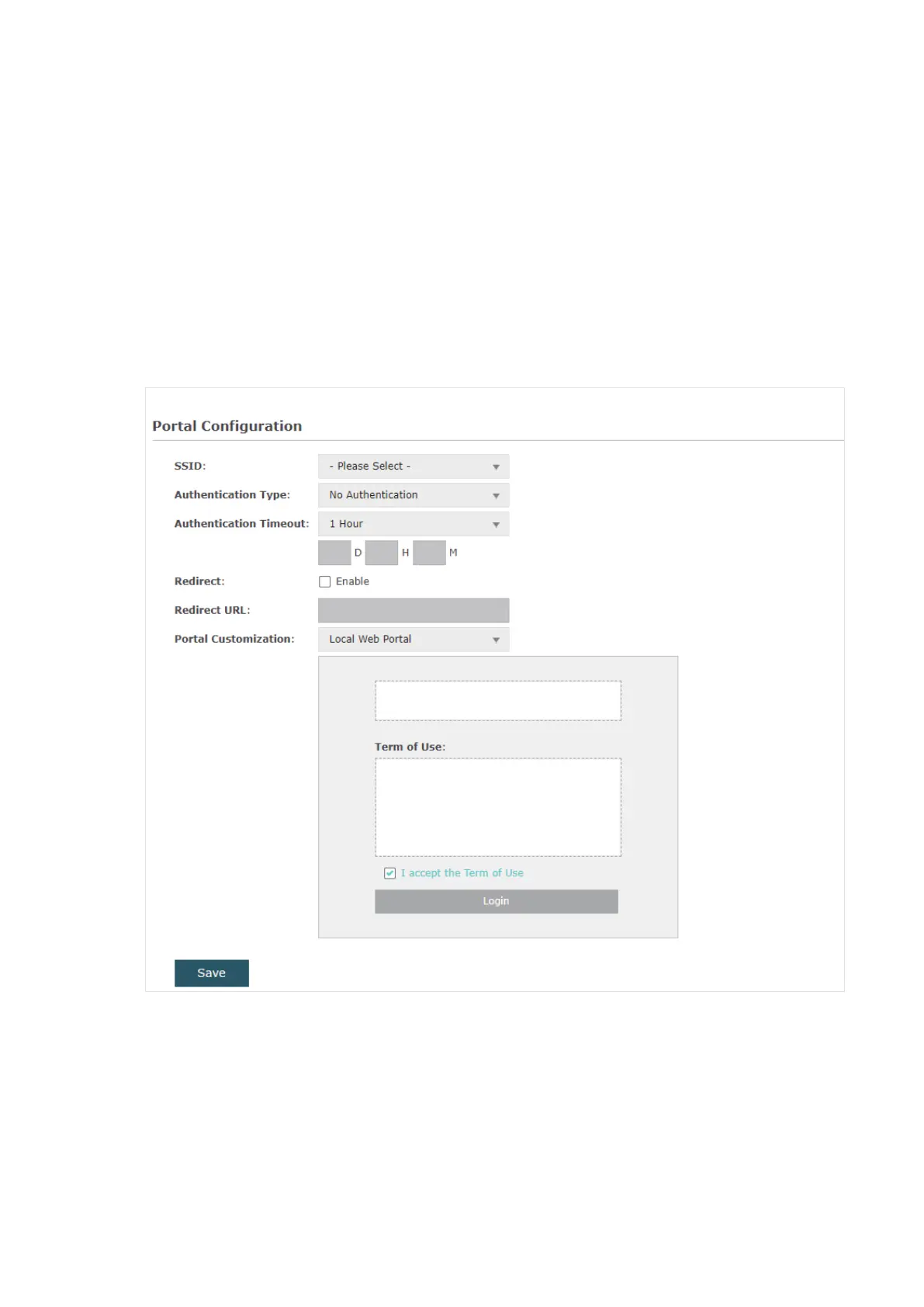

Follow the steps below to configure No Authentication as the portal authentication type:
1. Select the SSID on which the portal will take effect.
2. Select No Authentication as the authentication type.
3. Configure the relevant parameters as the following table shows:

TP-Link Omada OC200 Specifications

General

Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10, 100 Mbit/s
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Input current	1 A
DC input voltage	5 V
Power over Ethernet (PoE)	Yes
Power consumption (typical)	5 W
Flash memory	4000 MB
Internal memory	1024 MB
Processor frequency	1000 MHz
Control display unit	No
Internal memory type	DDR3
Management platform	L3
Security algorithms	SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CE, FCC, RoHS
Product color	Black
Cables included	LAN (RJ-45)
Compatible operating systems	Windows10, 8, 7, Vista, XP; MAC OS; NetWare, UNIX; Linux
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	128 mm
Package width	135 mm
Package height	70 mm
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	98 mm
Width	99.8 mm
Height	25 mm
