TP-Link TD-8840 User Manual

TD-8840 ADSL2+ Modem Router User Guide
33

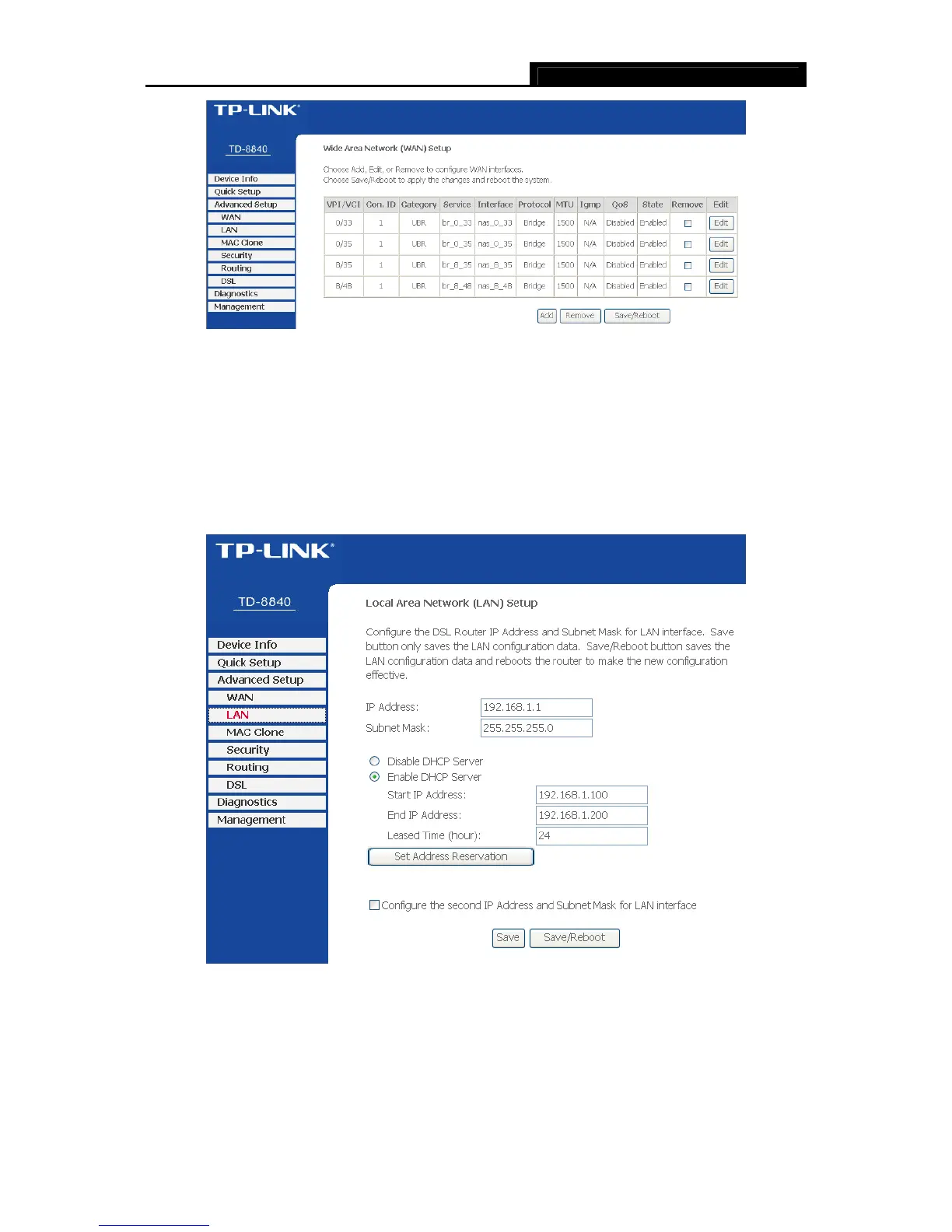

Figure 4-20
)
Note:
All of the above setup is under windows XP OS.
4.3.2 LAN
Choose “Advanced Setup→LAN” menu, and you can see and configure the Local Area Network
(LAN) parameters in the screen as shown in Figure 4-21.
Figure 4-21
¾ IP Address - Enter an IP address for the Router. Then you can access the Web-based Utility
via this IP address. The default setting is 192.168.1.1.
¾ Subnet Mask - An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.

TP-Link TD-8840 Specifications

General

Brand	TP-Link
Model	TD-8840
Category	Network Router
Language	English
