TP-Link TL-SG1024DE User Manual

User Guide 32
Switching Configuration Examples

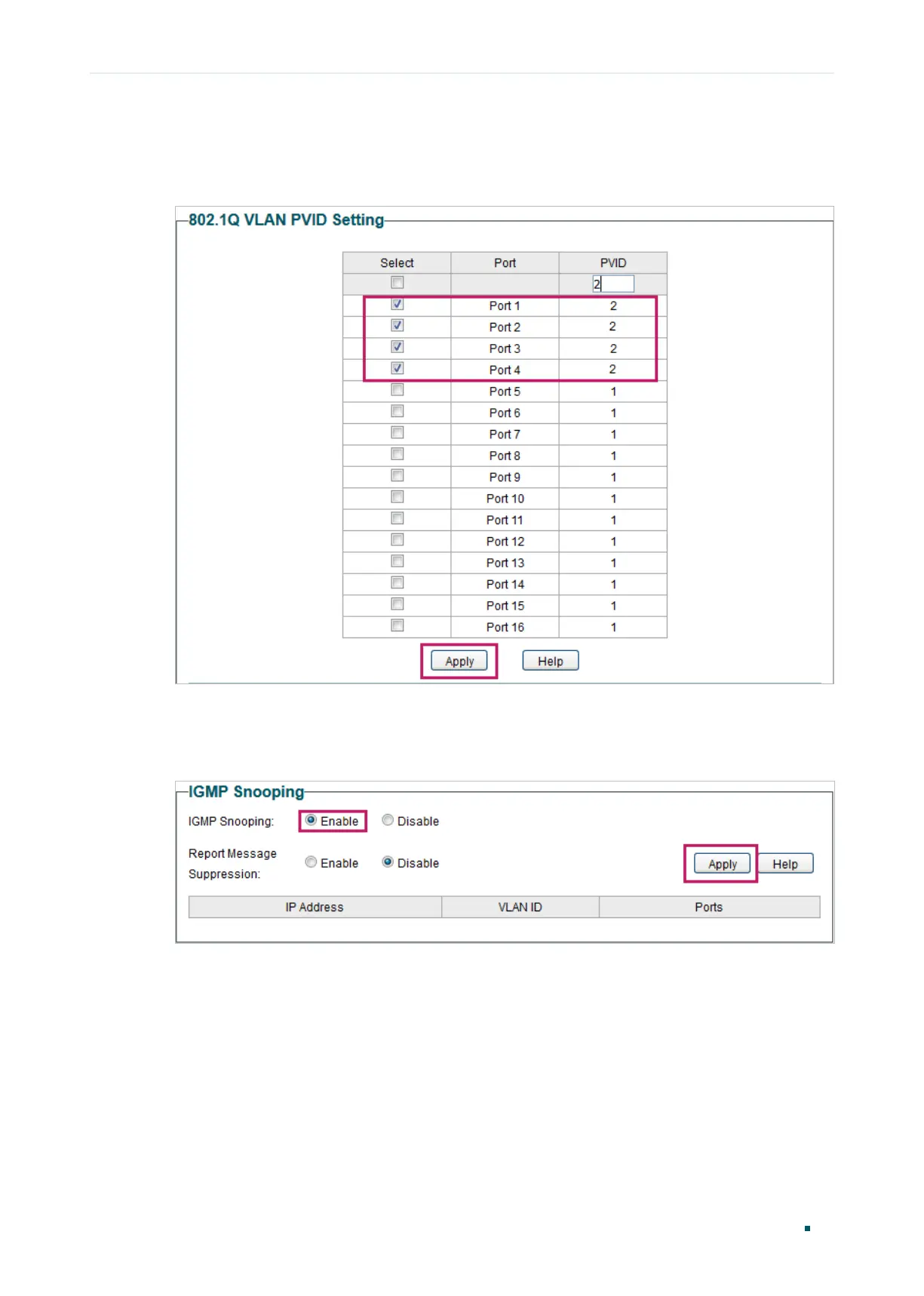

2) Choose the menu VLAN > 802.1Q PVID Setting to load the following page. Select port 1,
port 2, port 3 and port 4, and specify the PVID as 2 for the ports. Click Apply.
Figure 5-3 Configuring 802.1Q PVID
3) Choose the menu Switching > IGMP Snooping to load the following page. Enable IGMP
snooping. Click Apply.
Figure 5-4 Configuring IGMP Snooping
5.2 Example for Configuring LAG
5.2.1 Network Requirements
As shown below, hosts and servers are connected to Switch A and Switch B, and heavy
traffic is transmitted between the two switches. To achieve high speed and reliability of
data transmission, you can bundle multiple physical ports into one logical interface. In this
case, we bundle port 1, port 2 and port 3 of both switches into one logical interface.

TP-Link TL-SG1024DE Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Number of VLANs	32
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Virtual LAN features	Port-based VLAN, Tagged VLAN
Cable types supported	Cat3, Cat5, Cat6
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Jumbo frames	9216
Forwarding rate	35.7 Mpps
Number of queues	4
MAC address table	8000 entries
Packet buffer memory	0.512 MB
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	14.86 W
Stackable	-
Form factor	1U
Certification	FCC, CE, RoHS
Product color	Black
Heat dissipation	114.37 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Package type	Box
Package depth	400 mm
Package width	250 mm
Package height	80 mm
Package weight	2020 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
