Logging Into the Switch
To configure your switch through a web browser on your PC, follow these steps:
1) Connect your switch to the network and connect your PC to the switch.
2) Find out the IP address of the switch.

By default, the switch receives an IP address from a DHCP server (or a router that
functions as a DHCP server) in your network. You can find out this IP address on the
DHCP server.

If the switch cannot receive an IP address from a DHCP server, it uses the static IP
address of 192.168.0.1, with a subnet mask of 255.255.255.0.
3) Configure IP address on your PC to make sure the switch and PC are in the same
subnet.

If the switch uses an IP address assigned by a DHCP server, set your PC to obtain an
IP address automatically from the DHCP server.

If the switch uses the static IP address of 192.168.0.1, configure your PC’s
IP address as 192.168.0.x (”x” ranges from 2 to 254), and subnet mask as
255.255.255.0.
4) Launch a web browser on your PC. The supported web browsers include, but are not
limited to, the following types:

IE 8.0, 9.0, 10.0, 11.0

Firefox 26.0, 27.0

Chrome 32.0, 33.0
5) In the address bar of the web browser, enter the IP address of the switch. Here we
suppose the switch uses the static IP address 192.168.0.1.

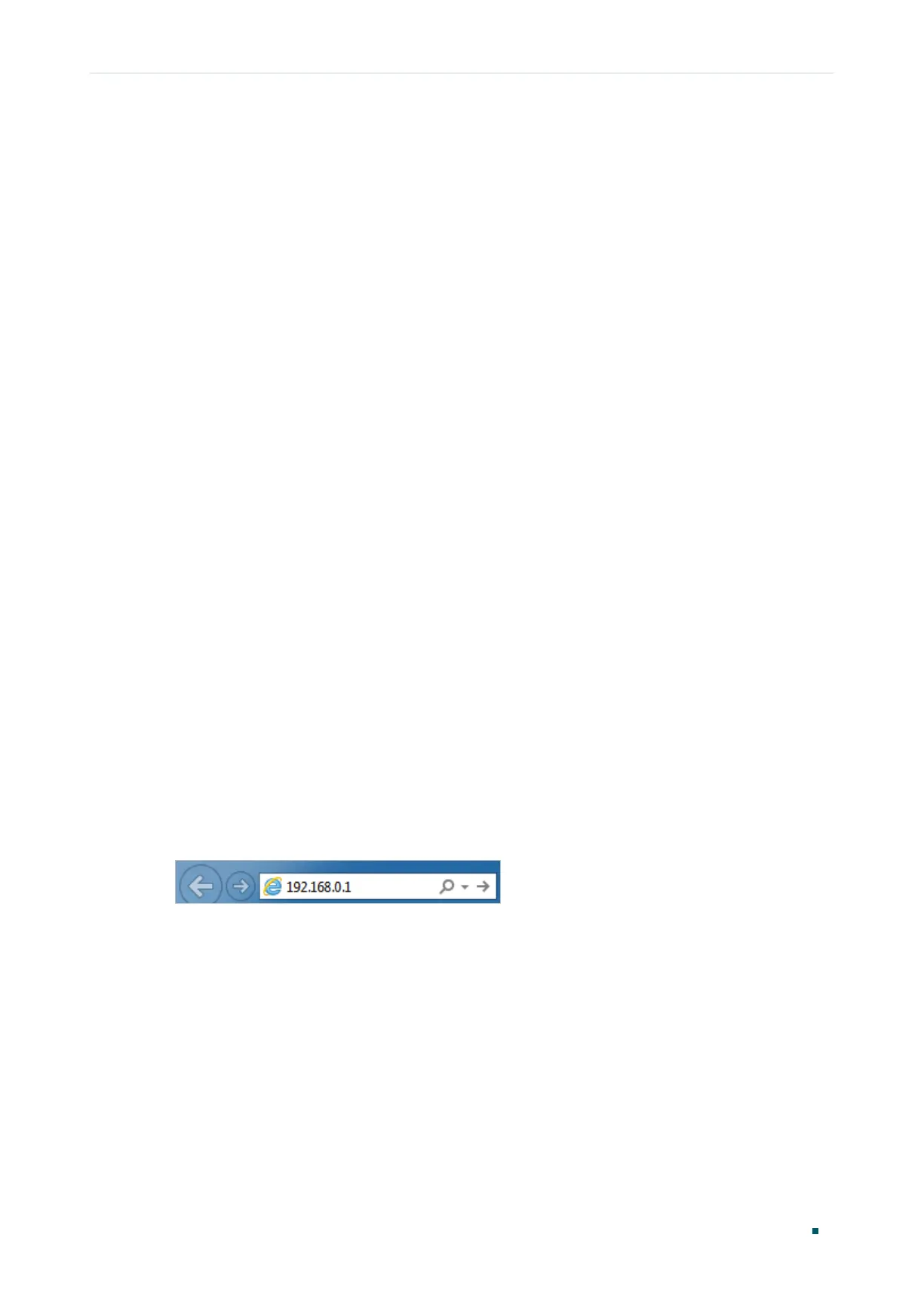

Figure 2-1 Entering the IP Addresss of the Switch in the Browser
6) Enter the username and password in the pop-up login window. Enter admin for both
username and password in lower case letters.

TP-Link TL-SG1024DE Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Number of VLANs	32
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Virtual LAN features	Port-based VLAN, Tagged VLAN
Cable types supported	Cat3, Cat5, Cat6
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Jumbo frames	9216
Forwarding rate	35.7 Mpps
Number of queues	4
MAC address table	8000 entries
Packet buffer memory	0.512 MB
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	14.86 W
Stackable	-
Form factor	1U
Certification	FCC, CE, RoHS
Product color	Black
Heat dissipation	114.37 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Package type	Box
Package depth	400 mm
Package width	250 mm
Package height	80 mm
Package weight	2020 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
