TP-Link TL-SG1024DE User Manual

Monitoring Testing Cables
User Guide
41
4
Testing Cables
Choose the menu Monitoring > Cable Test to load the following page.

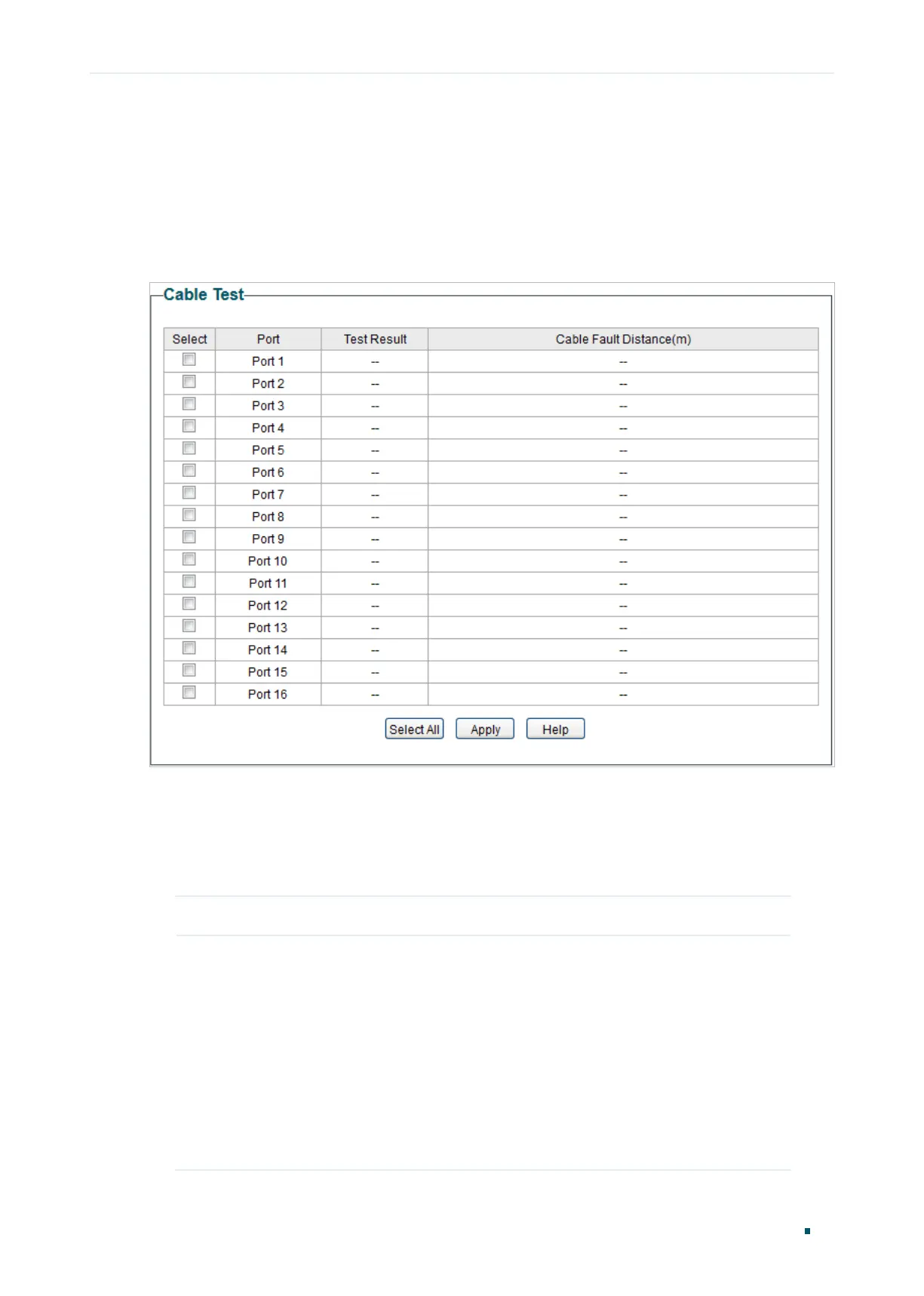

Figure 4-1 Testing Cables
Follow these steps to diagnose the cable:
1) Select your desired ports for test. Click Apply to test cables connected to the selected
ports.
2) Check the test results in the table.
Port Displays the port number.
Test Result Displays the cable status. Test results include normal, close (or short),
open and crosstalk.
Normal : The cable is connected normally.
Close (or short): A short circuit is being caused by abnormal contact of
wires in the cable.
Open: No device is connected to the other end or the connection is
broken.
Crosstalk: Impedance mismatch due to the poor quality of the cable.

TP-Link TL-SG1024DE Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Number of VLANs	32
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Virtual LAN features	Port-based VLAN, Tagged VLAN
Cable types supported	Cat3, Cat5, Cat6
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Jumbo frames	9216
Forwarding rate	35.7 Mpps
Number of queues	4
MAC address table	8000 entries
Packet buffer memory	0.512 MB
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	14.86 W
Stackable	-
Form factor	1U
Certification	FCC, CE, RoHS
Product color	Black
Heat dissipation	114.37 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Package type	Box
Package depth	400 mm
Package width	250 mm
Package height	80 mm
Package weight	2020 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
