Configuring QoS Configuring Basic QoS
User Guide
63
2.1 Configuring QoS in Port Based Mode
Choose the menu QoS > QoS Basic to load the following page.

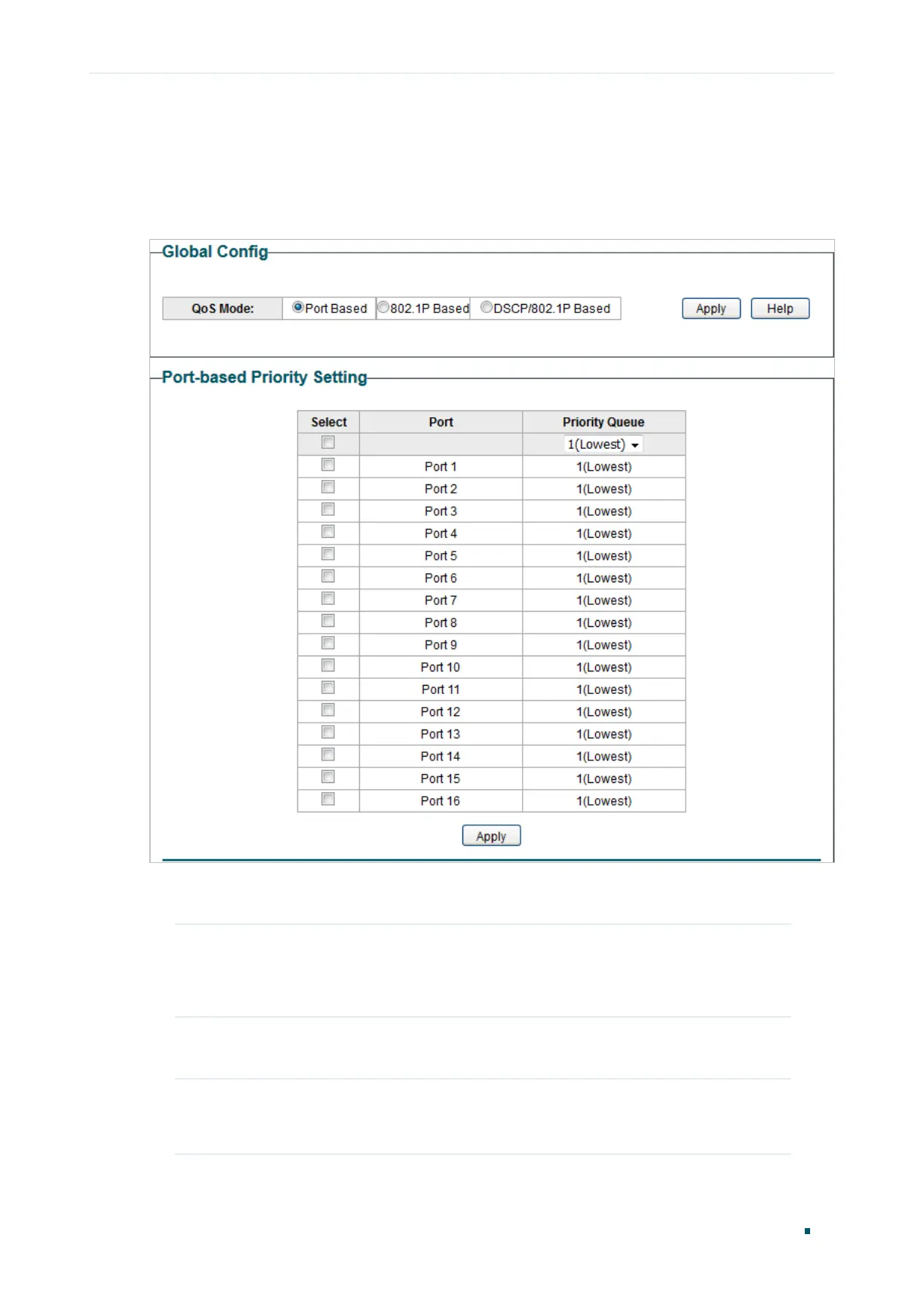

Figure 2-1 Configuring Basic QoS in Port Based Mode
Follow these steps to configure QoS in port based mode:
1) In the Global Config section, select QoS mode as Port Based. Click Apply.
QoS Mode Select the QoS mode.
Port Based: In port based mode, the switch prioritizes packets according
to their ingress ports, regardless of the packet field or type.
2) In the Port-based Priority Setting section, select the desired ports and specify the
priority queue for the ports. Click Apply.
Priority Queue Specify the priority queue that the packets from the port are mapped to.
The priorities are labeled as 1, 2, 3 and 4. Among them, the bigger value
means the higher priority.

TP-Link TL-SG1024DE Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Number of VLANs	32
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Virtual LAN features	Port-based VLAN, Tagged VLAN
Cable types supported	Cat3, Cat5, Cat6
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Jumbo frames	9216
Forwarding rate	35.7 Mpps
Number of queues	4
MAC address table	8000 entries
Packet buffer memory	0.512 MB
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	14.86 W
Stackable	-
Form factor	1U
Certification	FCC, CE, RoHS
Product color	Black
Heat dissipation	114.37 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Package type	Box
Package depth	400 mm
Package width	250 mm
Package height	80 mm
Package weight	2020 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
