TL-WN727N 150Mbps Wireless N USB Adapter
13

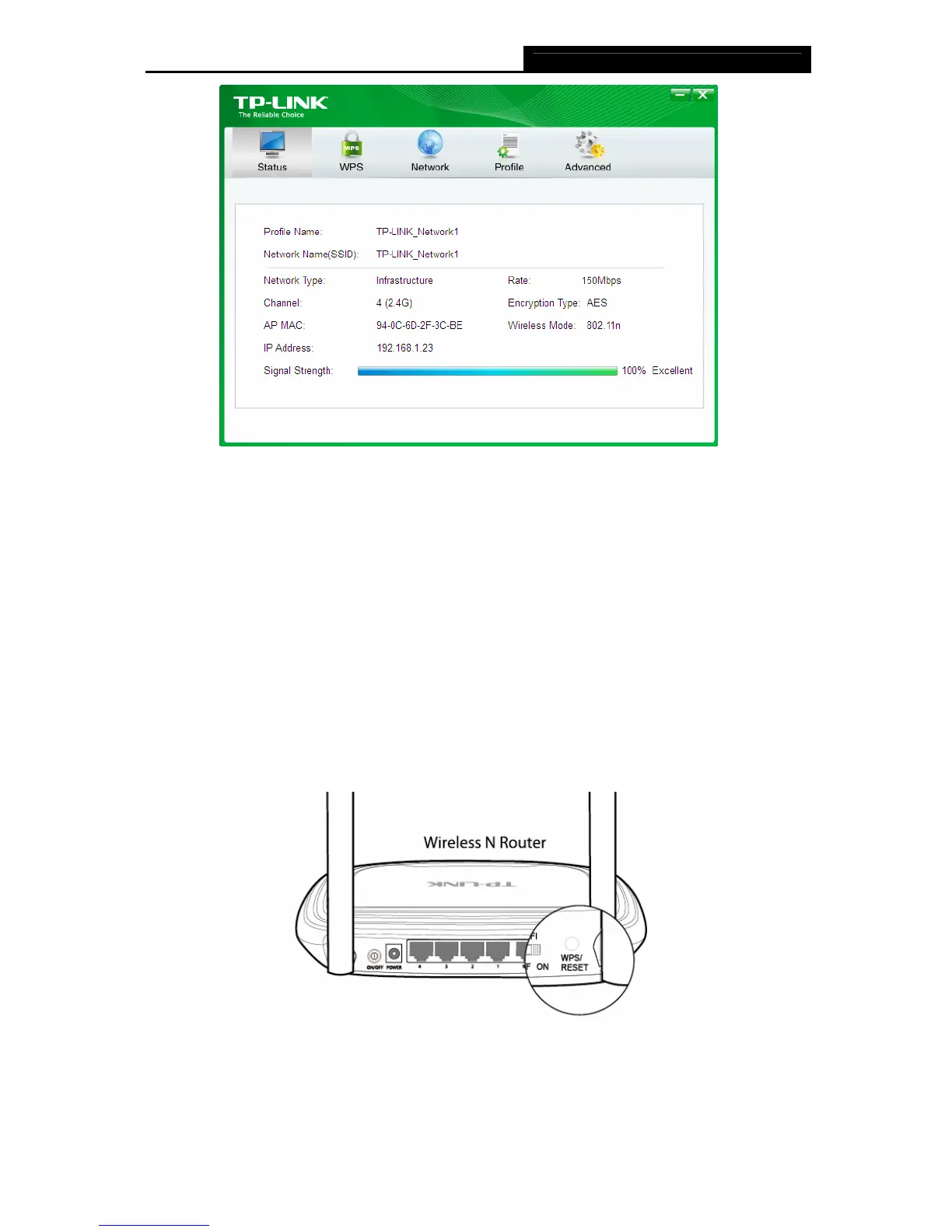

Figure 3-8
3.2 To connect using WPS
WPS (Wi-Fi Protected Setup) function allows you to add a new wireless device to an existing
network quickly.
If the wireless router supports QSS or Wi-Fi Protected Setup (WPS), you can establish a
wireless connection between wireless card and router using either Push Button Configuration
(PBC) method or PIN method.
3.2.1 PBC (Push Button Configuration) method
1. Press the WPS/RESET button for 2~3 seconds on the back panel of the router. Here takes
router TL-WR841ND for example.
2. Press the WPS button on the adapter. There are two ways:
¾ Method One：
Press and hold the WPS button on the adapter directly for 2~3 seconds until
7Figure 3-11
appears.

TP-Link TL-WN727N Specifications

General

Wi-Fi	Yes
Modulation	16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Wi-Fi band	Single-band (2.4 GHz)
Frequency range	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	150 Mbit/s
Interface	WLAN
Connectivity technology	Wireless
Chipset	Ralink
Internal	No
Certification	CE, FCC
Component for	PC/Laptop
Product color	Black, White
Receiver sensitivity	130M: -68dBm@10% PER\\r 108M: -68dBm@10% PER\\r 54M: -68dBm@10% PER\\r 11M: -85dBm@8% PER\\r 6M: -88dBm@10% PER\\r 1M: -90dBm@8% PER
Compatible operating systems	Win 98SE, ME, 2000, XP 32 bit/64 bit, Vista 32 bit/64 bit, 7 32 bit/64 bit
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	24 mm
Width	86.5 mm
Height	10 mm
