TP-Link TL-WN727N User Manual

TL-WN727N 150Mbps Wireless N USB Adapter
18
3.3 To connect using Windows built-in wireless utility
3.3.1 In Windows XP
Windows XP users may use the built-in wireless utility. Follow the steps below.

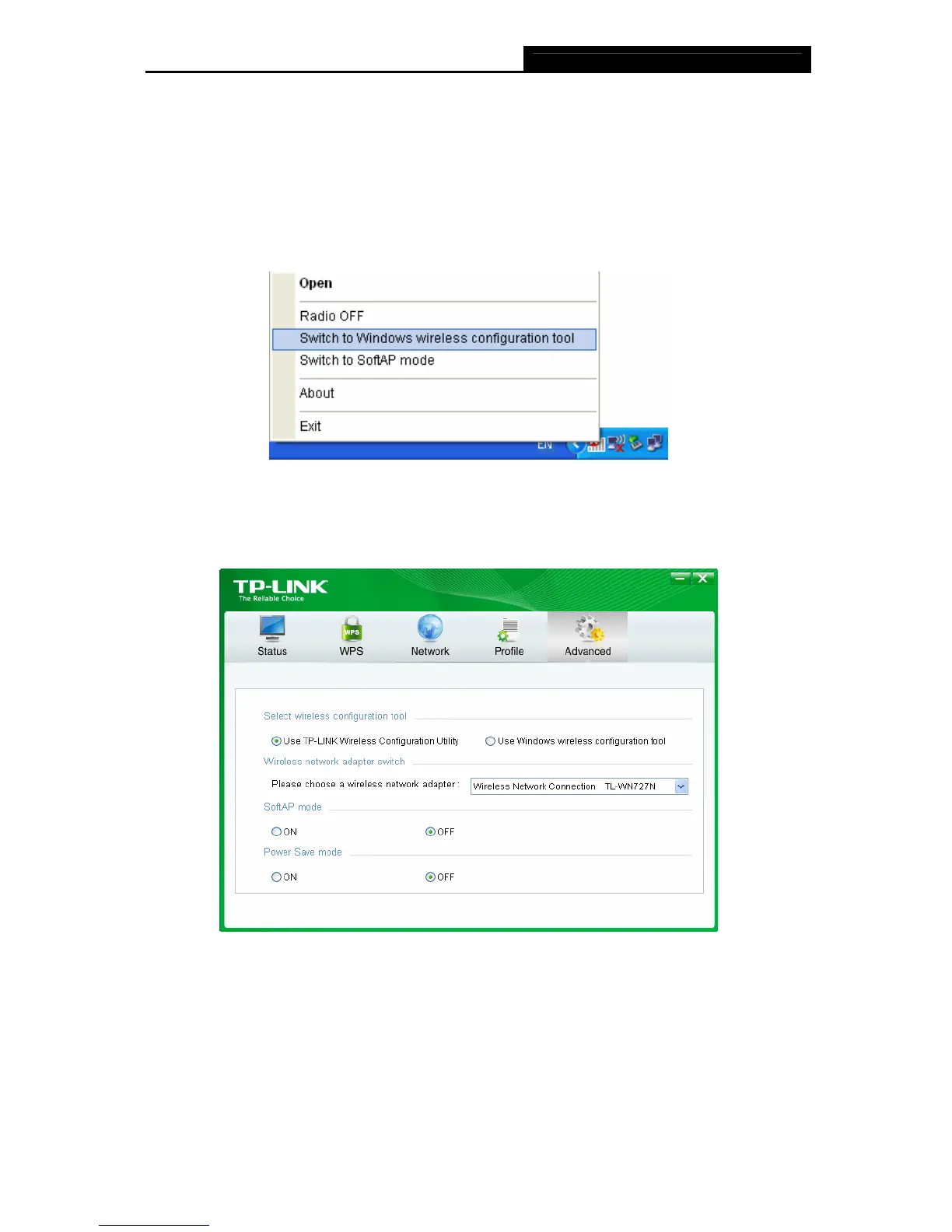

1. Right-click on the utility icon in your system tray (lower-right corner). Select Switch to
Windows wireless configuration tool.
Figure 3-19
Or double-click the utility icon to load the utility configuration page. Click Advanced in the
tools section and then select Use Windows wireless configuration tool in the figure
shown below. Click OK when Figure 3-21 appears to continue.
Figure 3-20

TP-Link TL-WN727N Specifications

General

Wi-Fi	Yes
Modulation	16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Wi-Fi band	Single-band (2.4 GHz)
Frequency range	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	150 Mbit/s
Interface	WLAN
Connectivity technology	Wireless
Chipset	Ralink
Internal	No
Certification	CE, FCC
Component for	PC/Laptop
Product color	Black, White
Receiver sensitivity	130M: -68dBm@10% PER\\r 108M: -68dBm@10% PER\\r 54M: -68dBm@10% PER\\r 11M: -85dBm@8% PER\\r 6M: -88dBm@10% PER\\r 1M: -90dBm@8% PER
Compatible operating systems	Win 98SE, ME, 2000, XP 32 bit/64 bit, Vista 32 bit/64 bit, 7 32 bit/64 bit
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	24 mm
Width	86.5 mm
Height	10 mm
