24 BAS-SVX44C-EN
Configuration Option Setup
This section provides information about changing system configurations. For reference, Ta bl e 7, p. 25,
lists the Configuration Option Numbers, corresponding values, and descriptions.
NOTICE
Adverse Control System Behavior!
Improper configuration setup could cause unwanted, possibly adverse control system behavior.
Be sure to configure the thermostat according to your system type.
To change the installation configuration:
15. Apply electrical power to the thermostat.
16. Refer to Tab le 7, p. 25 to determine the correct configuration options. For convenience, either print out
this table or write down the selections and other notes listed.
17. Activate Configuration Option Setup mode by:
m WARNING
Live Electrical Components!
The circuit board is energized. Have a qualified licensed electrician or other individual who has
been properly trained in handling live electrical components perform this step. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in
death or serious injury.
a. Removing the thermostat cover as shown in the section,“Mounting the Backplate,” p. 11.
b. Pressing and holding the Configuration button for 3 seconds. The configuration wrench icon
displays solid along with the configuration option number and value (refer to Figure 18
below).

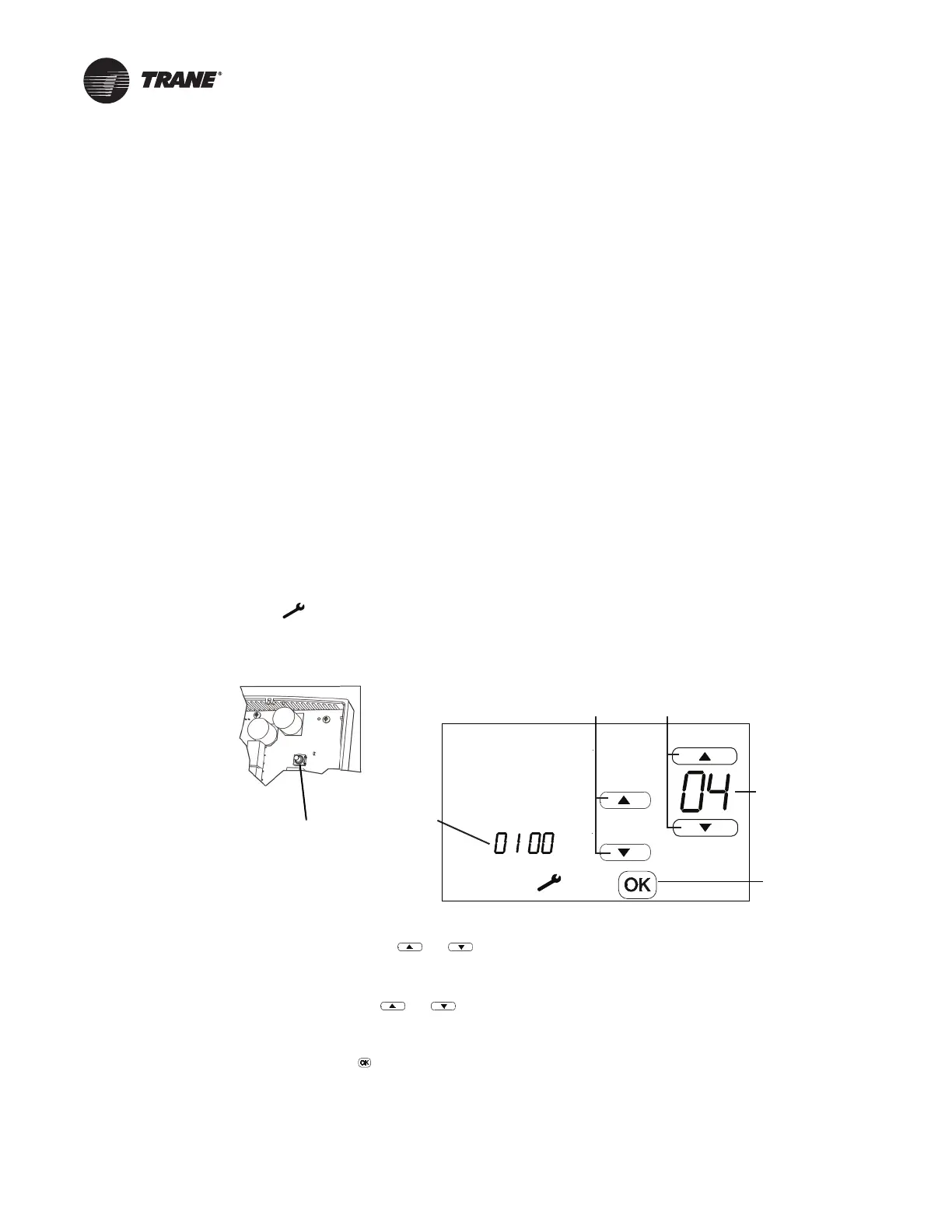

Figure 18. Configuration button and configuration mode display
Note: Configuration mode automatically ends if no buttons are pressed for 10 minutes.
18. Next, press the center or (as shown) to increment or decrement the Option Number.
Note: Changing the Option Number with the up/down arrows will also Save the Option Value. In addition, the
OK will increment the Option Number and Save the Option Value.
19. Press the right side or (as shown) to increment or decrement the Option Value.
20. To Save settings, exit Configuration Mode and return to the Home screen:
• Push the configuration button momentarily as shown in Figure 18
• Touch and hold for 2 seconds
• A 10-minute time out after the last touch in Configuration Mode
Configuration
Button
Option
Number
Option
Value
Save to move to the next
higher or previous lower
Option Number
Increment or Decrement the
Option Value
Save and move to
next higher Option
Number or hold for 2
seconds to save and
exit Configuration
Mode
