Controls Interface
Reports Screen

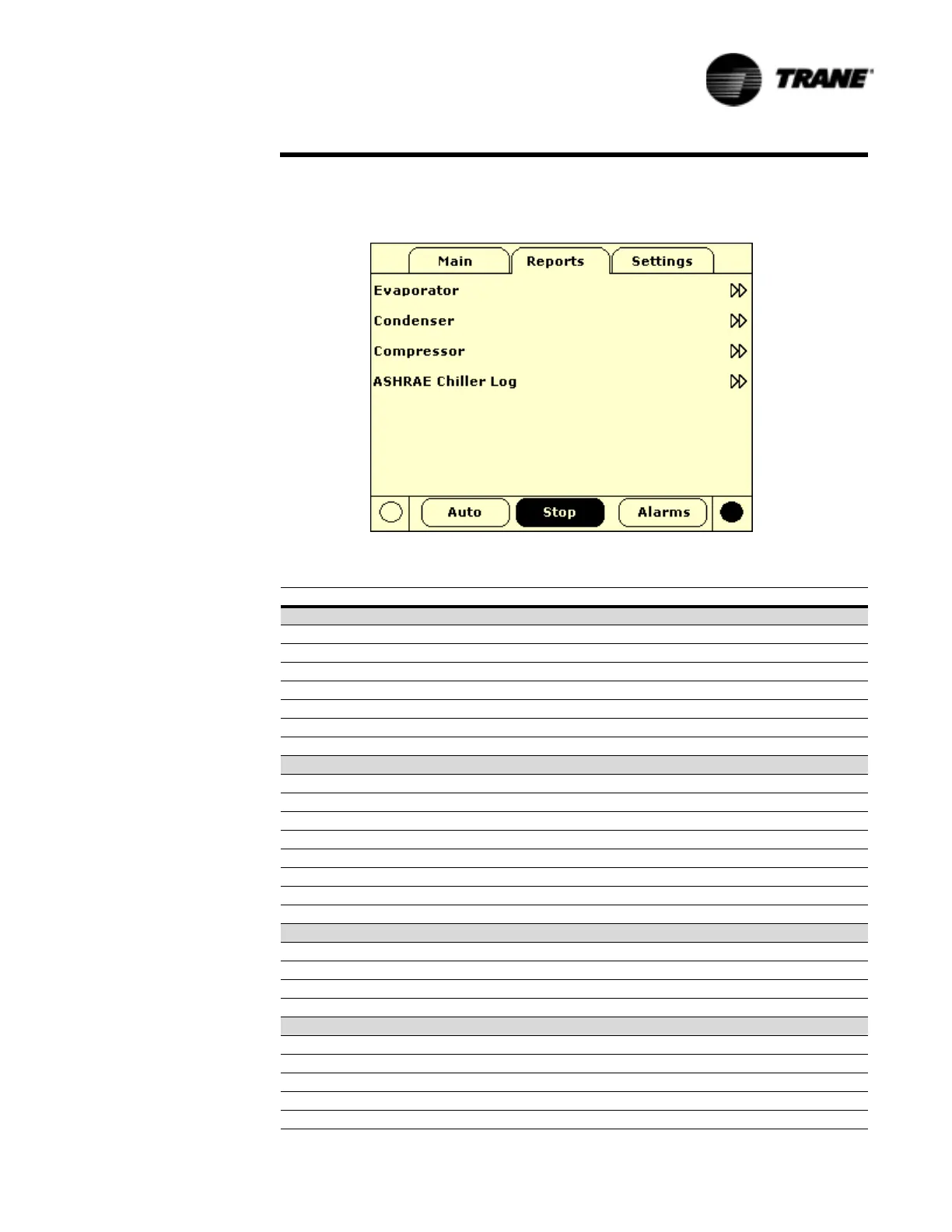

The Reports tab will allow a user to select from a list of possible reports headings.
Each report will generate a list of status items as defined in the following tables.
Table 20 Reports Screens
Description Units Resolution
Evaporator
Evap Entering Water Temp Temperature + or - XXX.X
Evap Leaving Water Temp Temperature + or - XXX.X
Evap Water Flow Switch Status (Flow, No Flow)
Circuit Evaporator
Evap Sat Rfgt Temp Temperature + or - XXX.X
Suction Pressure Temperature + or - XXX.X
Evap Approach Temp Temperature + or - XXX.X
Condenser
Cond Entering Water Temp Temperature + or - XXX.X
Cond Leaving Water Temp Temperature + or - XXX.X
Cond Water Flow Switch Status Enumeration (Flow, No Flow)
Outdoor Air Temperature Temperature + or - XXX.X
Circuit Evaporator
Cond Sat Rfgt Temp Temperature + or - XXX.X
Discharge Pressure Temperature + or - XXX.X
Cond Approach Temp Temperature + or - XXX.X
Compressor
Chiller Running Time hr:min XXXX:XX
Circuit Compressor
Compressor Starts Integer XXXX
Compressor Running Time: hr:min XXXX:XX
ASHRAE Chiller Log
Current Time/Date Date / Time XX:XX mmm dd, yyyy
Operating Mode Text
Active Chilled Water Setpoint Temperature XXX.X
Evap Entering Water Temp Temperature XXX.X
Evap Leaving Water Temp Temperature XXX.X
