CGWF-SVX01A-EN 7
General Information
Literature Change History
New manual describes the installation, operation and maintenance of CGWF/CCAF
Units.
Unit Identification
When the unit arrives, compare all nameplate data with ordering, submittal, and
shipping information. A typical unit nameplate is shown in Figure 1.
Nameplates
Unit Nameplates
The CGWF/CCAF unit nameplate is mounted on the control panel door. The Unit
nameplate provides the following information:
• Unit model number.
• Unit serial number.
• Identifies unit electrical requirements.
• Lists correct operation charge of R-22 and refrigerant oil.
• Lists unit test pressures and maximum operating pressures.
• Identifies installation, operation and maintenance literature.
• Lists the drawing numbers for the unit wiring diagrams.
Compressor Nameplate
The nameplate for the Scroll compressor is mounted on the compressor housing near
the motor terminal box.
Evaporator Nameplate
The evaporator ASME nameplate is mounted on the top of the evaporator supply-end
tube sheet. The word “nameplate” is applied to the insulation just above the
nameplate. To view the evaporator nameplate, remove the tape over the area and
spread the insulation.

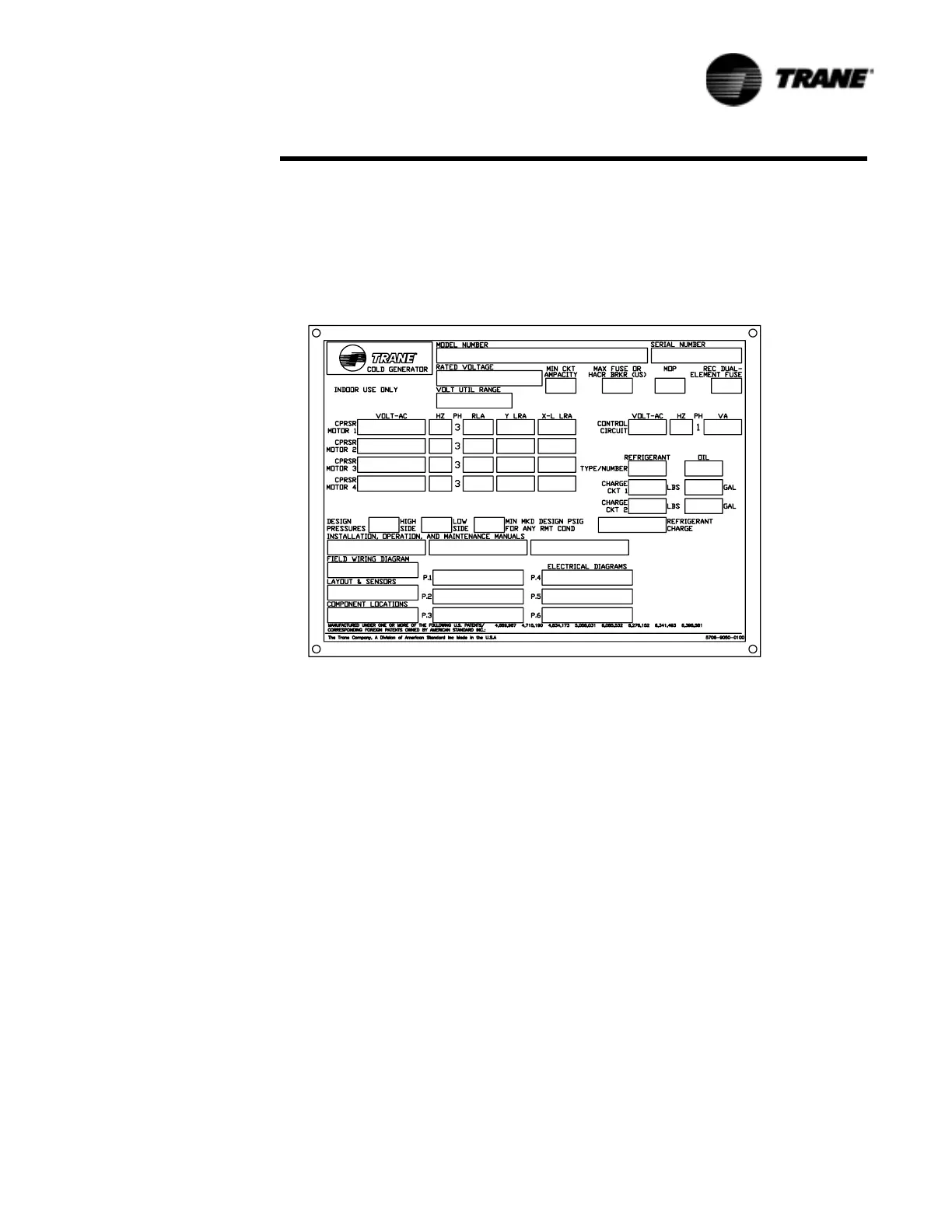

Figure 1 Unit Nameplate
