Plumbing
28 AFDK-SVU01C-EN
Water-to-Water Heat Exchanger
Figure 13 shows the piping diagram of the heat-exchanger
assembly. Figure 14, p. 29 shows the dimensions of the
heat exchange
r assembly as well as the locations of piping
and electrical connections.

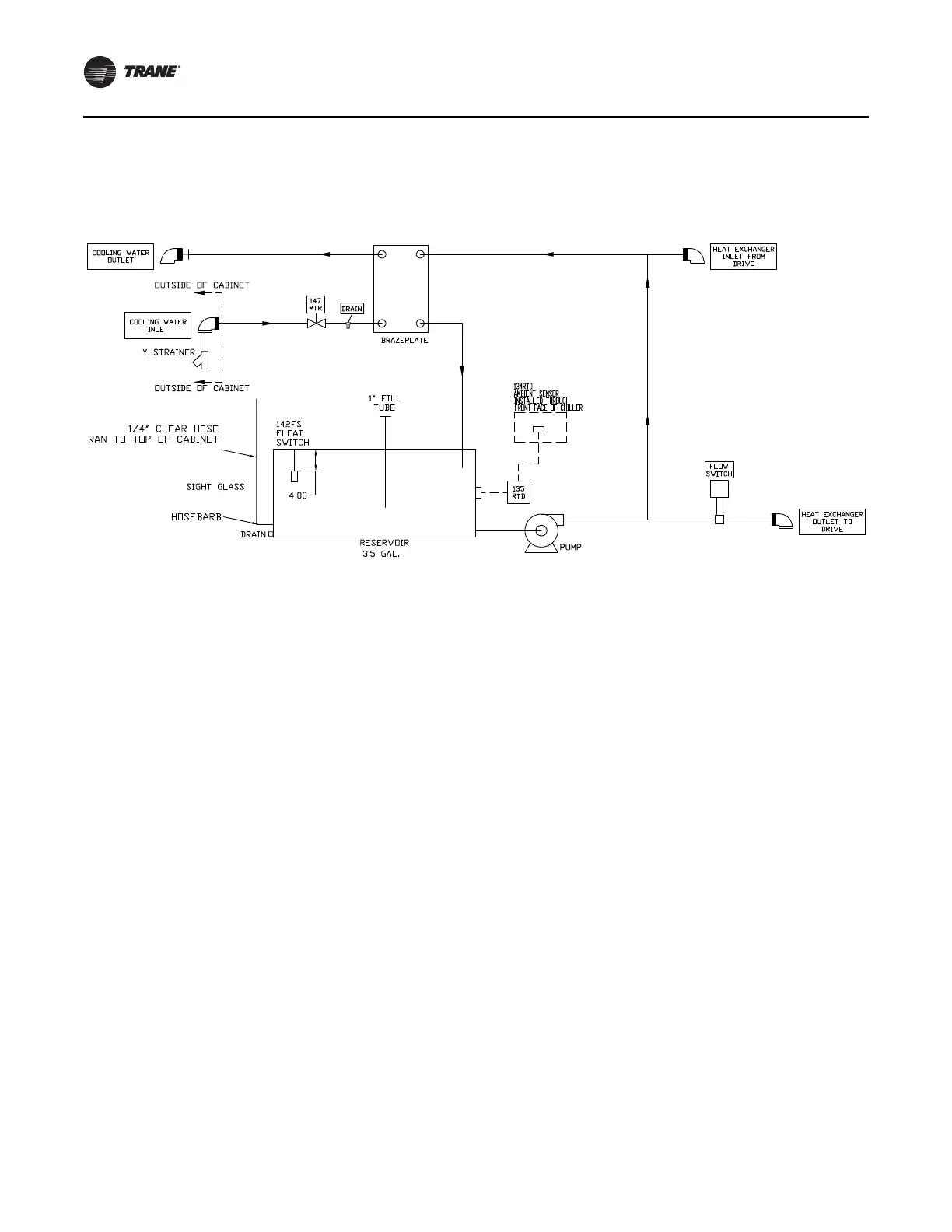

Figure 13. Water-to-water heat
excha
nger piping diagram
(a)
(a)Material courtesy of DIMPLEX Thermal Solutions.
