Trane GAM5 Series User Manual

13

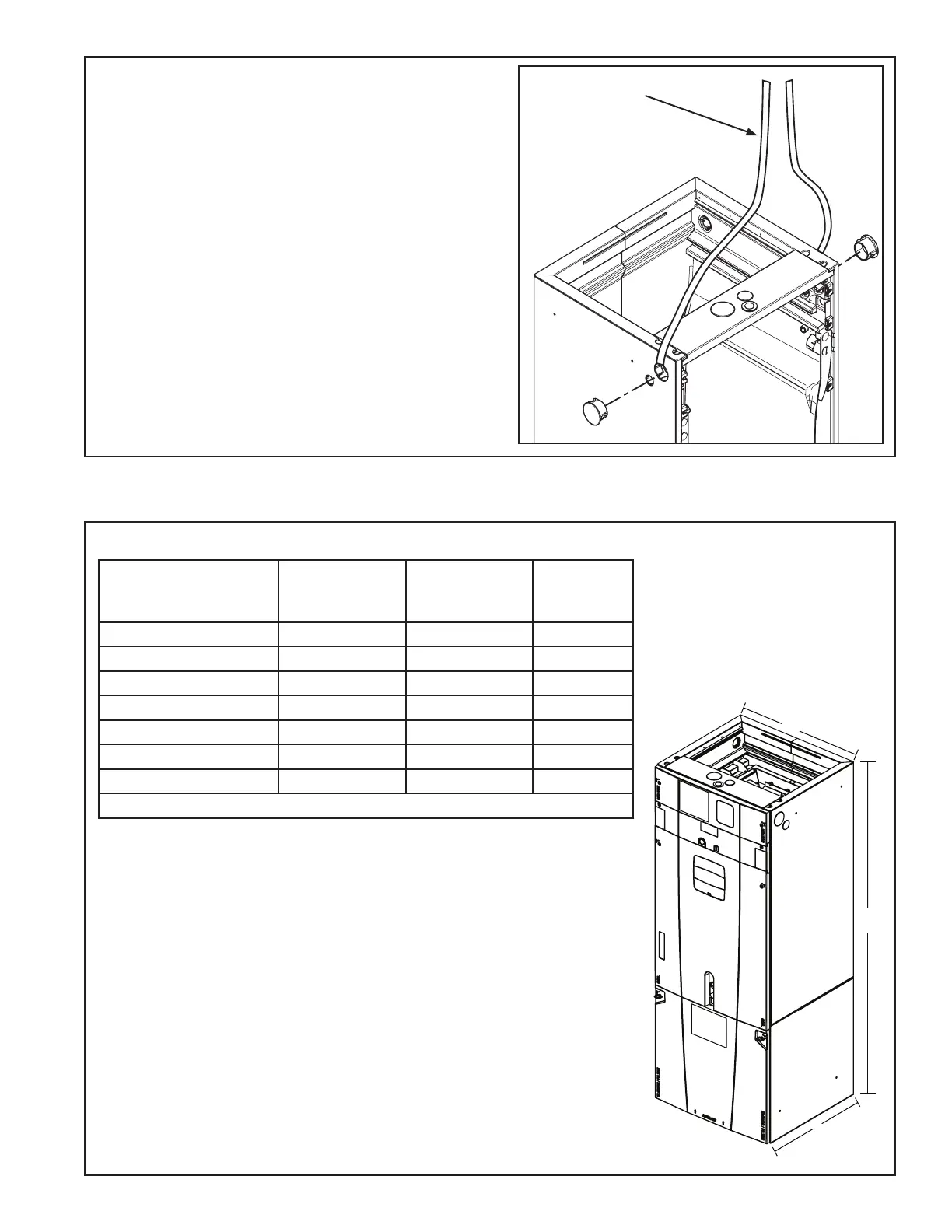

2. Slip a flexible strap through both of the side
electrical conduit entry points and use the flex-
ible strap to lift and carry the coil section of the
unit.
Flexible strap
Section 6. Unit Location Considerations
6.1 Unit Dimensions and Weight
Model
Number
H x D x W
in.
*Blower
Compartment
in.
Unit
Net Weight
lbs.
GAM5A0A18H21SAA 50 x 22 x 17 1/2 22 120
GAM5A0A24H21SAA 50 x 22 x 17 1/2 22 120
GAM5B0A30H31SAA 52 x 22 x 21 22 133
GAM5B0A36H31SAA 56 x 22 x 21 22 143
GAM5C0A42H41SAA 57 x 22 x 23 1/2 22 158
GAM5C0A48H41SAA 62 x 22 x 23 1/2 22 174
GAM5C0A60H51SAA 62 x 22 x 23 1/2 22 178
*Subtract from total height to get Coil and Heater compartment height.
Table 7.1
D
H
W

Trane GAM5 Series Specifications

General

Brand	Trane
Model	GAM5 Series
Category	Air Handlers
Language	English
