Section 7. Setting the Unit - Vertical Installation
7.1 Considerations
Provide a minimum height of 14 inches for proper
unrestricted airflow below the unit. Allow a minimum
of 21 inches clearance in front of the air handler to
permit maintenance and removal of filter.
Position unit on suitable foundation. If a manu- •
facturer approved accessory is not used, a frame
strong enough to support the total weight of the
unit, accessories, and duct work must be provided.
Isolate unit from the foundation using a suitable •
isolating material.

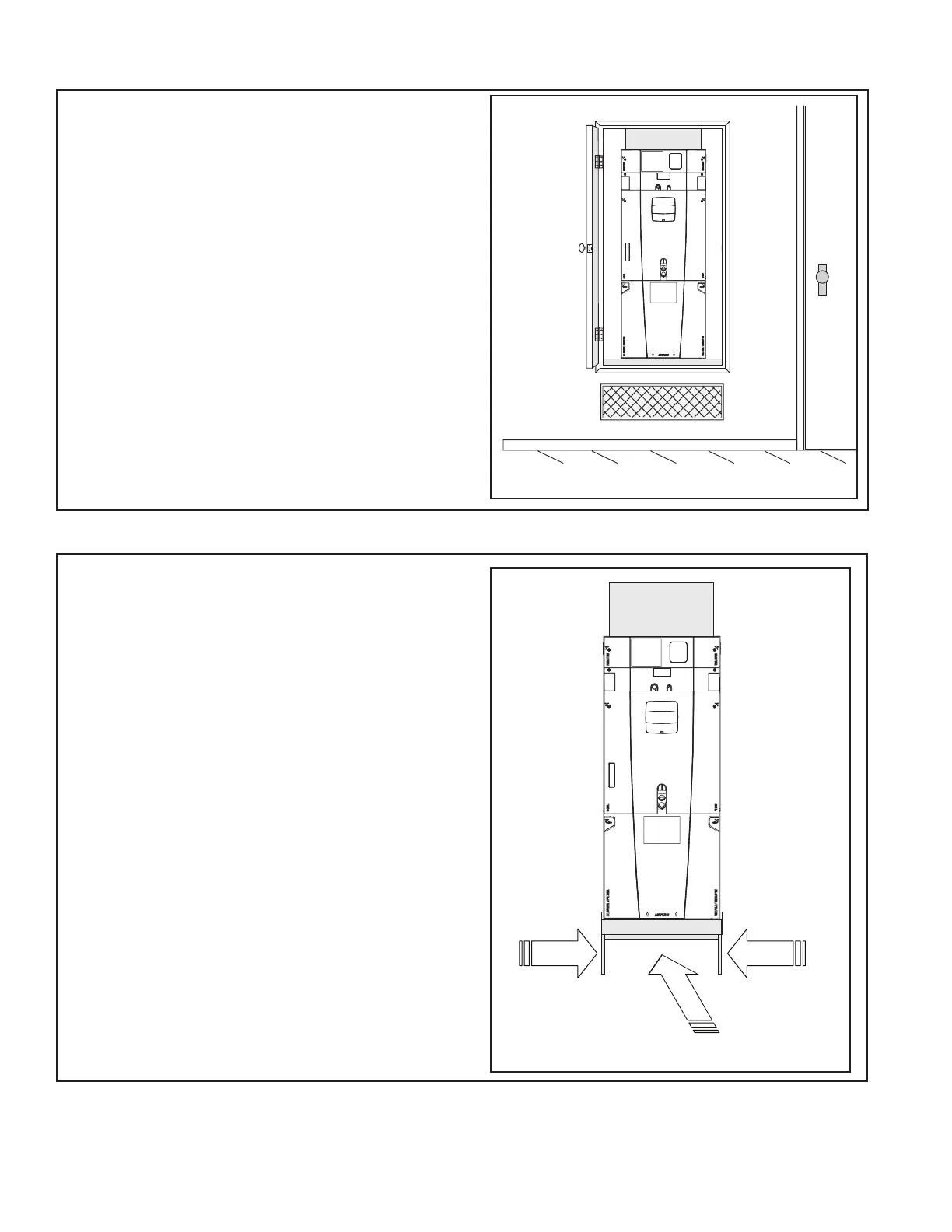

Typical Closet Installation
7.2 Upflow Installation
TASB Installation
1. Assemble the TASB using the TASB’s Installer
Guide.
TASB accessories can be purchased from:
Miami Tech Inc.
3611 NW 74 Street
Miami, FL 33147
Phone: 800-339-2290
Fax: 305-693-6152
www.miamitech.com
TASB175 for use with 17.5” cabinets
TASB215 for use with 21.5” cabinets
TASB235 for use with 23.5: cabinets
Typical TASB Installation
Airflow
AirflowAirflow
