Section 14. Electrical - High Voltage
14.1 High Voltage Power Supply
The high voltage power supply must match the
equipment nameplate.
Power wiring, including ground wiring, must comply
with national, state, and local codes.
Field wiring diagrams for supplementary electric
heaters are shipped with the heater.
14.2 Make Electrical Connections
STEP 1 - Route High Voltage wiring to unit.
STEP 2 - Select a conduit entry point.
1. Select the entry point you will use to bring in your
high voltage wiring.
2. Remove plug from the entry point.
LIVE ELECTRICAL COMPONENTS!
During installation, testing, servicing, and troubleshooting of this
product, it may be necessary to work with live electrical com-
ponents. Failure to follow all electrical safety precautions when
exposed to live electrical components could result in death or
serious injury.

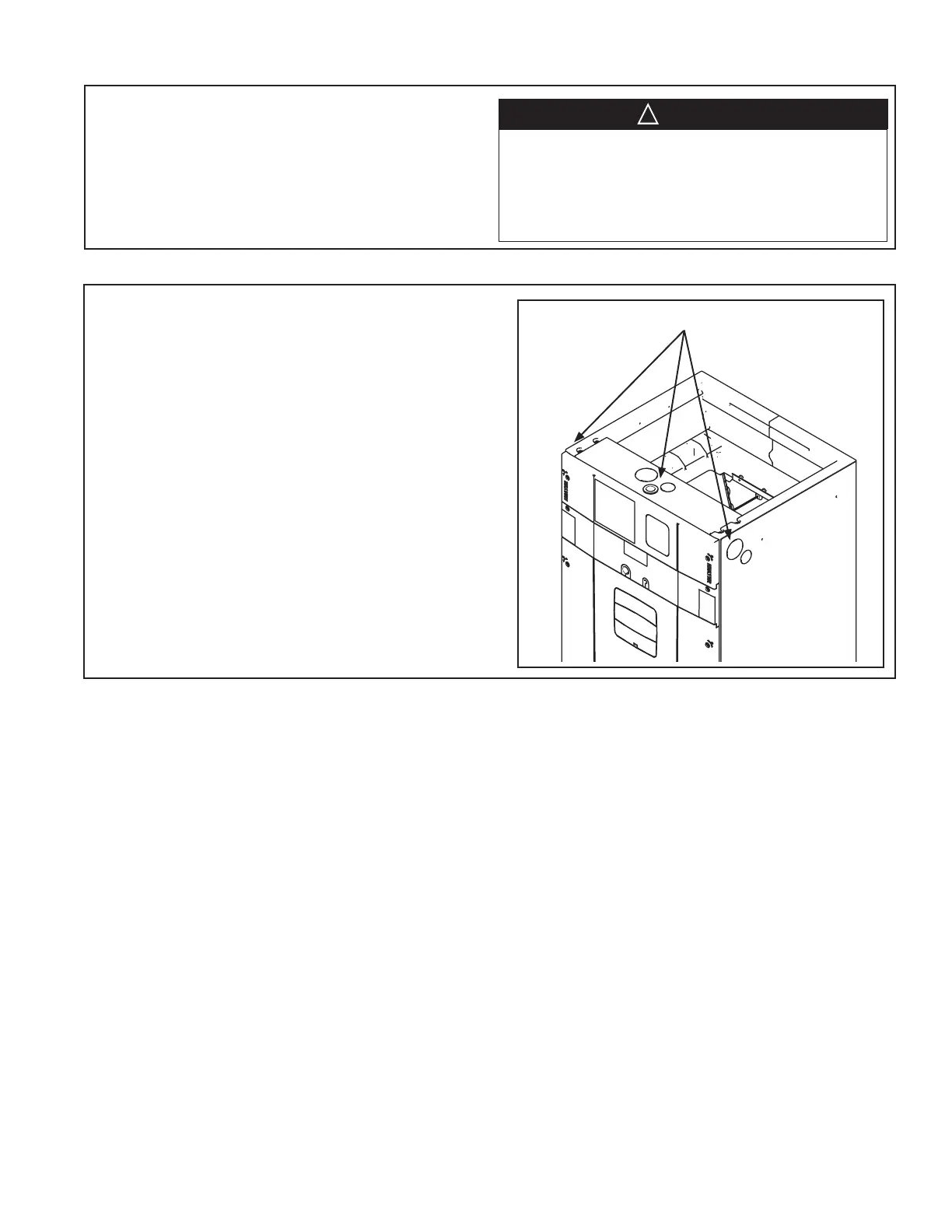

Conduit Entry Points
To Next Page
