Section 3. Unit Preparation

3.1 Prepare The Unit For Installation

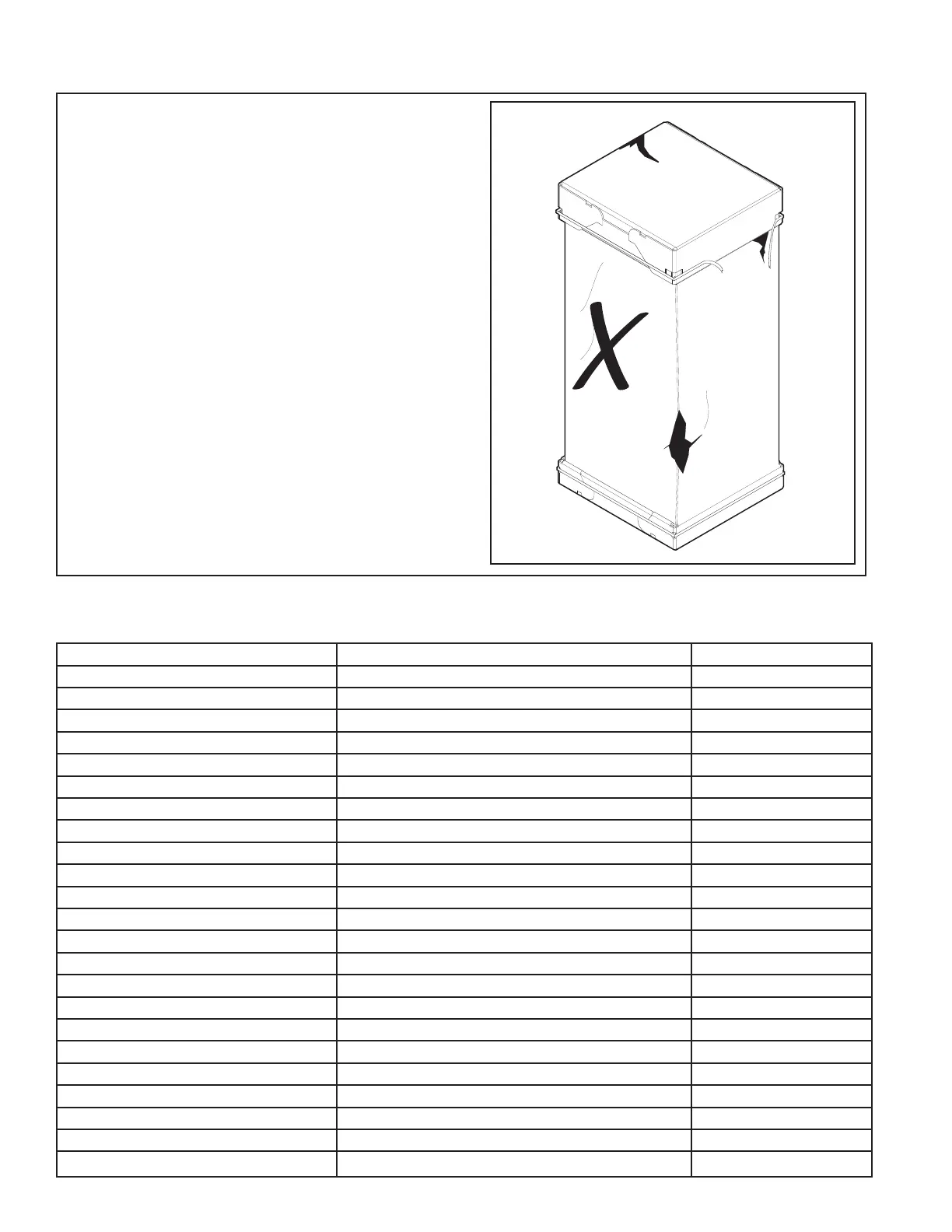

STEP 1 - Check for damage and report promptly to

the carrier any damage found to the unit.

Note: The unit is shipped “upside-down” in the

downflow orientation and may be easiest to trans-

port to the job site in that orientation. If the unit

must be transported in a horizontal position, it must

be laid on its back (marked “REAR” on carton).

Note: After the unit is removed from the carton,

depress the Schrader valve to verify coil is pressur-

ized.

3.2 Unit Accessories

Accessory Number Description Fits Cabinet Size

BAYEAAC05BK1A Electric Heater, 5kW, Breaker, 24V Control, 1 Ph A to C

BAYEAAC05LG1A Electric Heater, 5kW, Lugs, 24V Control, 1 Ph A to C

BAYEAAC08BK1A Electric Heater, 8kW, Breaker, 24V Control, 1 Ph A to C

BAYEAAC08LG1A Electric Heater, 8kW, Lugs, 24V Control, 1 Ph A to C

BAYEAAC10BK1A Electric Heater, 10kW, Breaker, 24V Control, 1 Ph A to C

BAYEAAC10LG1A Electric Heater, 10kW, Lugs, 24V Control, 1 Ph A to C

BAYEABC15BK1A Electric Heater, 15kW, Breaker, 24V Control, 1 Ph B to C

BAYEABC20BK1A Electric Heater, 20kW, Breaker, 24V Control, 1 Ph B to C

BAYEACC25BK1A Electric Heater, 25kW, Breaker, 24V Control, 1 Ph C

BAYSUPFLGA Supply Duct Flange A A

BAYSUPFLGBA Supply Duct Flange B B

BAYSUPFLGCA Supply Duct Flange C C

BAYRETFLGAA Return Duct Flange A A

BAYRETFLGB Return Duct Flange B B

BAYRETFLGCA Return Duct Flange C C

TASB175 Plenum Stand A A

TASB215 Plenum Stand B B

TASB235 Plenum Stand C C

BAYSRKIT100A Side Return Kit A to C

BAYICSKIT01A Internal Condensate Switch Kit A to C

BAYHHKIT001A Horizontal Hanger Kit A to C

BAYUVCLK001A UVC Lights A to C

BAYLVKIT100A Low Voltage Conduit Entry Kit A to C

Table 3.2
