10 RLC-SVB05A-EN
IPC Overview and Troubleshooting
4 Inspect finished connector. Make sure the red wire matches up with the red
line on the connector. Verify that no wires are twisted in the connector.
Procedure for
installing caps.
A cap must be installed on the bare end any time the is cut and/or spliced.
1 Always cut in parallel section of wire. If cuts are made on twisted wire,
shorting of the wire pairs will occur. An angle cut is necessary for the proper
installation of the protective cap. Refer to
Figure 6.
Right
Wrong

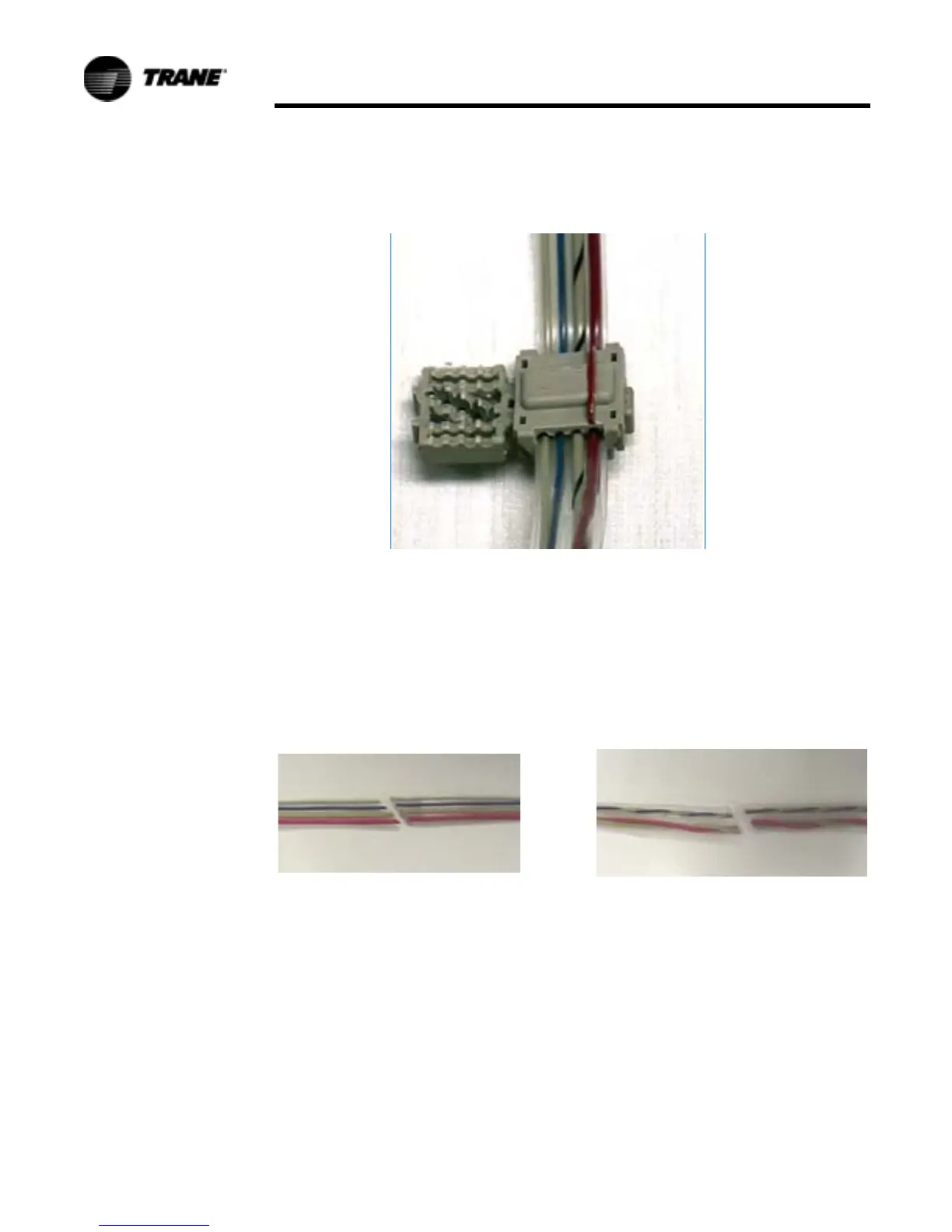

Figure 5. Finished Connector
Figure 6. Wire
