S9V2-VS-SVX001-1B-EN
27
Gas Piping
Important: When converting the gas piping from the factory default, the plug must be removed from the new gas piping location and swapped
with the grommet from the default location. The upflow furnace default is left side gas piping. The downflow furnace default is right
side gas piping.

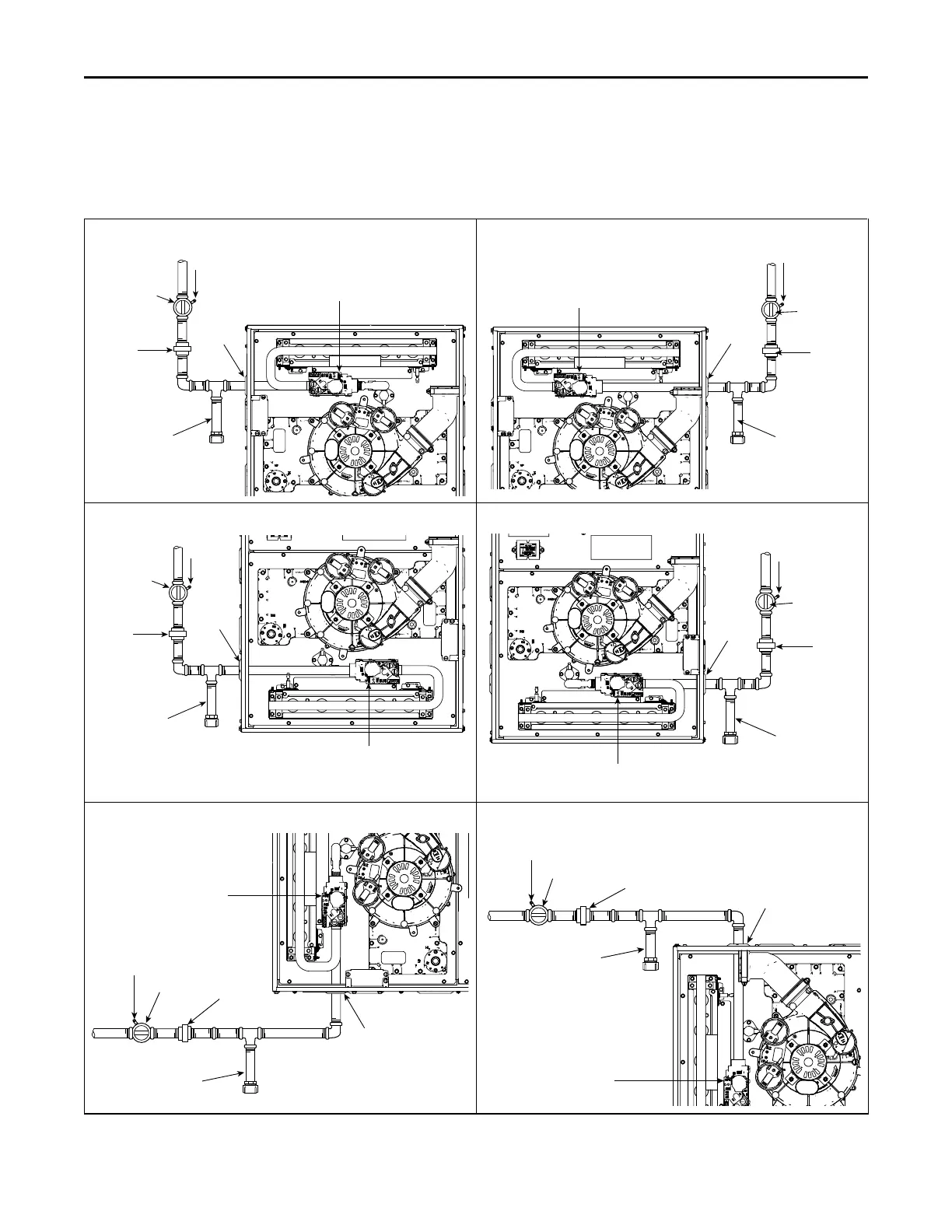

Upflow furnace with gas piping on left side
Automatic Gas Valve
with Manual Shut-o
Main Manual
Shut-o Valve
Ground
Union
Joint
Drip Leg
Gas Line
Grommet
1/8” NPT
Test Fitting
Upflow furnace with gas piping on right side
Automatic Gas Valve
with Manual Shut-o
Main Manual
Shut-o Valve
Ground
Union
Joint
Drip Leg
Gas Line
Grommet
1/8” NPT
Test Fitting
Downflow furnace with gas piping on left side
Automatic Gas Valve
with Manual Shut-o
Main Manual
Shut-o Valve
Ground
Union
Joint
Drip Leg
Gas Line
Grommet
1/8” NPT
Test Fitting
Downflow furnace with gas piping on right side
Automatic Gas Valve
with Manual Shut-o
Main Manual
Shut-o Valve
Ground
Union
Joint
Drip Leg
Gas Line
Grommet
1/8” NPT
Test Fitting
Horizontal left furnace with gas piping out left side
Automatic Gas Valve
with Manual Shut-o
Main Manual
Shut-o Valve
Ground
Union
Joint
Drip Leg
Gas Line
Grommet
1/8” NPT
Test Fitting
Horizontal left furnace with gas piping out right side
Automatic Gas Valve
with Manual Shut-o
Main Manual
Shut-o Valve
Ground
Union
Joint
Drip Leg
Gas Line
Grommet
1/8” NPT
Test Fitting
FFuurrnnaaccee GGeenneerraall IInnssttaallllaattiioonn
