92
S9V2-VS-SVX001-1B-EN
Integrated Furnace Control Display Codes
2 Stage Inducer with ECM Blower Motor
IdL Idle
XtI
First Stage Gas Heating
Lr1
First Stage Gas Heat Learning Routine
Xt2
Second Stage Heating
Lr2
Second Stage Gas Heat Learning Routine
aRF
Calculated Airflow (Followed by Airflow times 10)
C0F
Continuous Fan
CLI
First Stage Cooling
CL2
Second Stage Cooling
Xp!
First Stage Heat Pump
Xp2
Second Stage Heat Pump
dFt Defrost Mode
Menu Options
err Active Alarm Menu
L6F
Last 6 Faults (To clear — Hold Option button down for 5 seconds)
Cr Code Release Number
C0d
Cooling Off Delay (Seconds)
0dt
Outdoor Tonnage
0du Outdoor Unit
COF
Blower Constant Fan Airflow Multiplier (Percentage)
CpC
Cooling (CFM/Ton)
CpH
Heat Pump Heating (CFM/Ton)
Xod
Heat Off Delay (Seconds)
!sd
Inter-Stage Delay (Seconds)
gXC
Gas Heating CFM 2nd Stage (1st Stage is not adjustable) (Airflow times 10)
run Run Test Mode

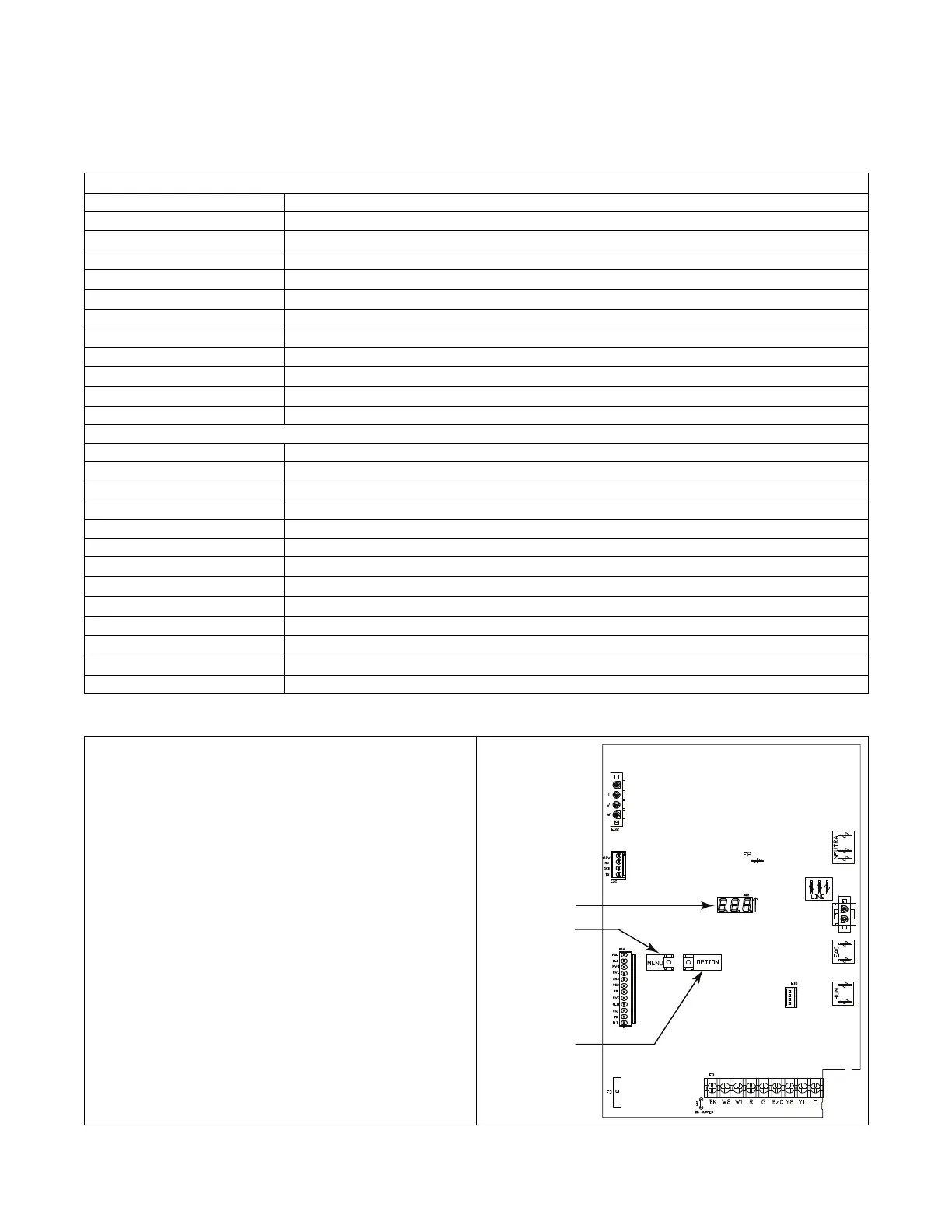

Table 21. Fault Code Recovery
Fault Code Recovery
1. To view the last 6 faults, press the “Menu” key until the “Last 6
Faults” (L6F) menu appears.
2. Enter the menu by pressing the “Option” key.
3. The last 6 faults can be viewed.
Clearing the Last 6 Faults
1. To clear the last 6 faults, press the “Menu” key until the “Last 6
Faults” (L6F) menu appears.
2. Enter the menu by pressing the “Option” key.
3. Hold the “Option” key for at least 5 seconds.
4. Release and a set of 3 dashes with be seen 3 times. This confirms
the faults have been cleared.
Resetting Factory Defaults
1. Display must be in Idle Mode.
2. Push the “Menu” and “Option” buttons at the same time for 15
seconds then release.
3. The 7 segment will flash “FD” 3 times. This confirms the unit has
been reset to the factory defaults.
7 Segment LED
OPTION Button
MENU Button
