Start-Up and Shutdown
52 RTAF-SVX001A-EN
Power Up Diagram
Figure 43, p. 52 shows the respectiveTD-7 AdaptiView
screens during a power up of the UC800 and display.This
process takes 25 seconds for the UC800 and 90 seconds for
the display. On all power ups, the software model always
will transition through the 'Stopped' Software state
independent of the last mode. If the last mode before
power down was 'Auto', the transition from 'Stopped' to
'Starting' occurs, but it is not apparent to the user.

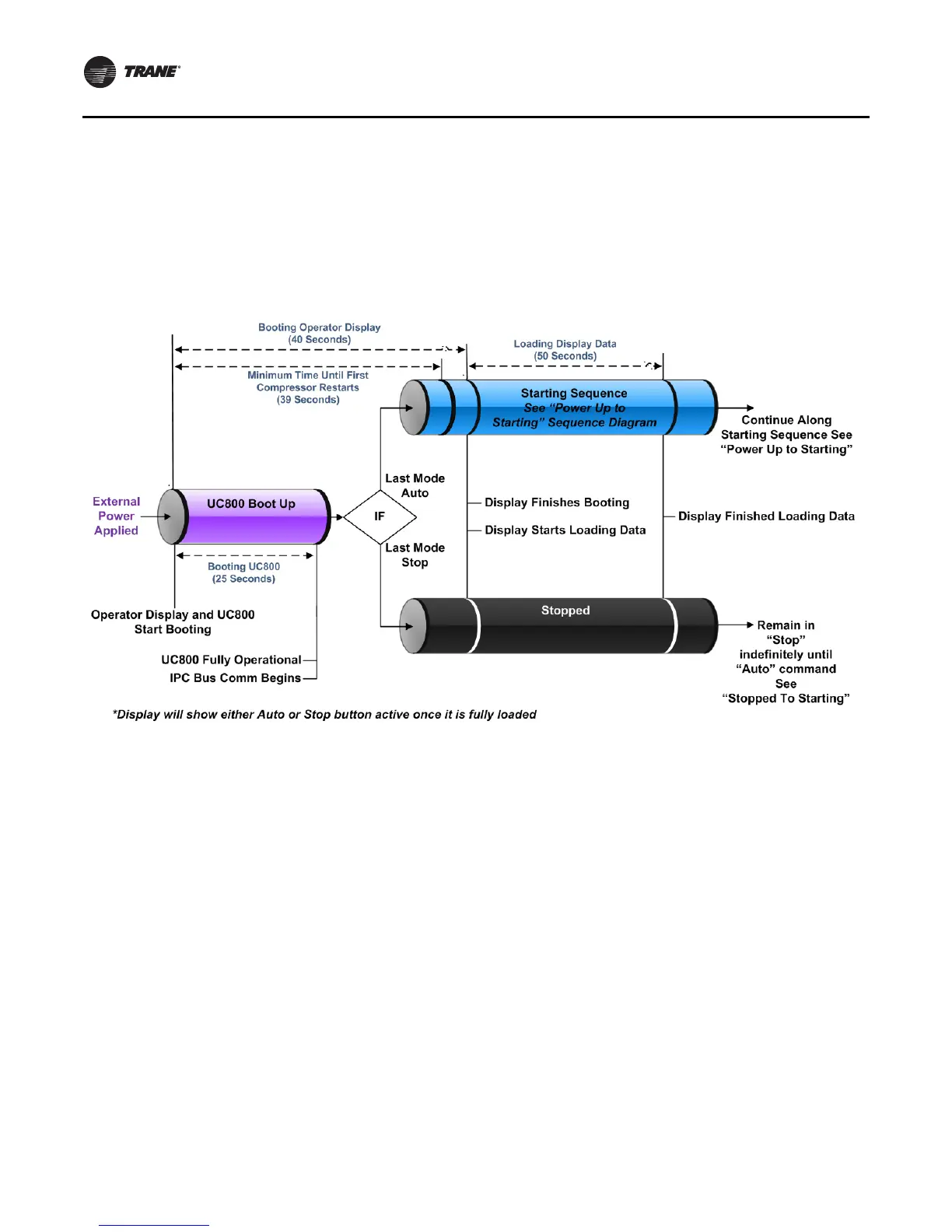

Figure 43. Sequence of operation: power up diagram
