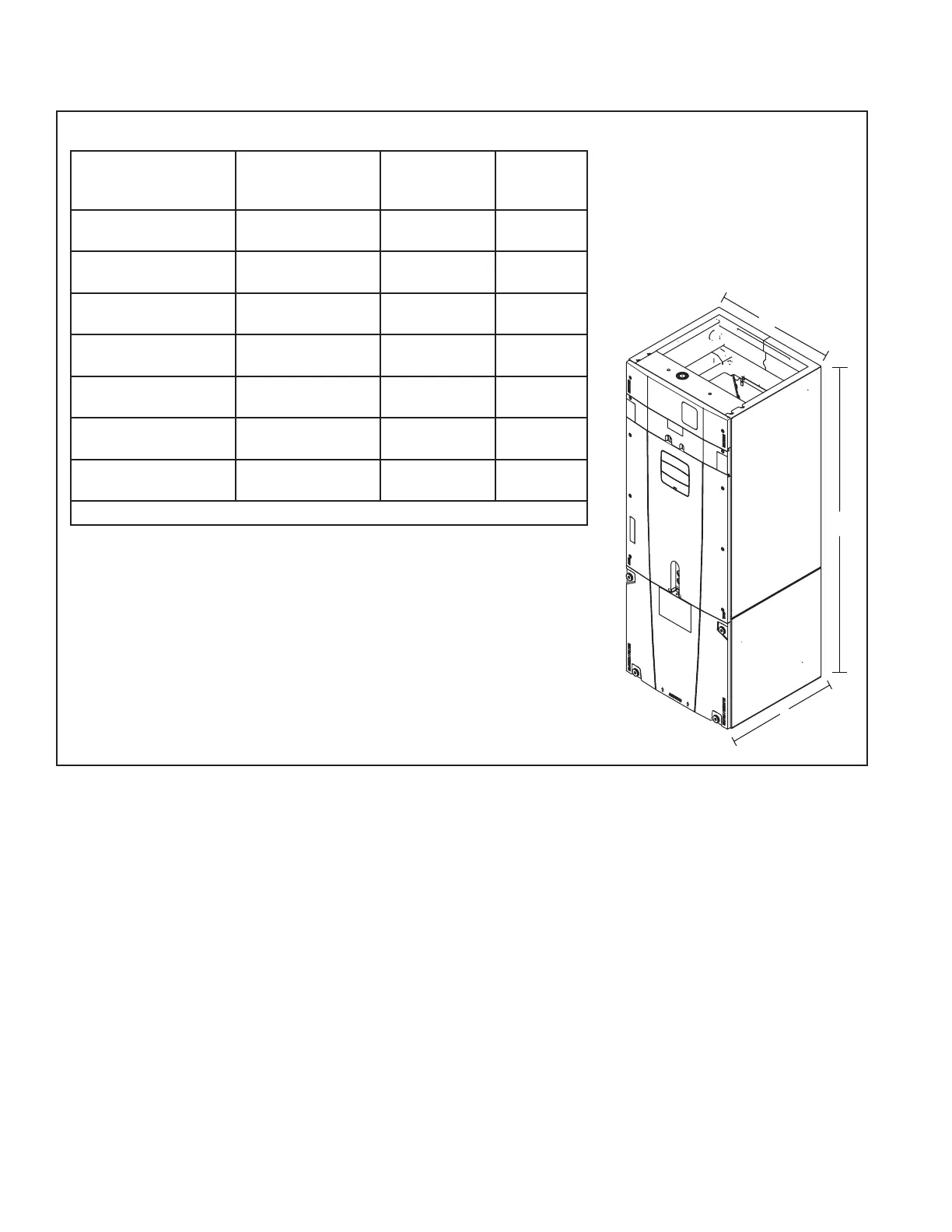

Section 6. Unit Location Considerations
6.1 Unit Dimensions and Weight
Model
Number
H x W x D
in.
**Blower
Compartment
in.
Unit
Net Weight
lbs.
TAM4A0A18S11ED
TAM4A0A18S11SD
49.9 x 17.5 x 21.8 22 113
TAM4A0A24S21ED
TAM4A0A24S21SD
49.9 x 17.5 x 21.8 22 116
TAM4A0A30S21ED
TAM4A0A30S21SD
49.9 x 17.5 x 21.8 22 117
TAM4A0A36S31ED
TAM4A0A36S31SD
49.9 x 17.5 x 21.8 22 120
TAM4A0B42S31ED
TAM4A0B42S31SD
55.7 x 21.3 x 21.8 22 133
TAM4A0C48S41ED
TAM4A0C48S41SD
56.9 x 23.5 x 21.8 22 143
TAM4A0C60S51ED
TAM4A0C60S51SD
61.7 x 23.5 x 21.8 22 160
** Subtract from total height to get Coil and Heater compartment height.
Table 7.1
D
H
W

Trane TAM4A0A18S11ED Specifications

General

Brand	Trane
Model	TAM4A0A18S11ED
Category	Air Handlers
Language	English
