6
Note: If the unit must be transported in a horizontal
position, it must be laid on its back (marked “REAR”
on carton).
Note: To reassemble cabinet, follow the steps in
reverse order. Ensure electrical connections are
secure and the plug clips are engaged.

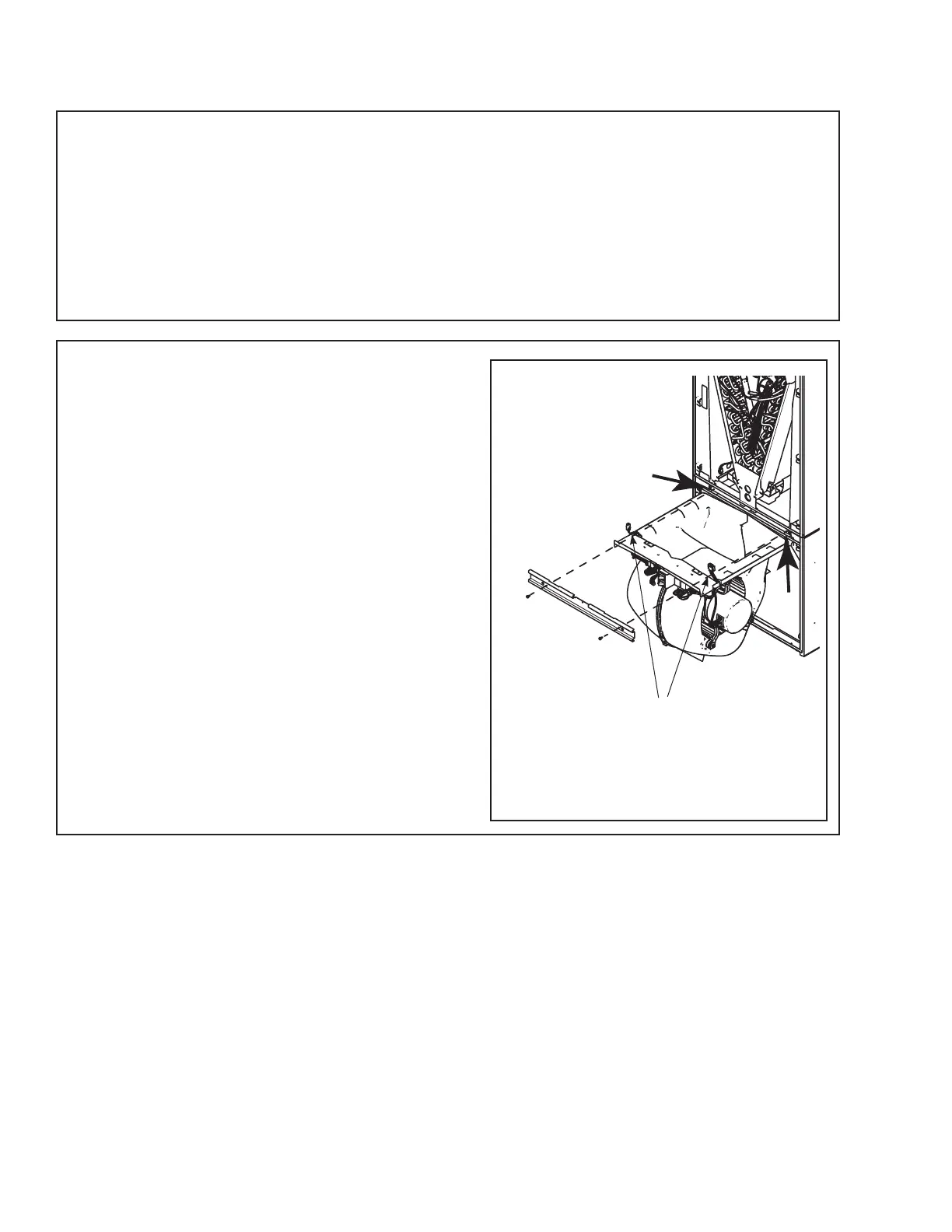

4.1 Disassemble cabinet for installation in tight areas or as needed.
Section 4. Optional Cabinet Disassembly
STEP 1 - Remove all four front panels. See Section
2.2.
STEP 2 - Remove the two screws on the seal bar and
pull the seal bar straight out.
STEP 3 - Disconnect all wiring connections routed to
the blower assembly.
Blower Electrical
Connections
Screw locations
To Next Page
