5.1 Location
• Install the UX360 in a centrally located
climate controlled living space with good air
circulation.
• The UX360 MUST be at least 3 feet apart
from any other electronic device such as a
TV or speaker.
• You MUST assign an indoor temperature
sensor that is installed in a controlled space.
See the Sensor Setup section for details.
• If the UX360 and the SC360 must be in
close proximity (closer than 3 feet), always
install the UX360 diagonally above the
SC360. If top left and top right sides are not
possible, then install the SC360 to the right
or left side of the UX360.
• Keep these 2 devices as far apart as
possible. Never install them on top of each
other.
• The UX360 should be at least 3 feet away
from a corner where 2 walls meet. Corners
have poor circulation.
• The UX360 should not be directly exposed to
air currents from supply air or ceiling fans.
• Avoid exposing the UX360 to any radiant
heat source such as sun light or fireplaces.
5. Placement & Installation
Incorrect
Placement
3 Feet Min.
UX360
SC360
Preferred placement
(diagonally and above, in
same controlled space)
Acceptable placement
when space is limited
(SC360 to right or left, in
same controlled space)
Unacceptable placement
when space is limited
(Never install above/below,
same controlled space)
3 Feet Min.
3 Feet Min.
3 Feet Min.
3 Feet Min.
Incorrect
Placement
Problematic Air Patterns
Natural heat
dissipation
from the
Touch Screen
Onboard
Thermistor
5 FEET
Optimum
Zone
2 FEET
Correct
Placement
Locate the control in an
area with minimal air flow
patterns thereby avoiding
interuption of natural heat
dissipation

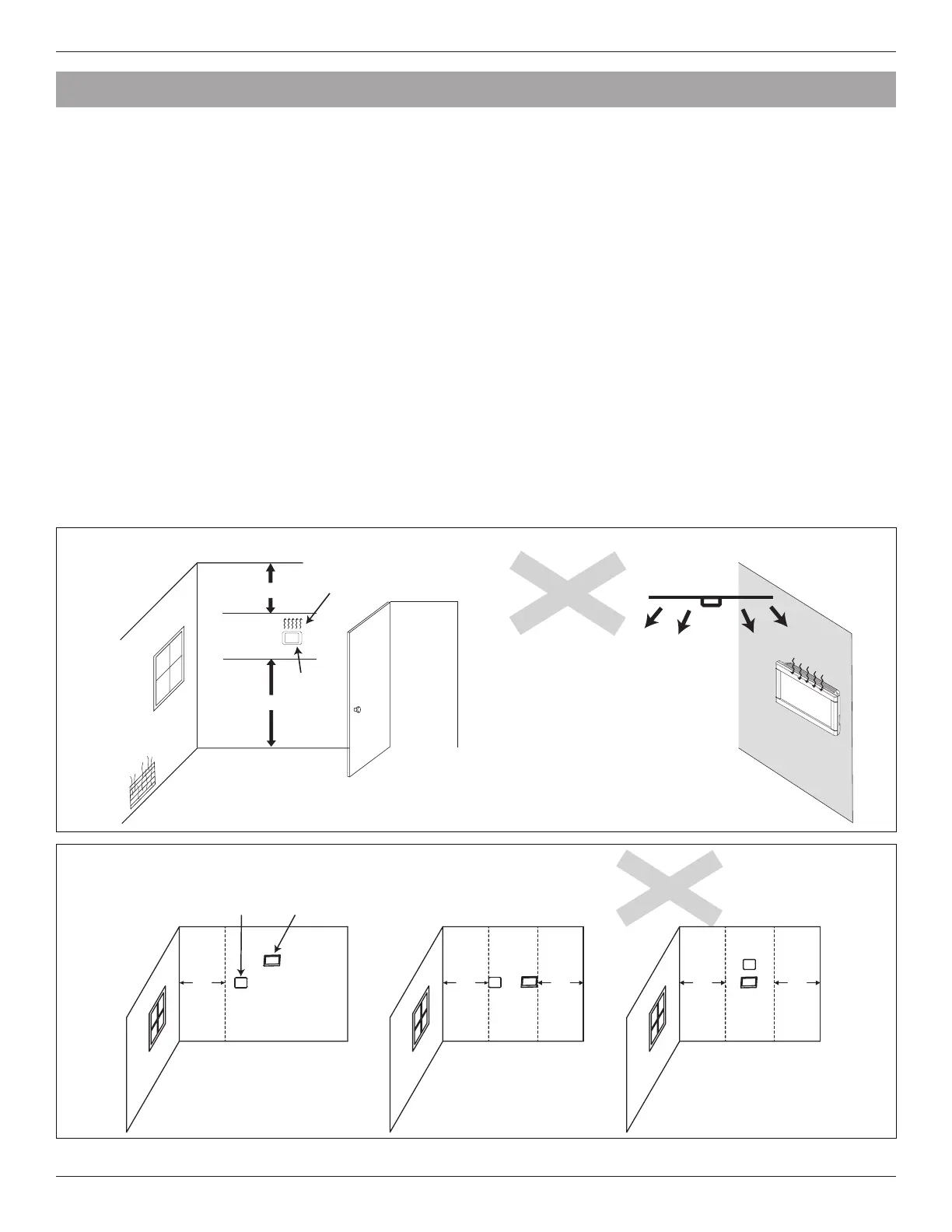

Figure 1. Placement of UX360 and SC360
