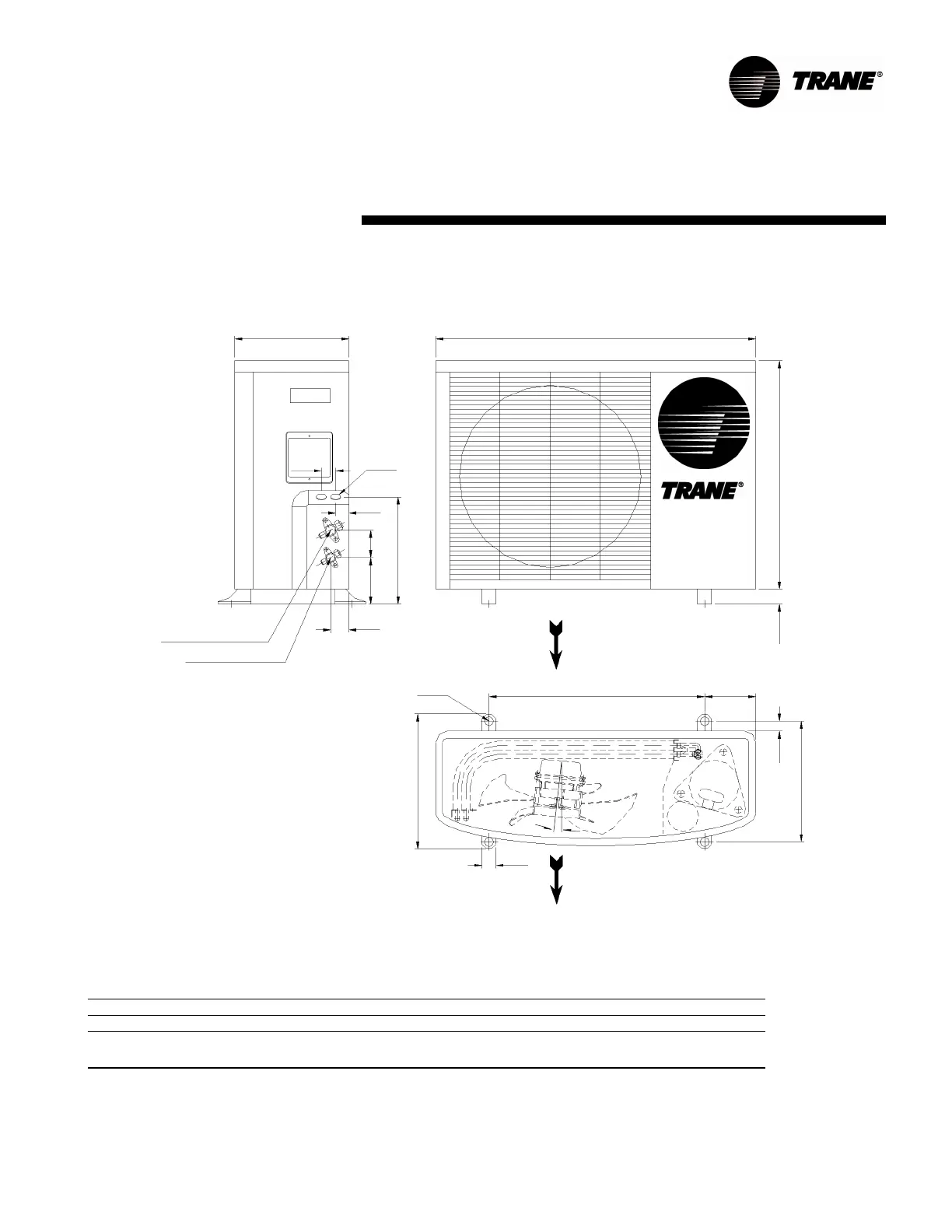

Figure 7. Outline Dimensions - TTK 509 E - TTK 512 E
Dimensional
Data
Note: All dimensions are in mm ( inches)
Table 3 - Dimensional Data
Connection Sizes Weight Dimensional Data
Model Liquid Suction Kg (Lbs) A B C D
TTK 509E 1/4 (6.35) 3/8 (9.5) 27 (60) 102 (4.1) 60 (2.4) 29 (1.2) 31 (1.22)
TTK 512E 1/4 (6.35) 1/2 (13) 32 (70.5) 102 (4.1) 60 (2.4) 29 (1.2) 31 (1.22)
Note: Diameter of Liquid and Suction Lines are in inches (mm)
LIQUID CONNECTION
SUCTION CONNECTION
700 (27.6)
40 (1.6)
4 x 12 (0.5)
WIRING IN
2 X 22 (0.86)
472 (18.6)
AIR FLOW
250 (9.8)
500 (19.7)32.5 (1.3)
235 (9..3)
296 (11.7)
264 (10.4)
22 (0.86)
A
C
D
B
112 (4.4)
5°

Trane TTK 509 E Specifications

General

Brand	Trane
Model	TTK 509 E
Category	Heat Pump
Language	English
