Electric Connections
1. Important: do not allow electric
wires from the compressor casing
to touch refrigerant tubes or the
compressor.
2. Equipment electric installation and
grounding should be made
according to IEC 335-2-40: 2002
and local codes and/or NEC.
3. The power supply should comply
with the specification in the
equipment nameplate.
4. Install an exclusive overcurrent
protection circuit-breaker for the
outdoor unit. It can also be used for
system protection.
5. Use flexible electric conduits in
cases where vibrations can
introduce noises inside the
structure.
6. Appropriate color electric wires
should be used, for command, to
allow easier connections between
indoor and outdoor units.
Electric
Connections

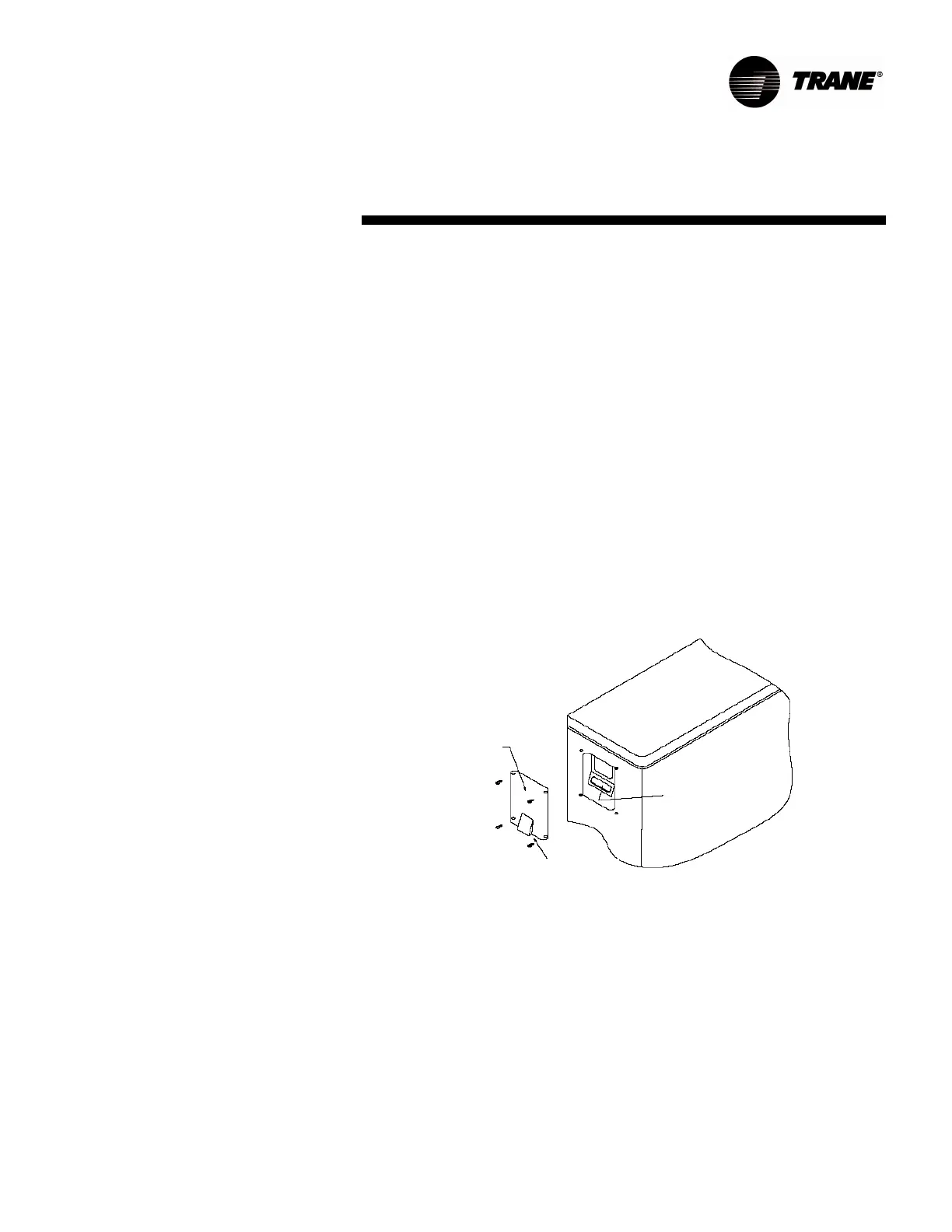

Figure 06 - Electric connection detail
Terminal
block
Covering
Cable input
