SS-SVN03B-EN 13
Typical Wiring
Diagram

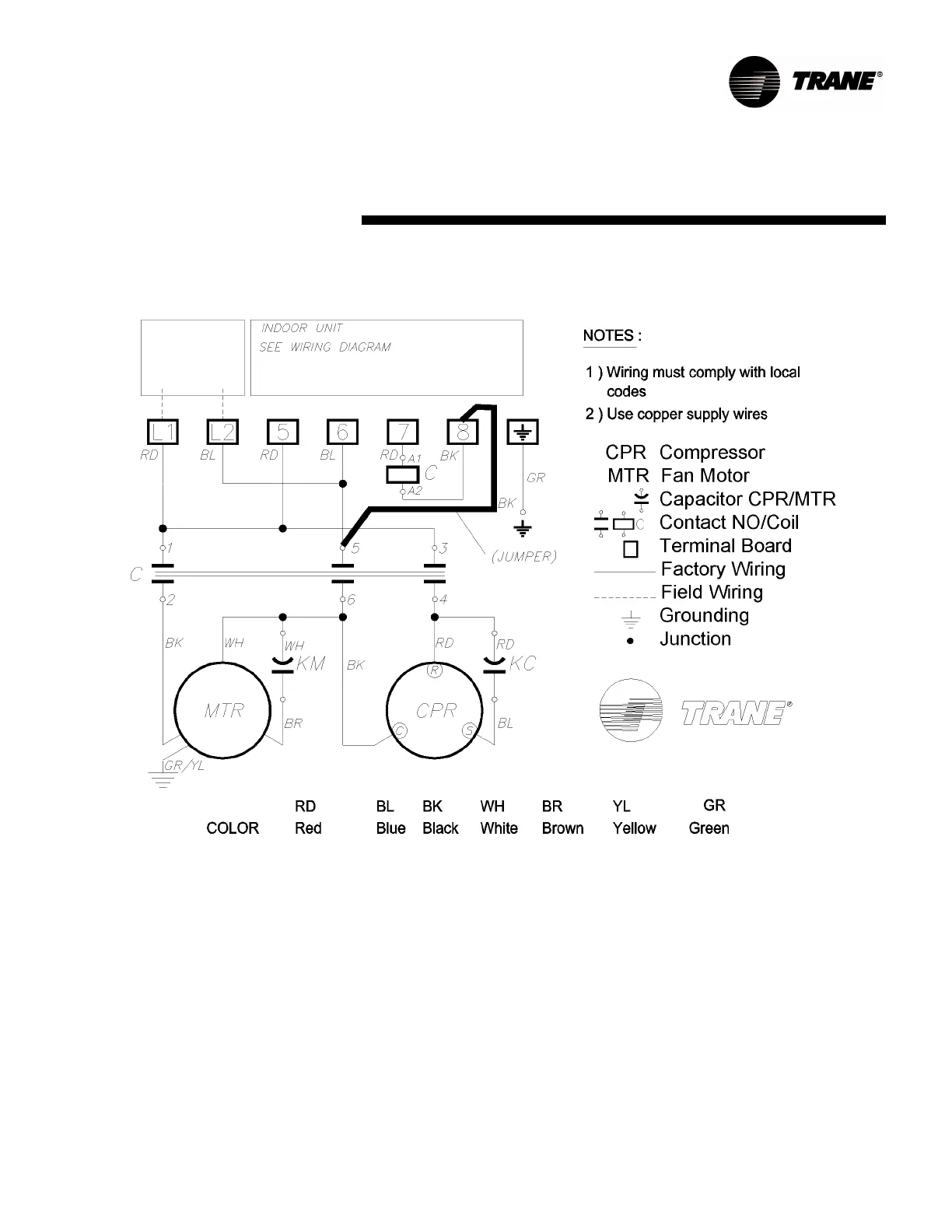

Figure 9. Wiring Diagram - TTK 509E / 512E / 518E / 524E / 530E / 536E
220-240V 1PH
50/60Hz
