12 SS-SVN03B-EN
Dimensional
Data

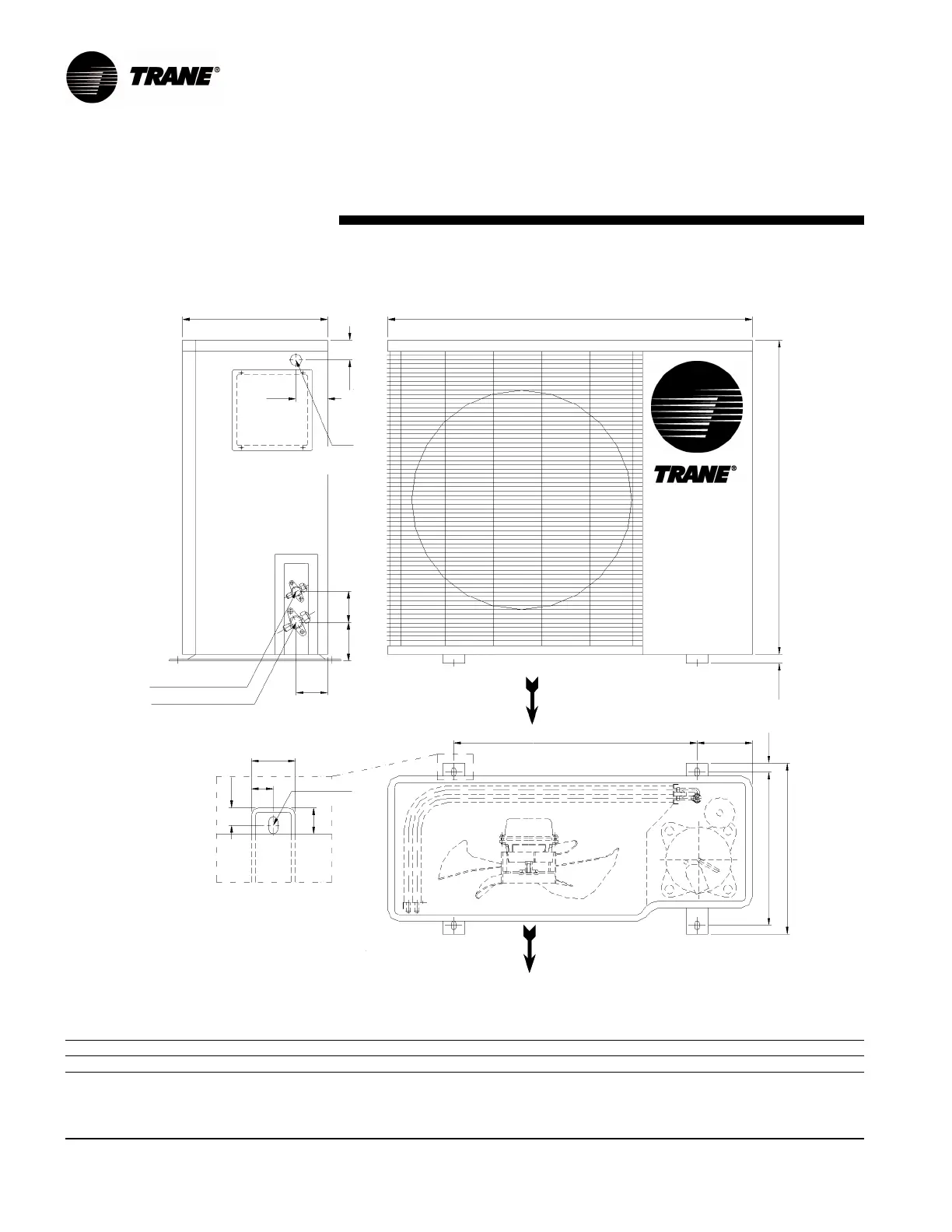

Figure 8. Outline Dimensions - TTK 518E - TTK524E - TTK530E - TTK536E
Note: All dimensions are in mm ( inches)
Note: Diameter of Liquid and Suction Lines are in inches (mm)
Table 4 - Dimensional Data
Connection Sizes Weight Dimensional Data
Model Liquid Suction Kg (Lbs) A B C D E F G
TTK 518E 1/4 (6.35) 1/2 (12.7) 48 (106) 30 (1.2) 25 (0.98) 20 (0.78) 50 (1.96) 71 (2.8) 87.5 (3.5) 70 (2.8)
TTK 524E 3/8 (9.5) 5/8 (15.8) 57 (126) 30 (1.2) 25 (0.98) 20 (0.78) 50 (1.96) 71 (2.8) 87.5 (3.5) 70 (2.8)
TTK 530E 3/8 (9.5) 5/8 (15.8) 67 (148) 30 (1.2) 25 (0.98) 20 (0.78) 50 (1.96) 71 (2.8) 87.5 (3.5) 70 (2.8)
TTK 536E 3/8 (9.5) 3/4 (19.05) 69 (153) 30 (1.2) 25 (0.98) 20 (0.78) 50 (1.96) 71 (2.8) 87.5 (3.5) 70 (2.8)
LIQUID CONNECTION
SUCTION CONNECTION
830 (32.7)
D
4 x 12 (0.5)
554 (21.8)
AIR FLOW
330 (32.7)
715.5 (28.2)
19.5 (0.76)
45 (1.8)
389 (15.3)
20 (0.78)
F
72 (2.9)
B
G
126 (5.0)
27 (1.06)
WIRING IN
349 (13.7)
A
C
E
