Spring Wheel
-
I

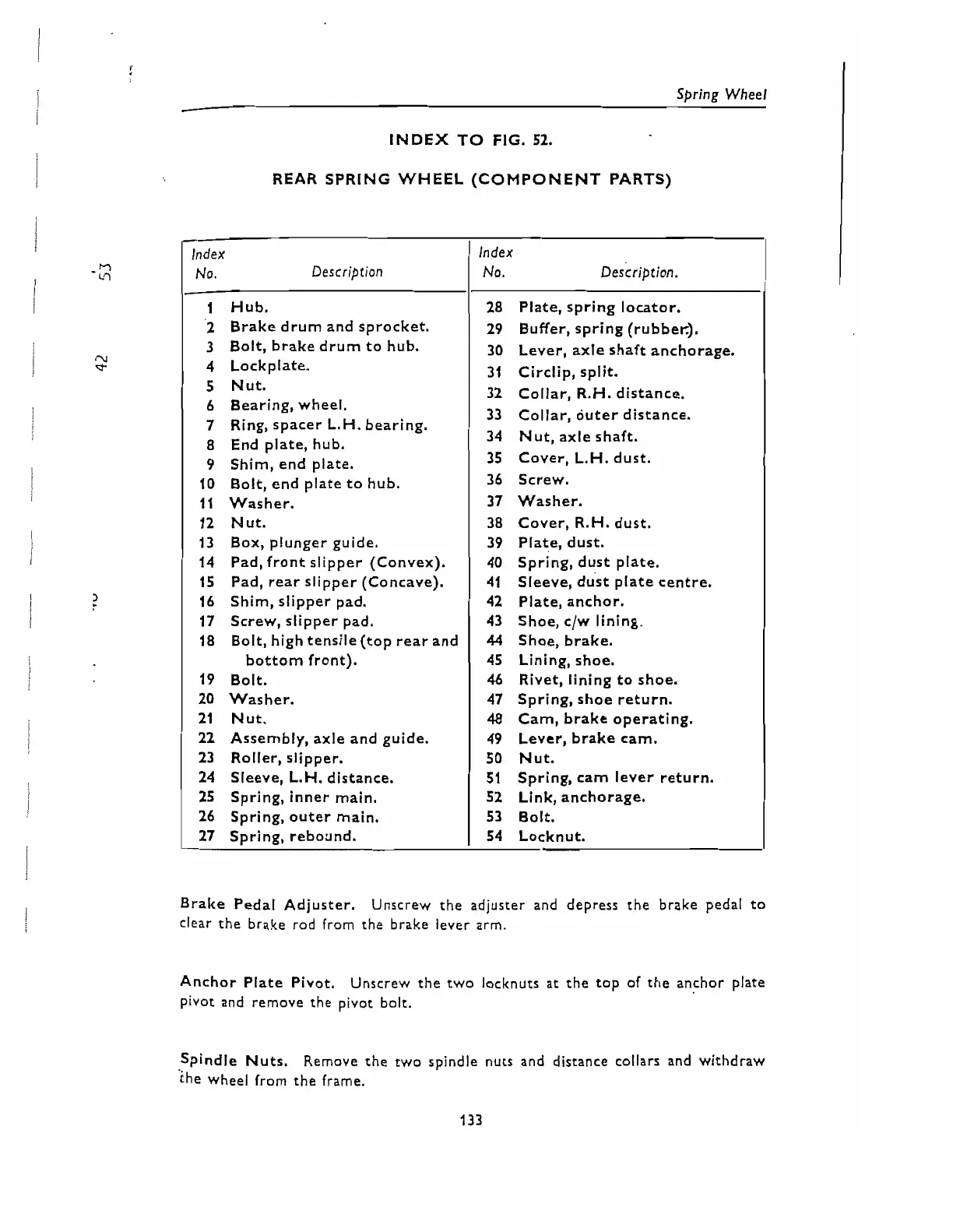

INDEX TO
FIG.
52.
i
I
REAR SPRING WHEEL (COMPONENT PARTS)
1
I
Brake Pedal Adjuster.
Unscrew the adjuster and depress the brake pedal to
clear the brake rod from the brake lever arm.
Index
No. Descript~on
1
Hub.
2
Brake drum and sprocket.
3
Bolt, brake drum to hub.
4
Lockplate.
5
Nut.
6
Bearing, wheel.
7
Ring, spacer L.H. bearing.
8
End plate, hub.
9
Shim, end plate.
10
Bolt, end plate to hub.
11
Washer.
12
Nut.
13
Box, plunger guide.
14
Pad, front slipper (Convex).
15
Pad, rear slipper (Concave).
16
Shim, slipper pad.
17
Screw, slipper pad.
18
Bolt, high tensile(top rear and
bottom front).
19
Bolt.
20
Washer.
21
Nut.
22
Assembly, axle and guide.
23
Roller, slipper.
24
Sleeve, L.H. distance.
25
Spring, inner main.
26
Spring, outer main.
27
Spring, rebound.
Anchor Plate Pivot.
Unscrew the two locknuts
at
the top of the anchor plate
pivot and remove the pivot bolt.
Index
No.
Description.
28
Plate, spring locator.
29
Buffer, spring (rubbec).
30
Lever, axle shaft anchorage.
31
Circlip, split.
32
Collar, R.H. distance.
33
Collar, outer distance.
34
Nut, axle shaft.
35
Cover,
L.H.
dust.
36
Screw.
37
Washer.
38
Cover, R.H. dust.
39
Plate, dust.
40
Spring, dust plate.
41
Sleeve, dust plate centre.
42
Plate, anchor.
43
Shoe, c/w lining
44
Shoe, brake.
45
Lining, shoe.
46
Rivet, lining to shoe.
47
Spring, shoe return.
48
Cam, brake operating.
49
Lever, brake cam.
50
Nut.
51
Spring, cam lever return.
52
Link, anchorage.
53
Bolt.
54
Locknut.
Spindle Nuts.
Remove the two spindle nuts and distance collars and withdraw
the wheel from the frame.
