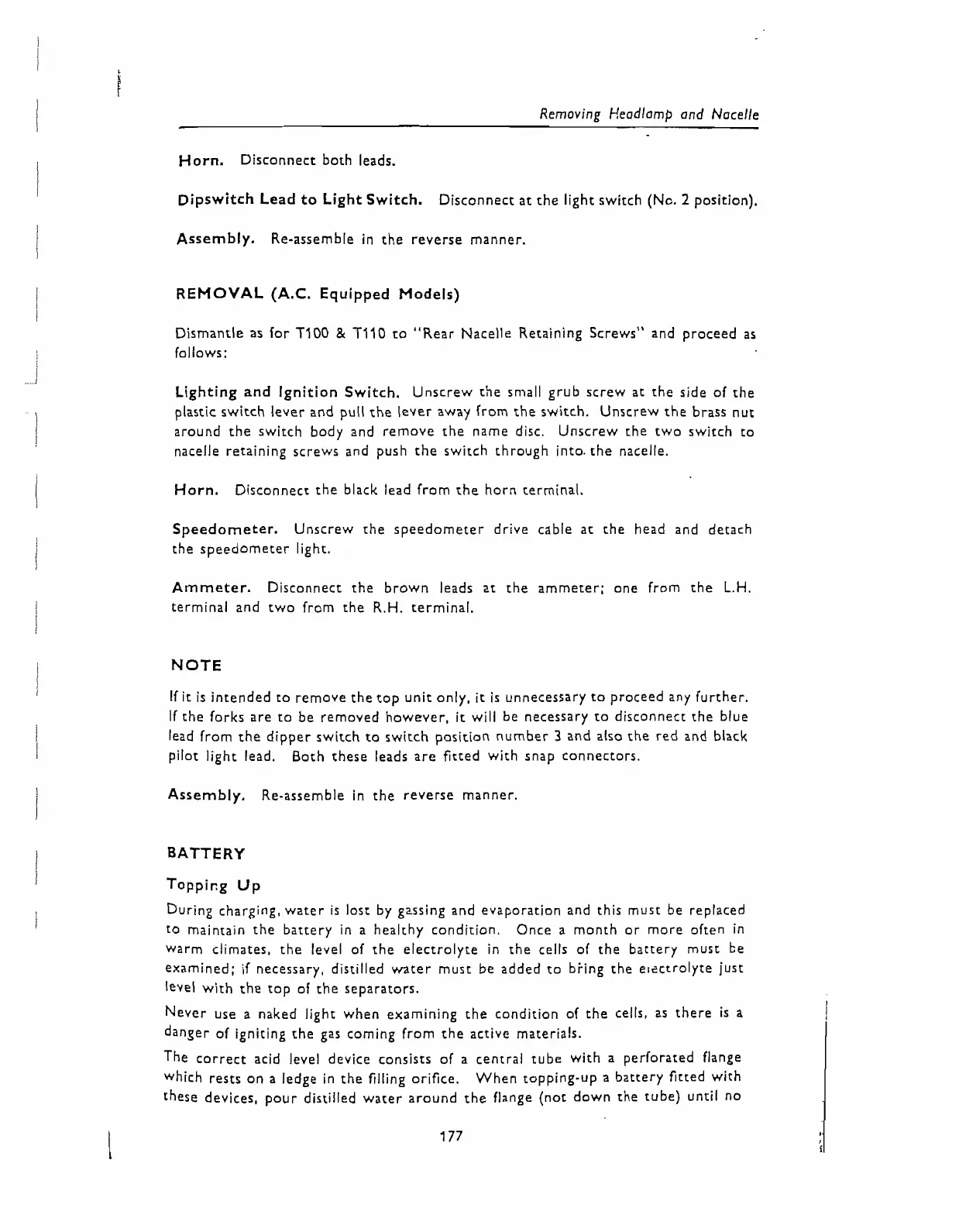

Removing Headlamp and Nacelle
Horn. Disconnect both leads.
Dipswitch Lead to Light Switch.
Disconnect at the light switch (No.
2 position).
i
I Assembly. Re-assemble in the reverse manner.
I
! REMOVAL (A.C. Equipped Models)
i
Dismantle as for TlOO & TllO to "Rear Nacelle Retaining Screws" and proceed as
follows:
Lighting and Ignition Switch. Unscrew the small grub screw at the side of the
plastic switch lever and pull the lever away from the switch. Unscrew the brass nut
around the switch body and remove the name disc. Unscrew the two switch to
nacelle retaining screws and push the switch through into. the nacelle.
Horn.
Disconnect the black lead from the horn terminal.
Speedometer.
Unscrew the speedometer drive cable at the head and detach
the speedometer light.
Ammeter. Disconnect the brown leads at the ammeter; one from the
L.H
terminal and two from the R.H. terminal.
NOTE
If it is intended to remove the top unit only, it is unnecessary to proceed any further.
If the forks are to be removed however,
it will be necessary to disconnect the blue
lead from the dipper switch to switch position number
3 and also the red and black
pilot light lead.
Both these leads are fitted with snap connectors.
Assembly.
Re-assemble in the reverse manner.
I BATTERY
I
During charging, water is lost by gzssing and evaporation and this must be replaced
to maintain the battery in a healthy condition. Once a month or more often in
Warm climates, the level of the electrolyte in the cells of the battery must be
examined; if necessary, distilled water must be added to biing the e~?ctrolyte just
level with the top of the separators.
Never use a naked light when examining the condition of the cells, as there
is a
danger of igniting the gas coming from the active materials.
The correct acid level device consists of a central tube with a perforated flange
which rests on a ledge in the filling orifice. When topping-up a battery fitted with
these devices, pour distilled water around the flange (not down the tube) until no
