Removing
Camwheels

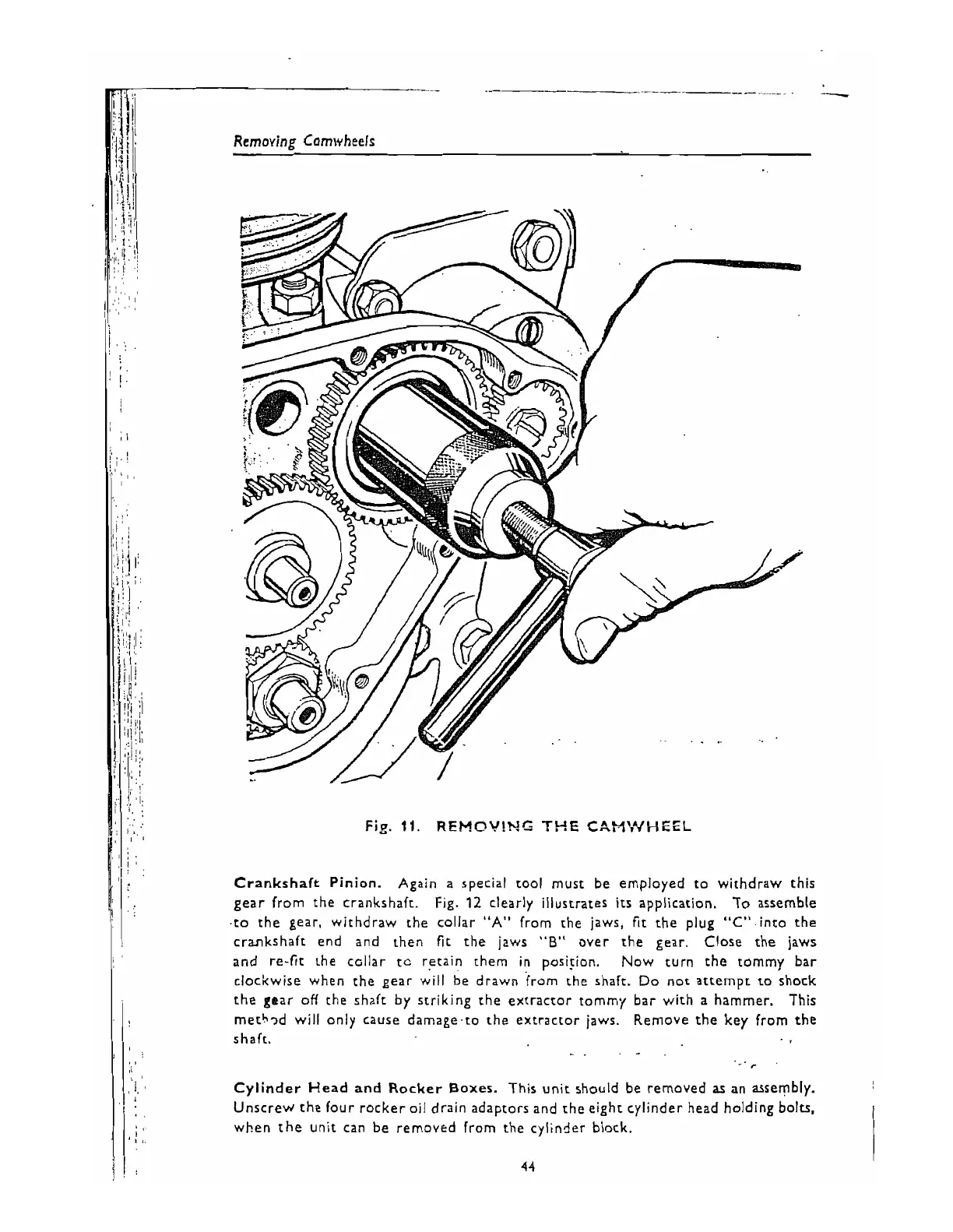

Fie.
11.
REMOY!Nt
THE
CAMWHEEL
Crankshaft Pinion. Again a special tool must be employed to withdraw this
gear from the crankshaft.
Fig.
12
clearly illustrates
its
application.
To assemble
-to the gear, withdraw the collar
"A"
from the jaws,
fit
the plug "CH.into the
crankshaft end and then
fit
the jaws
"0"
over the gear. Close the
jaws
and re-fit the collar to retain them in posirion. Now turn the tommy bar
clockwise when the gear will be drawn from the shaft. Do not attempt to shock
the
par OH the shaft by striking the extractor tommy bar with
a
hammer. This
rneth?d will only cause damageto the extractor jaws. Remove the key from the
shaft.
Cylinder Head and Rocker Boxes. This unit should be removed
as
an assembly.
Unscrew the four rocker oil drain adaptors and the eight cylinder head holding bolts.
when the unit can be removed from the cylinder block.
