Triumph Bonneville T120 Ace User Manual

Maintenance and Adjustment
106
To inspect the coolant level:
• Position the motorcycle on level
ground and in an upright position.
The expansion tank can be viewed
from the left hand side of the
motorcycle, towards the rear of the
engine.
• Check the coolant level in the
expansion tank. The coolant level
must be between the MAX and MIN
marks. If the coolant is below the
minimum level, the coolant level
must be adjusted.

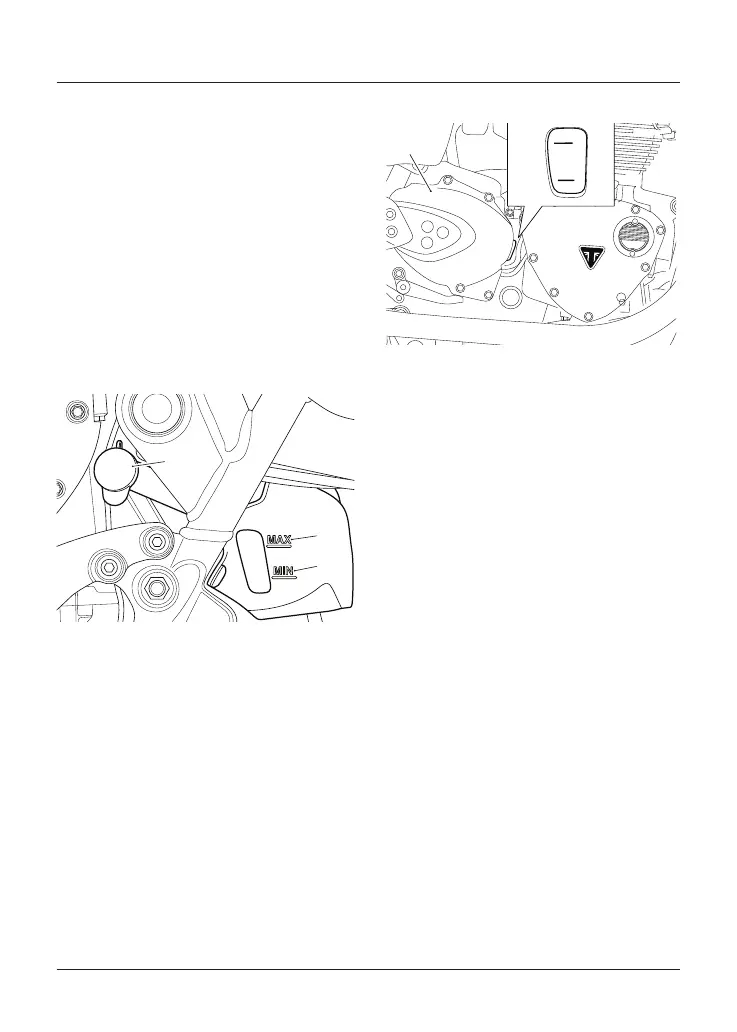

Street Scrambler
cjyr
3
1
2
1. Expansion tank cap
2. MAX mark
3. MIN mark
To inspect the coolant level:
• Position the motorcycle on level
ground and in an upright position.
The expansion tank can be viewed
from the left hand side of the
motorcycle, towards the rear of the
engine.
• Check the coolant level in the
expansion tank. The coolant level
must be between the MAX and MIN
marks. If the coolant is below the
minimum level, the coolant level
must be adjusted.
Speed Twin and Thruxton RS
2
1
1. Expansion tank cap
2. MAX and MIN marks
To inspect the coolant level:
• Position the motorcycle on level
ground and in an upright position.
The expansion tank can be viewed
from the right hand side of the
motorcycle, towards the rear of the
engine.
• Check the coolant level in the
expansion tank. The coolant level
must be between the maximum (top)
and minimum (bottom) marks. If the
coolant is below the minimum level,
the coolant level must be adjusted.
