Maintenance and Adjustment
113
• Make sure the same adjuster
marking is aligned with the spindle
adjuster on both sides of the
swinging arm.
• Tighten both adjuster lock nuts to
20 Nm and the rear wheel spindle
nut to 110 Nm.
• Repeat the drive chain adjustment
check. Readjust if necessary.
Warning
Operation of the motorcycle with
insecure adjuster lock nuts or a
loose wheel spindle may result in
impaired stability and handling of the
motorcycle.
This impaired stability and handling
may lead to loss of control or an
accident.
• Check the rear brake effectiveness.
Rectify if necessary.
Warning
It is dangerous to operate the
motorcycle with defective brakes; you
must have your authorised Triumph
dealer take remedial action before you
attempt to ride the motorcycle again.
Failure to take remedial action may
reduce braking efficiency leading
to loss of motorcycle control or an
accident.

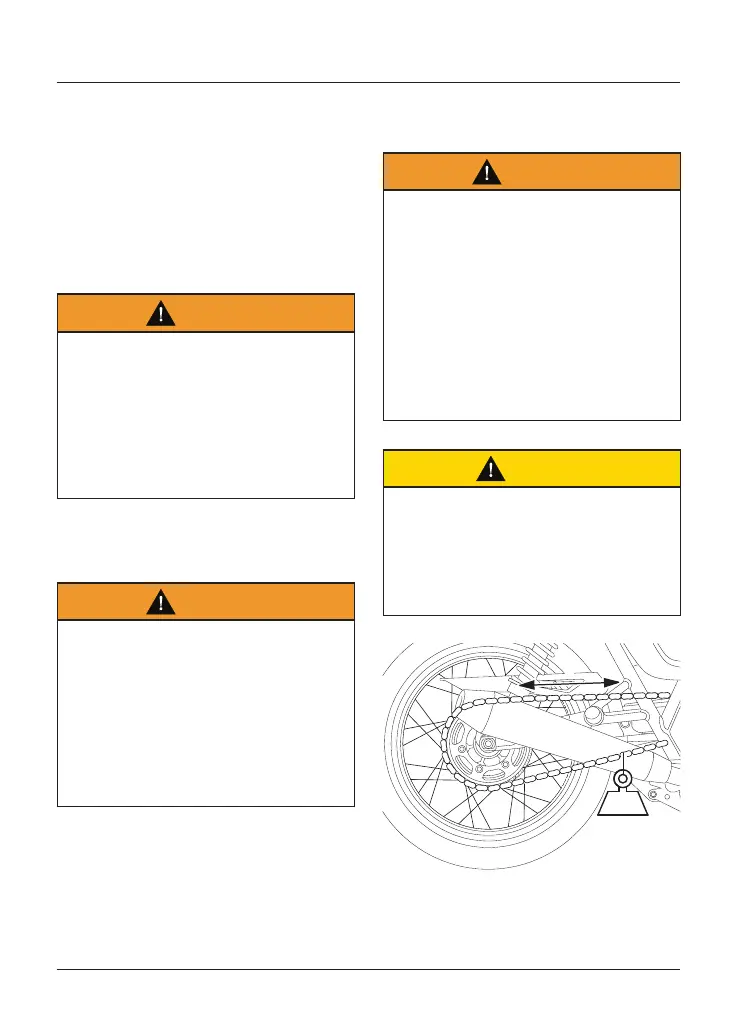

Drive Chain and Sprocket Wear
Inspection
Warning
Never neglect drive chain maintenance
and always have drive chains installed
by an authorised Triumph dealer.
Use a genuine Triumph supplied drive
chain as specified in the Triumph Parts
Catalogue.
The use of non-approved drive chains
may result in a broken drive chain or
may cause the drive chain to jump
off the sprockets leading to loss of
motorcycle control or an accident.
Caution
If the sprockets are found to be worn,
always replace the sprockets and drive
chain together.
Replacing worn sprockets without also
replacing the drive chain will lead to
premature wear of the new sprockets.
10-20
KG
2
1
1. Measure across 20 links
2. Weight
