Triumph Bonneville T120 Ace User Manual

Maintenance and Adjustment
146
Bonneville T100,
Bonneville T100 Bud Ekins,
Street Scrambler and Street Twin
1
2
3

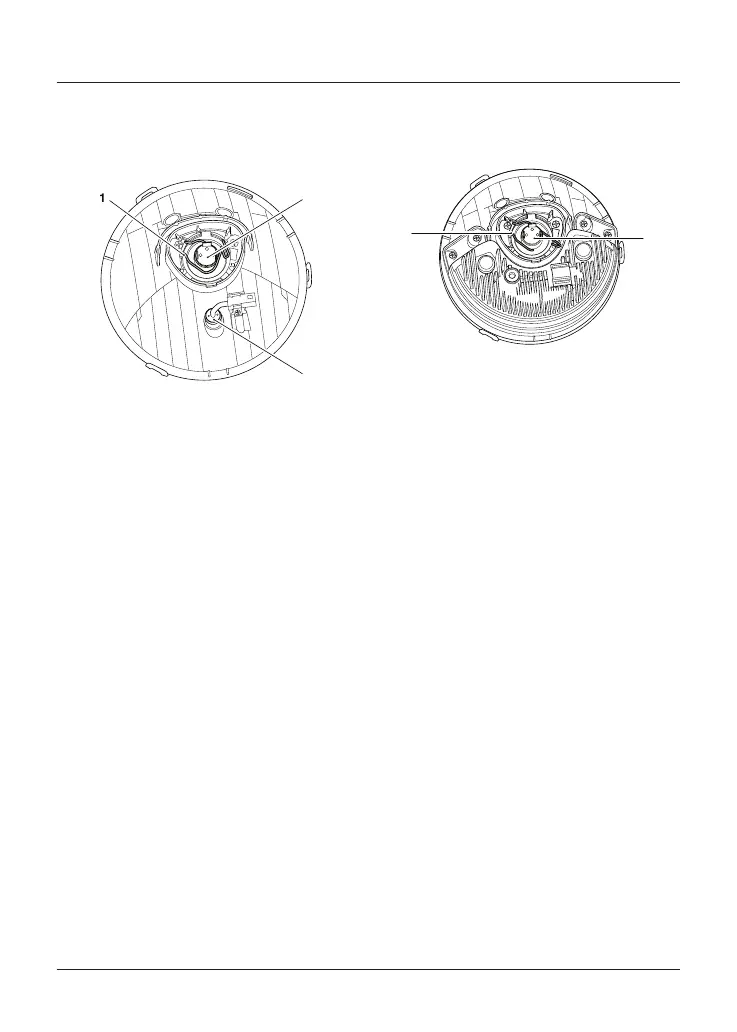

1. Wire retainer
2. Headlight bulb
3. Position bulb
To remove the headlight and position
light bulb:
• While supporting the light unit,
disconnect the multipin electrical
connector from the headlight bulb
and the connector from the position
light.
• Remove the rubber dust cover.
• Unhook the headlight bulb's wire
retainer.
• The headlight bulb can now be
removed.
• To remove the position light bulb,
detach the bulb holder from the
headlight body and release the bulb.
• Installation is the reversal of
removal.
Bonneville T120 (all models),
Speed Twin and Thruxton RS
1
2
1. Wire retainer
2. Headlight bulb
To remove the headlight and position
light bulb:
• While supporting the light unit,
disconnect the multipin electrical
connector from the headlight bulb.
• Remove the rubber dust cover.
• Unhook the headlight bulb's wire
retainer.
• The headlight bulb can now be
removed.
• Installation is the reversal of
removal.
• The position bulb is situated within
the headlight assembly and is a
sealed, maintenance-free LED unit.
