Parts Identification
27

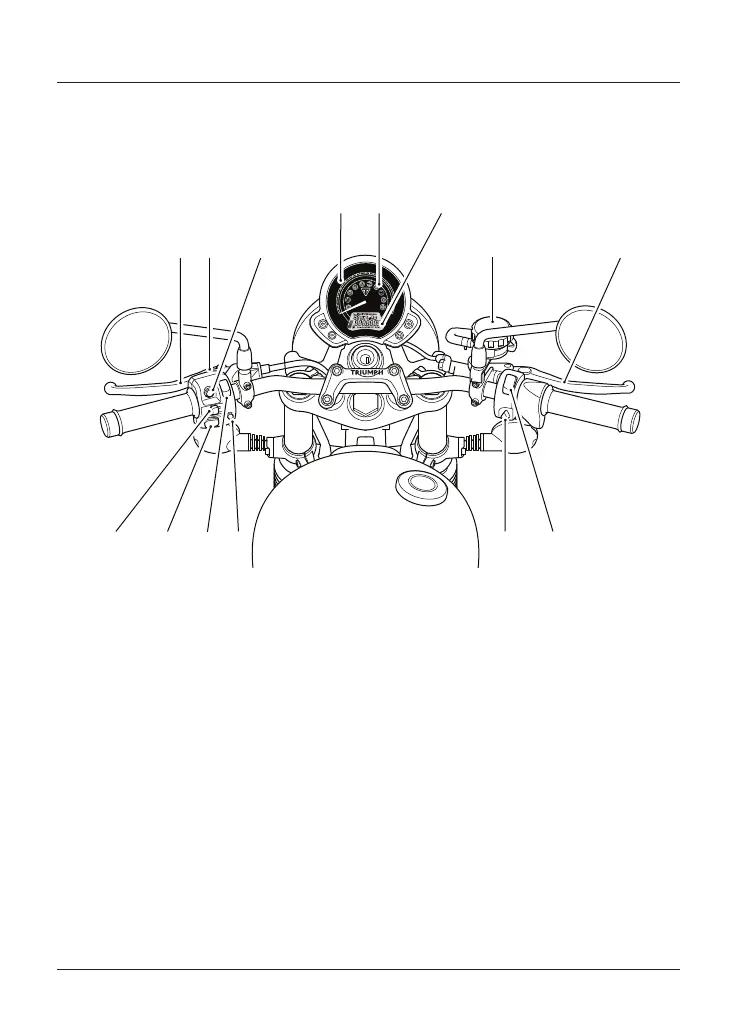

Rider View Parts Identification
Street Scrambler and Street Twin (Street Twin shown)
10
20
30
40
50
60
70
80
90
100
110
120
120
0
0
20
40
60
80
100
120
140
160
180
200
1
3
45 6
78
91 0
11
2
14 1213
1. Clutch lever
2. Headlight dip switch
3. SCROLL button
4. Speedometer
5. Warning lights
6. Odometer/Information display screen
7. Front brake fluid reservoir
8. Front brake lever
9. Engine start/stop switch
10. Hazard button
11. MODE button
12. Daytime Running Lights (DRL) switch
(if fitted)
13. Horn button
14. Direction indicator switch
