General Information
68
Street Scrambler

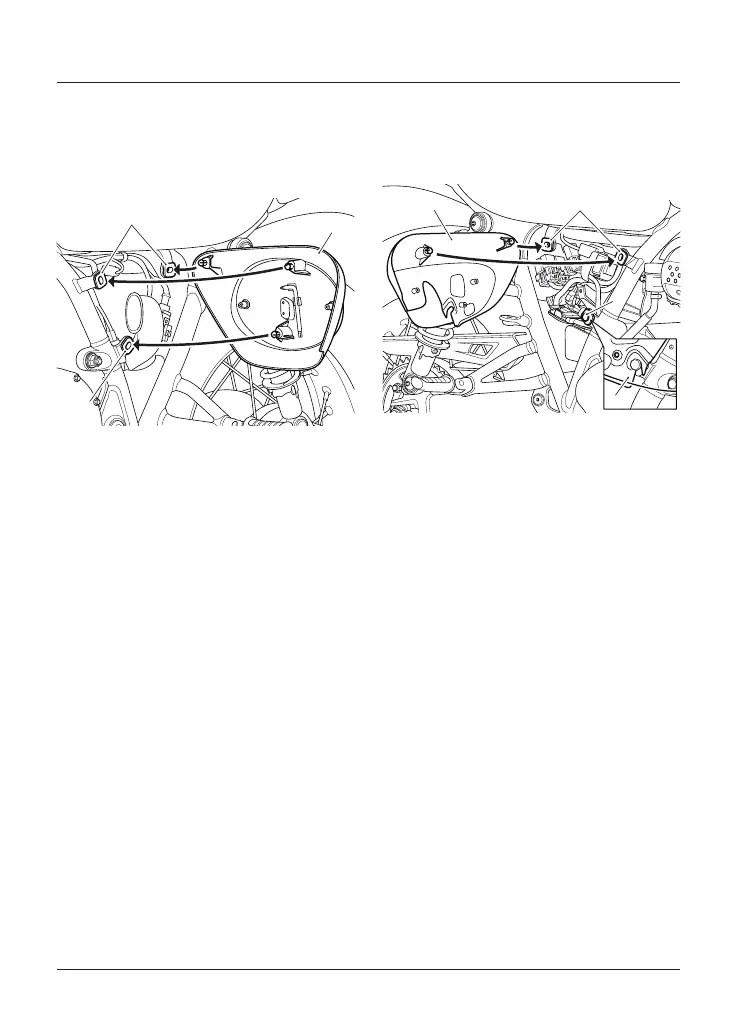

Left Hand Side Panel
The left hand side panel can be removed
to gain access to the adjustment tool.
2
1
2
1. Side panel (left hand shown)
2. Grommets
To remove the left hand side panel:
• Grasp the panel firmly and pull the
panel away from the motorcycle
until it is free from the three
retaining grommets (leaving the
grommets in place).
To refit the left hand side panel:
• Position the three locating dowels to
the grommets, then press firmly to
secure the panel.
• Finally, grasp the panel and make
sure that it is fully retained.
Right Hand Side Panel
The right hand side panel can be
removed to gain access to the rear
brake fluid reservoir.
1
3
4
2
1. Side panel (right hand shown)
2. Upper grommets
3. Lower grommets
4. Side panel attached to lower grommet
Note
The exhaust system is shown removed
for clarity.
To remove the right hand side panel:
• Grasp the panel firmly at the top
and pull the panel away from the
motorcycle until it is free from the
two top retaining grommets, leaving
the grommets in place.
• Lift up the panel to detach it from
the lower grommet.
