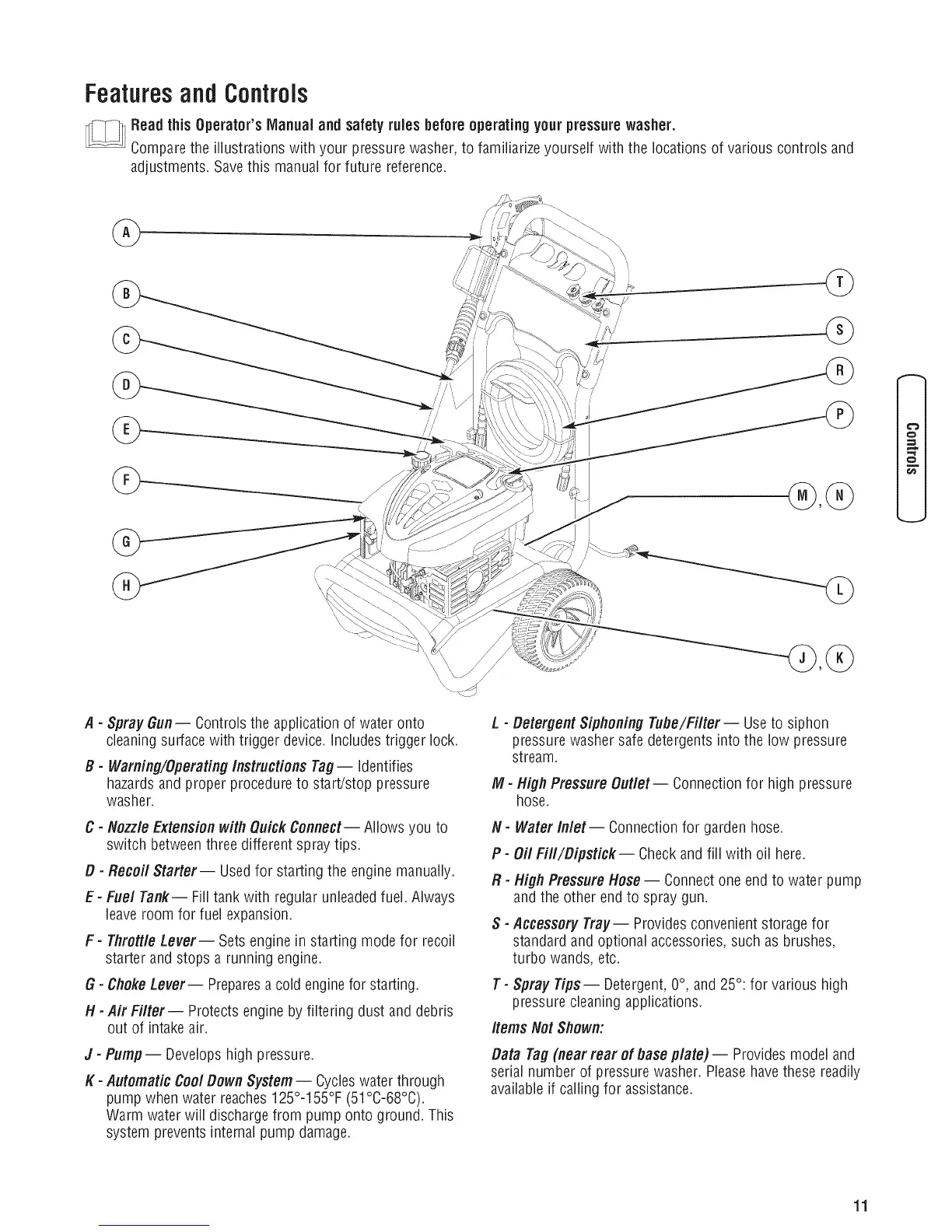

Featuresand Controls
_i ead this Operator's Manual and safetyrules beforeoperating yourpressure washer.
Comparethe illustrations with your pressure washer,to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
//
\
\\
\\
\,. _/_
..... /
A - SprayGun-- Controlsthe application of water onto
cleaningsurfacewith trigger device, includes trigger lock.
B - Warning/Operating/nstructlonsTag- identifies
hazardsand proper procedureto start!stop pressure
washer.
C - Nozzle Extension with Quick Connect-- Allows you to
switch betweenthree different spray tips.
B - Recoil Starter-- Usedfor starting the engine manually.
E- Fuel Tank-- Fill tank with regular unleadedfuel. Always
leaveroom for fuel expansion.
F- Throttle Lever-- Sets engine in starting mode for recoil
starter and stops a running engine.
G - ChokeLever-- Preparesa cold enginefor starting.
H- Air Filter-- Protects engine by filtering dust and debris
out of intake air.
d - Pump-- Developshigh pressure.
K- AutomaticCool Down System- Cycleswater through
pump when water reaches125°-155°F (51°0-68°C).
Warm water will discharge from pump onto ground. This
system preventsinternalpump damage.
L - Detergent SiphoningTube/Fitter-- Useto siphon
pressure washer safe detergents into the low pressure
stream.
M - NighPressure Outlet-- Connectionfor high pressure
hose.
N - WaterInlet-- Connectionfor garden hose.
P - Off Fill/Dipstick-- Checkand fill with oil here.
R - Nigh Pressure Nose-- Connect one end to water pump
and the other end to spray gun.
S - Accessory Tray-- Provides convenient storage for
standard and optional accessories,such as brushes,
turbo wands, etc.
T- Spray Tips-- Detergent,0°, and 25°: for various high
pressure cleaning applications.
Items Not Shown:
Data Tag (near rear of baseplate) -- Provides model and
serial number of pressure washer. Pleasehave these readily
availableif calling for assistance.
