24

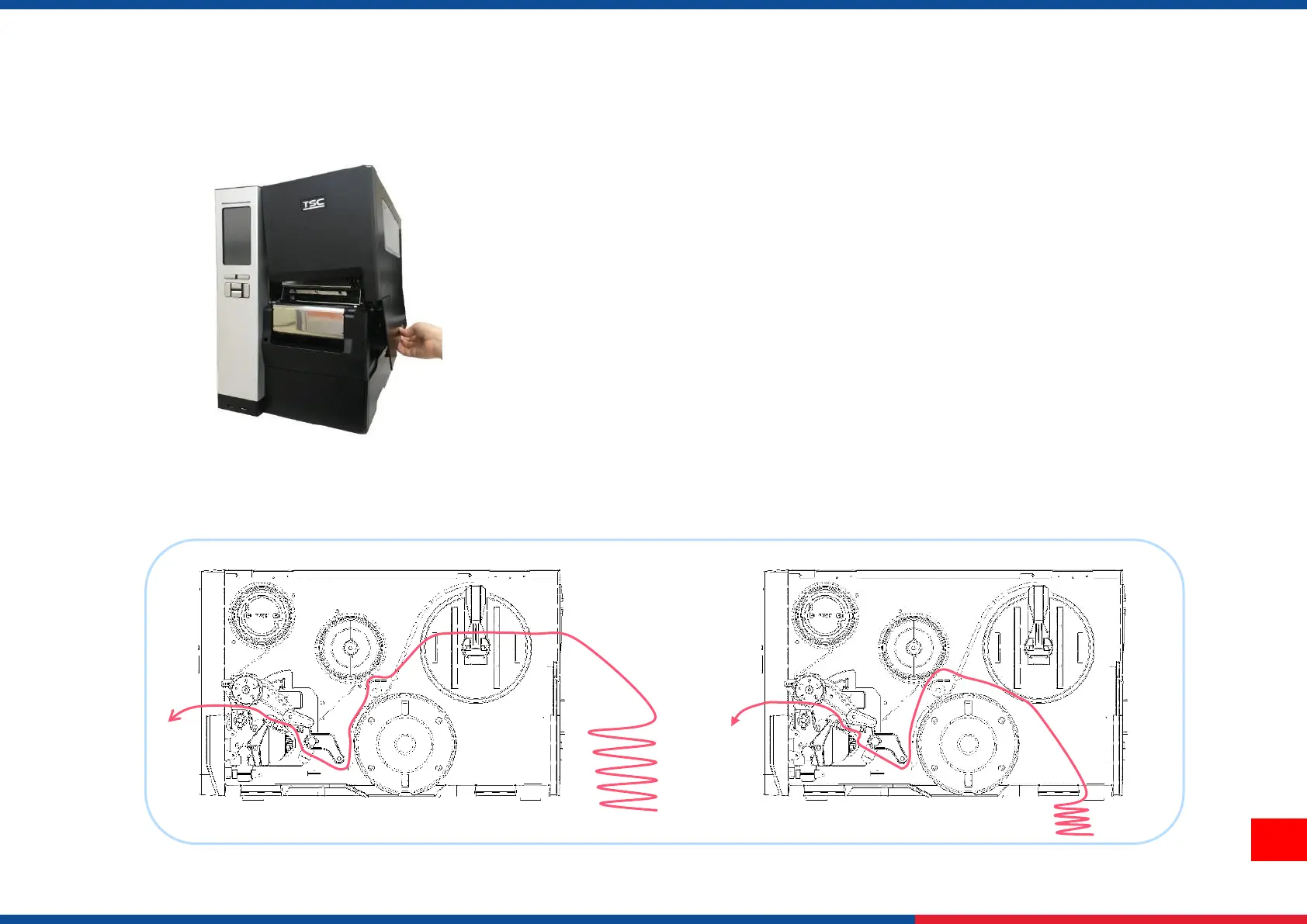

3.4 Loading the Fanfold/External Media
1.
Open the printer right side cover
.
2.
Insert the fanfold media through the rear external l
abel
entrance chute.
3.
Refer 3.3 to load the media.
Note: Please calibrate the gap/black mark sensor when changing media.
Loading path for f
an
-fold labels
28
30
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
6
Product Specification
7
Product Standard Feature
7
Printer Optional Features
9
Printer Specifications
11
Print Specifications
12
Ribbon Specifications
13
Media Specifications
13
2 Operation Overview
14
Unpacking and Inspection
14
Printer Overview
15
Front View
15
Interior View
16
Rear View
18
Operator Control
19
LED Indication and Keypads
20
Touch Screen Manipulation
22
Power-On Utilities
23
3 Setup
24
Setting up the Printer
24
Loading the Ribbon
25
Loading the Media
27
Loading the Fanfold/External Media
29
Loading Media in Peel-Off Mode (Option)
30
Loading Media in Rewinder Mode (Option)
31
4 Knob Adjustment
32
Ribbon Tension Adjustment Knob
33
Mechanism Fine Adjustment to Avoid Ribbon Wrinkles
34
5 TSC Console
37
Start TSC Console
37
Setup Ethernet Interface
39
Set Wifi and Add to TSC Console Interface
41
Initialize the Printer Wifi Setting
44
Printer Function
45
Setting Post-Print Action
46
6 LCD Menu Function
47
Enter the Menu
47
Menu Overview
48
Setting
49
Tspl
50
Zpl2
52
Sensor
55
Interface
56
Serial Comm
57
Ehernet
58
Wi-Fi
59
Bluetooth
60
Advanced
61
File Manager
63
Diagnostic
64
Favorites
65
7 Troubleshooting
66
8 Maintenance
69
9 Angency Complicance and Approvals
71
10 Revise History
77
5
