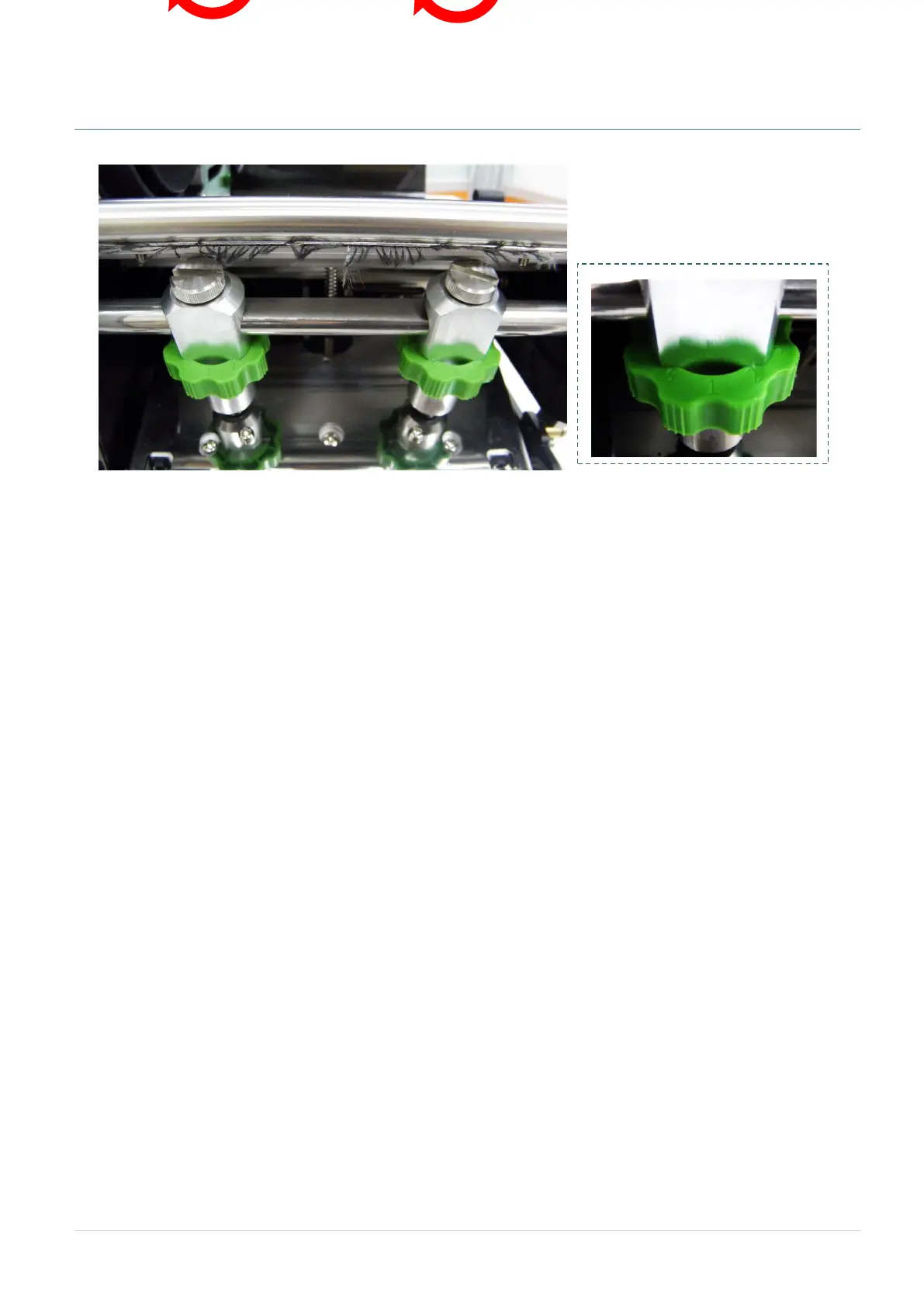

4. Moveable Print Head Pressure Adjustment Knob
The moveable print head pressure adjustment knob has 5 levels of adjustment. Because the print engine’s paper
alignment is to the left side (or right side/ PEX-1200 series) of mechanism, different media widths require different
pressure to print correctly. Therefore it may require to adjust the pressure knob to get your best print quality. For
example, if the label width is 4”, adjust both print head pressure adjustment knobs to the same level. If the label is
less than 2” wide with PEX-1100 series, increase the left side print head pressure by rotating the adjustment knob
clockwise and decrease the right side pressure by rotating the adjustment knob counter-clockwise to level 1.
4.1 Mechanism Fine Adjustment to Avoid Ribbon Wrinkles

TSC PEX-1121 Series Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Print Speed	12 ips
Media Width	25.4 mm - 114 mm
Media Thickness	0.075 mm - 0.2 mm
Connectivity	USB, RS-232, Ethernet
Operating System Compatibility	Windows, Linux
Media Type	Continuous, Die-cut, Fanfold
Media Core Diameter	76.2 mm (3")
Ribbon Width	40 mm - 110 mm
Ribbon Length	600 m
Ribbon Core Diameter	25.4 mm (1")
Maximum Print Width	104 mm
Interface	USB 2.0, RS-232, Ethernet
Power Supply	100-240V AC, 50/60 Hz
Operating Temperature	41°F - 104°F (5°C - 40°C)
Storage Temperature	-4°F - 140°F (-20°C - 60°C)
Humidity	25% to 85% non-condensing
