TSC PEX-1121 Series - Diagnostic

- 55 -
7.8 Diagnostic
Item
Description
Print Config.
This feature is used to print current print engine configuration to the label. On the
configuration printout, there is a print head test pattern, which is useful for checking if
there is any dot damage on the print head heater element.
Self-test printout
Model name
F/W version
Firmware checksum
Print engine S/N
Configuration file
System date
System time
Printed mileage (meter)
Cutting counter
Print speed (inch/sec)
Print darkness
Label size (inch)
Gap distance (inch)
Gap/black mark sensor intension
Code page
Country code
ZPL setting information
Print darkness
Print speed (inch/sec)
Label size
Control prefix
Format prefix
Delimiter prefix
Print engine power up motion
Print head close motion
Note:
ZPL is emulating for Zebra
®
language.
RS232 serial port configuration

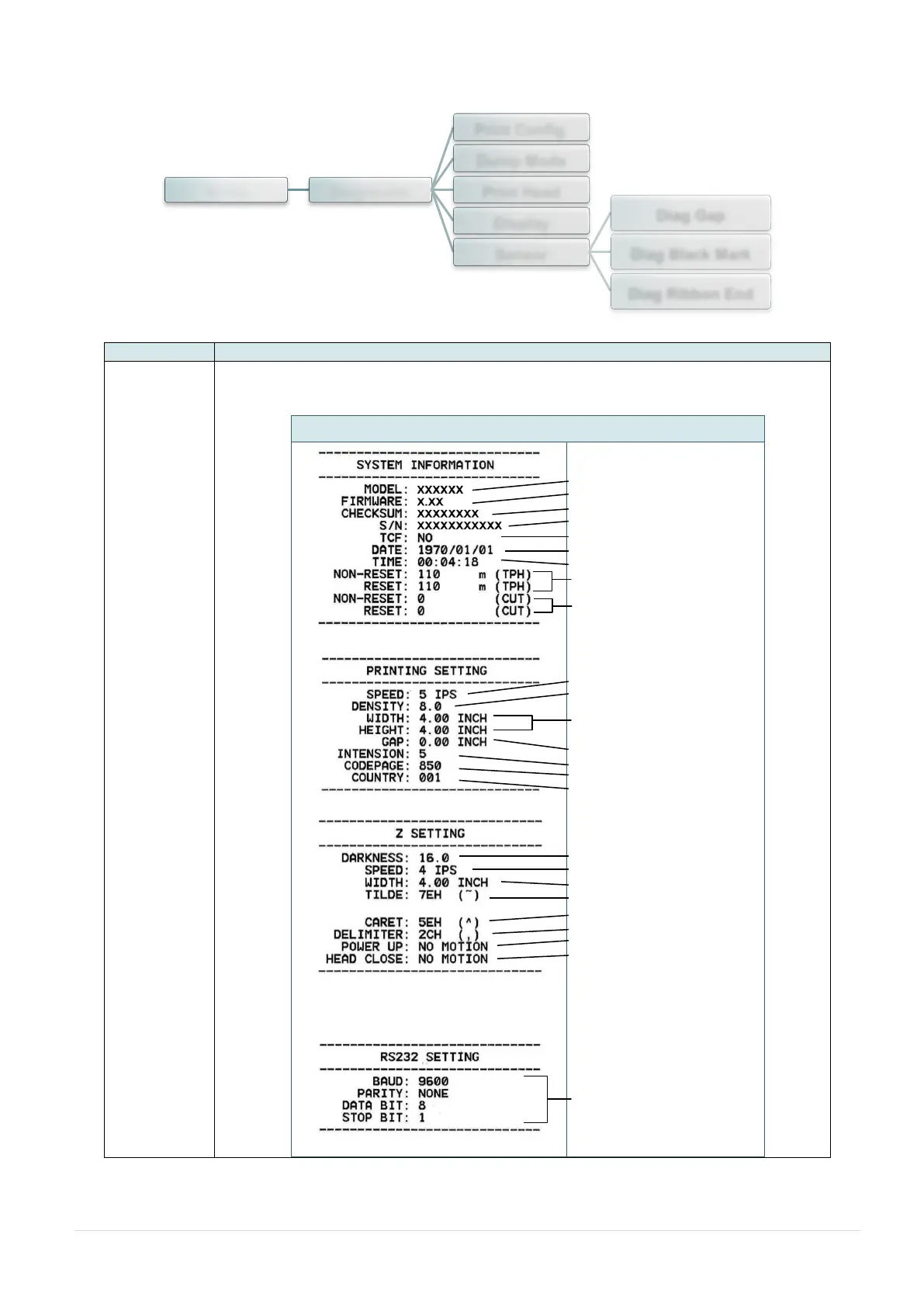

Menu Diagnostic
Print Config.
Dump Mode
Print Head
Display
Sensor
Diag Gap
Diag Black Mark
Diag Ribbon End
