TTP-268M/ TTP-366M
Bar Code Printer Service Manual

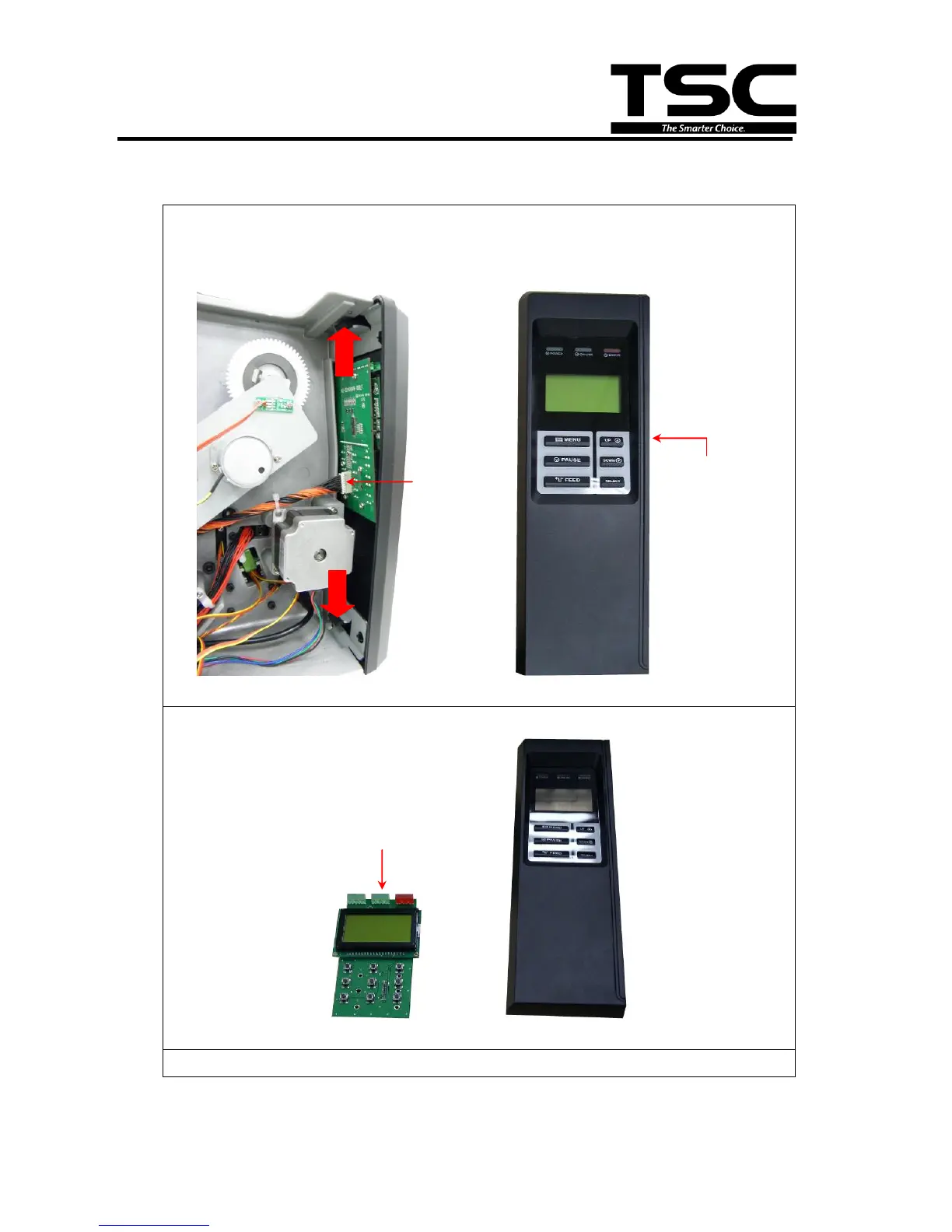

3.2 Replacing the LCD Panel Module
1. Refer to section 3.1 to remove the electronics cover.
2. Disconnect harness from the LCD panel module.
3. Push two tabs to remove/replace the LCD panel module.
4. Remove 5 screws to replace LCD panel PCB ASS'Y and LCD panel ASS'Y.
5. Reassemble the parts in the reverse procedures.
LCD panel
module
PUSH
PUSH
Harness
LCD panel PCB assembly
