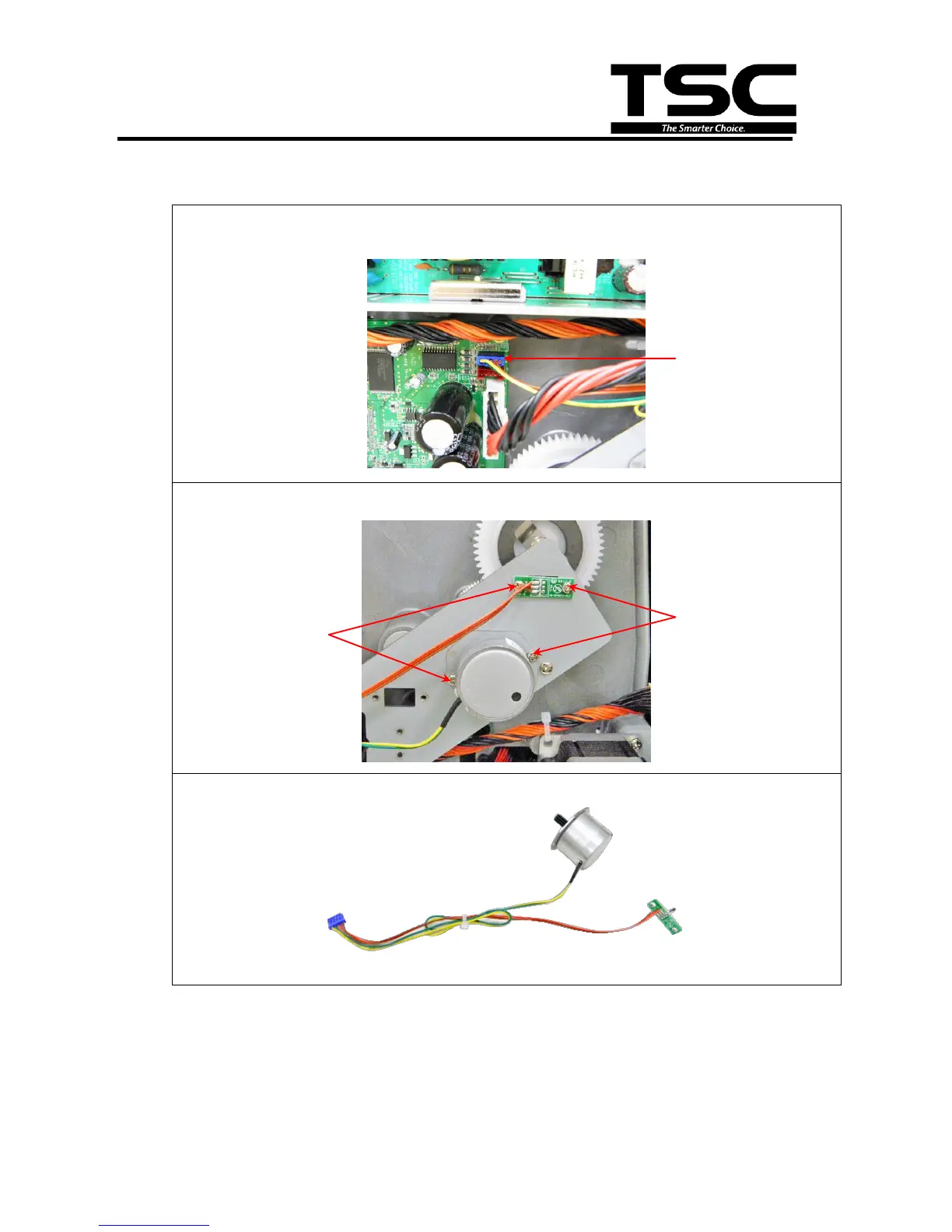

3.10 Replacing the DC Motor Module
1. Refer to section 3.1 to remove the electronics cover.
2. Disconnect the DC motor module connector from the main board.
3. Remove 4 screws from DC motor fixed plate.
4. Replace the DC motor module. (Including ribbon near end senor.)
5. Reassemble the parts in the reverse procedures.
DC motor module
connector
Screws
Screws
