TSC TTP-268M Service Manual

31
31
TTP-268M/ TTP-366M
Bar Code Printer Service Manual
3.12 Cutter Module Installation (Option)

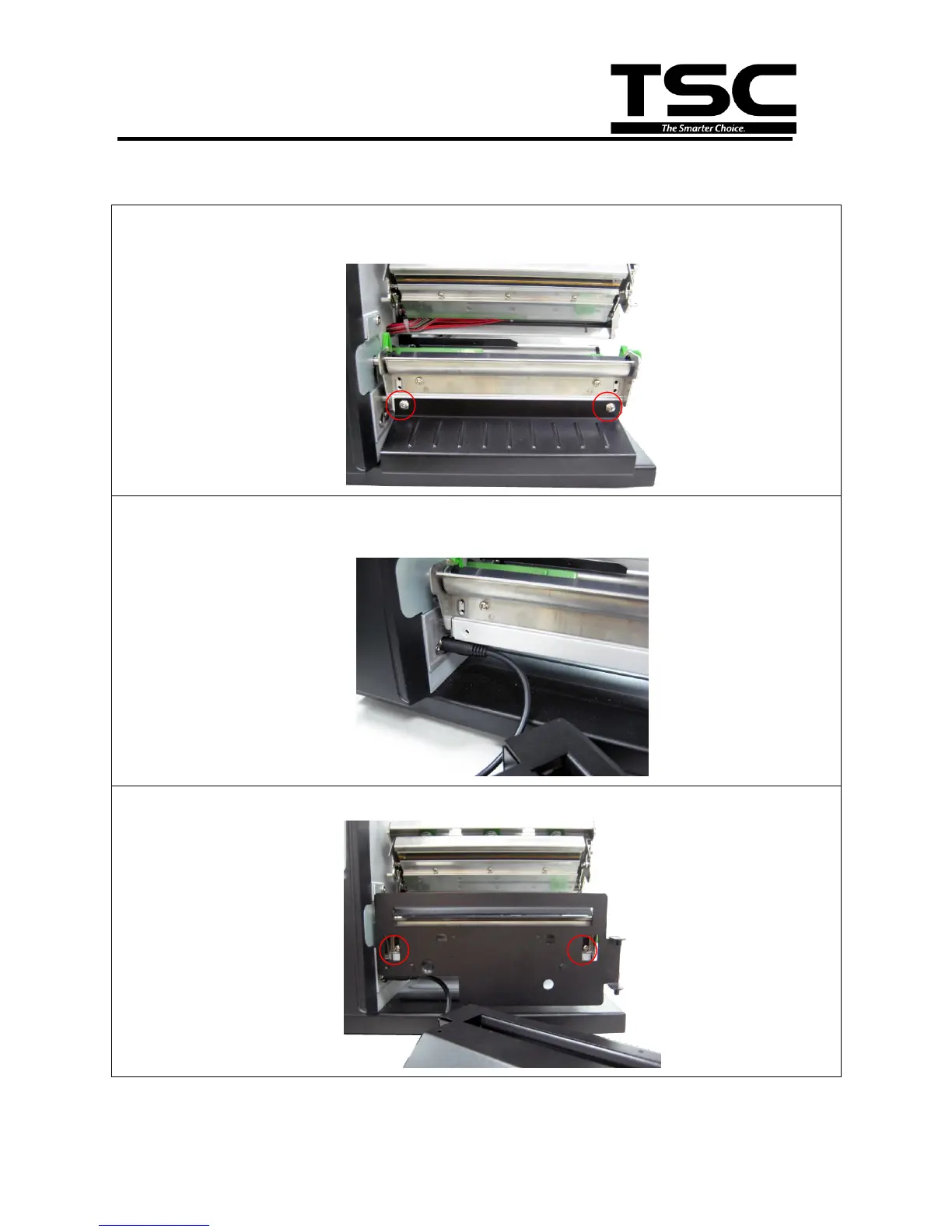

1. Open the printer right side cover.
2. Remove 2 screws to remove the lower front panel.
3. Plug the cutter mini DIN cable connector into the cutter/peel-off connector. The
triangle mark on the connector must be at the upper side.
4. Use 2 screws to lock the cutter fixing plate onto the front printer.
