TTP-268M/ TTP-366M
Bar Code Printer Service Manual

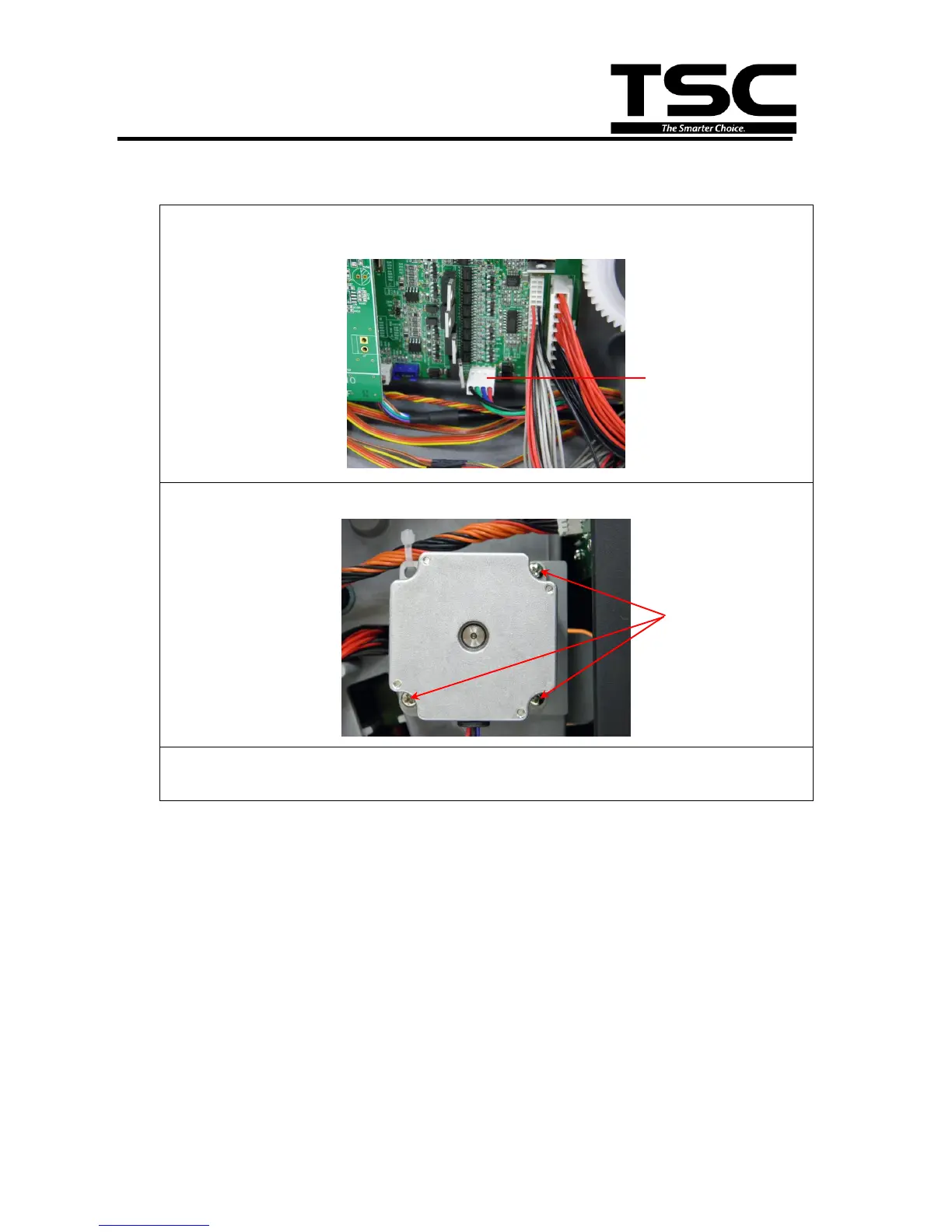

3.7 Replacing the Stepping Motor
1. Refer to section 3.1 to remove the electronics cover.
2. Disconnect the stepping motor connector from the main board.
3. Remove 3 screws and 1 fixed tie on the stepping motor.
4. Replace the stepping motor.
5. Reassemble the parts in the reverse procedures.
Stepping motor
connector
Screws
