Click the download button to program the Flowmaster
with the new settings. The text ‘Downloaded
successfully’ will appear as shown in Fig. 4.13.
Fig. 4.12 Programming new settings to the Flowmaster
- disabling automatic logging controls
The Flowmaster 250DL is shipped with current date
and time (GMT) set and with a sample interval of
one second. Automatic triggering is enabled as default
setting.
Fig. 4.13 Programming new settings to the Flowmaster
- downloading new settings
The automatic logging controls can be disabled by
deselecting the tick box - the settings will fade to light
grey, as shown in Fig. 4.12.
Fig. 4.11 Device Settings - USB not connected
The settings which can be established on the ‘Device
Settings’ menu are:
• Date and Time setting on the Flowmaster real time
clock
• Sampling rate in seconds
• Whether to data log in manual or in automatic mode
• The trigger and hysteresis conditions for automatic
logging.
EXPLANATION OF SOFTWARE DISPLAY
Plot Zooming
Plot Data
Visualisation
Workspace
Reporting Plot Functions
USB Logging Data Upload from Logger
Device
Setting
Battery Level
Indicator
Log Files
Flow / Volume & Pressure Readouts
Flow / Volume &
Pressure Plotting Area
TSI Flowmeters Ltd.4Version 1.3 (February 2012)
Logger Memory
Availability

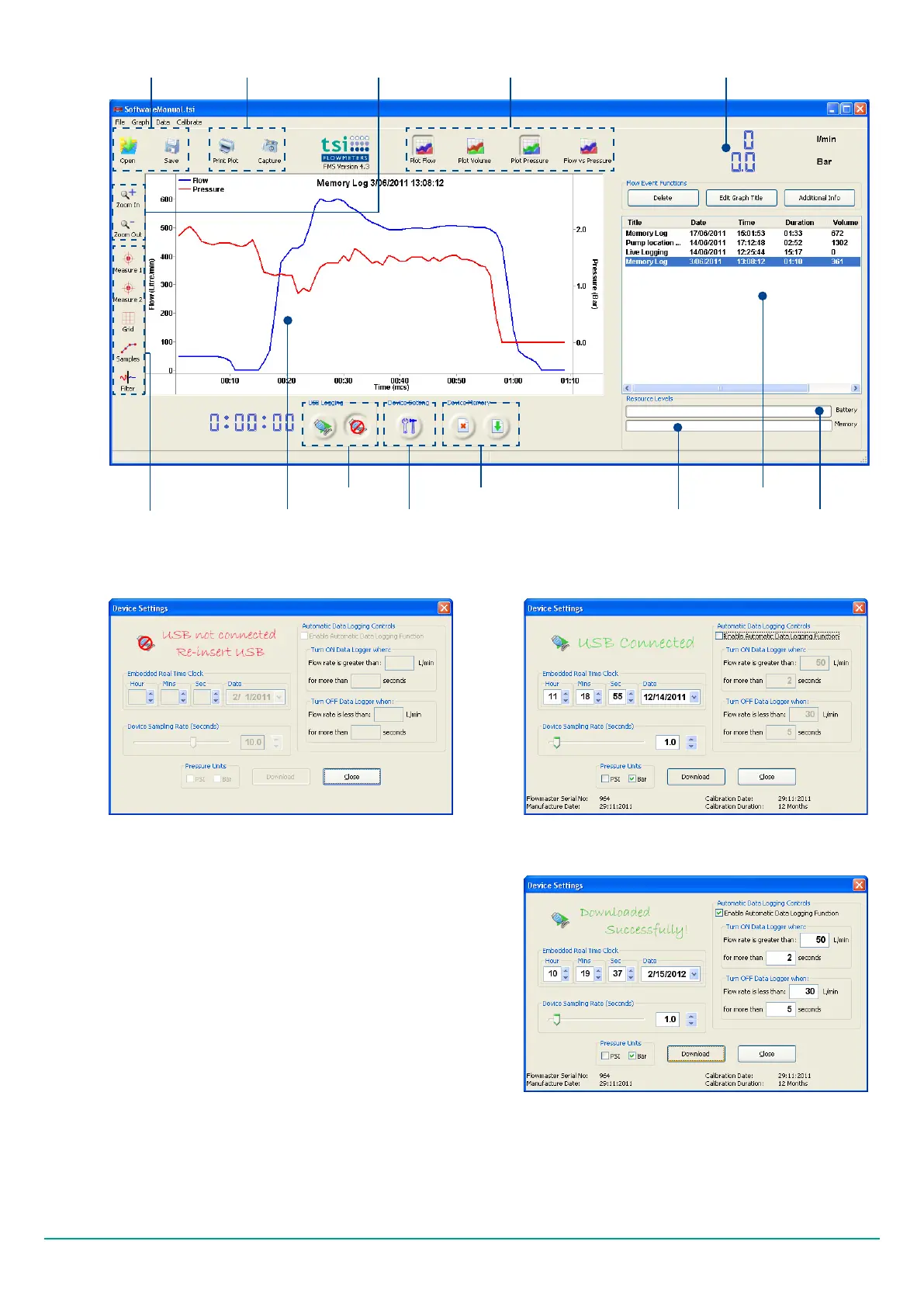

Fig. 4.8 Explanation of software buttons and menus
Version 2.0 (February 2012) TSI Flowmeters Ltd.13
