TurboChef TORNADO 2 Service Manual

SERVICE PARTS AND ILLUSTRATIONS
66

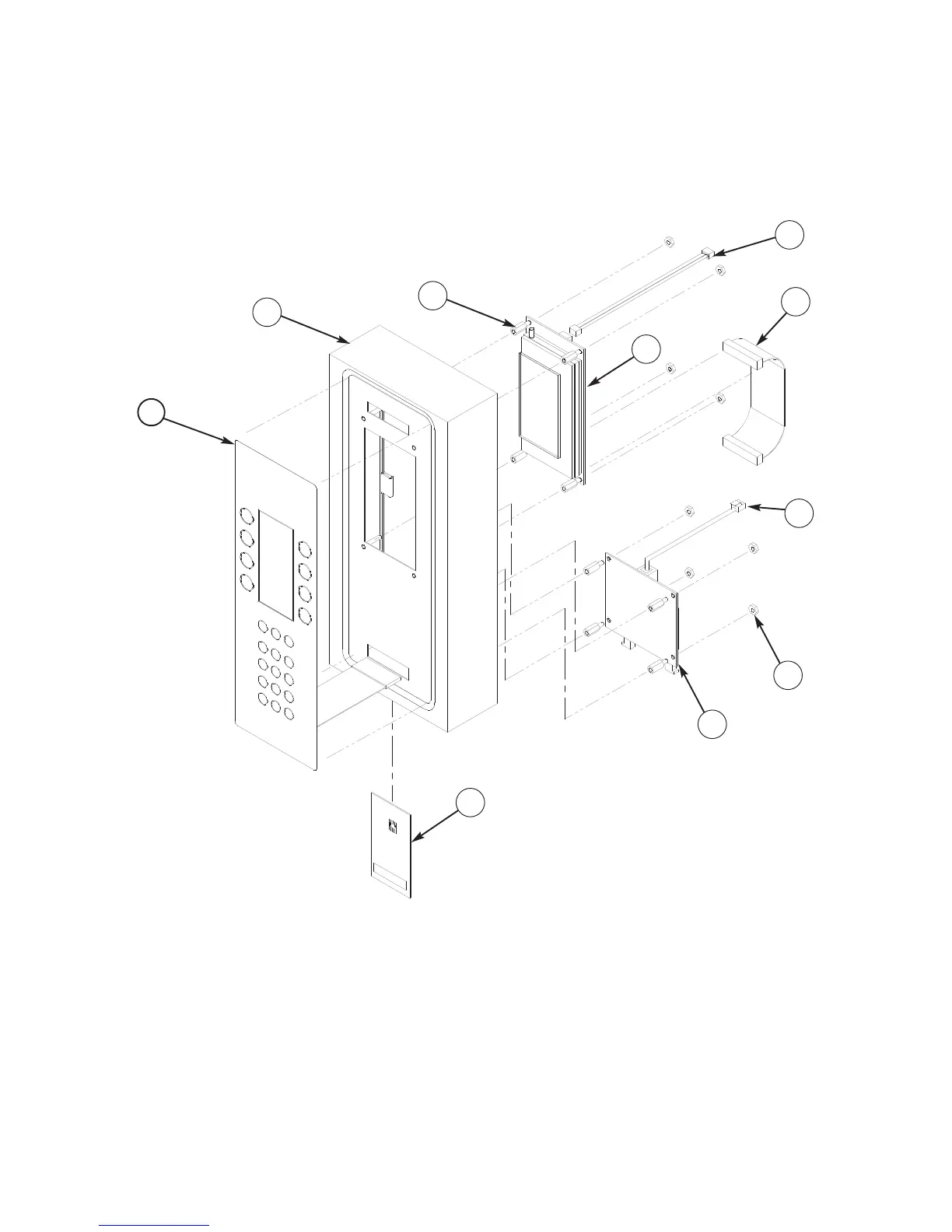

FIGURE 17: CONTROL SYSTEM PANEL ENCLOSURE AND PARTS
Chapter 4: The Control System - Page 20
CONTROL SYSTEM PANEL PARTS
Figure 17.
1.
NGC-1040 Cover, Keypad/Display, Std
NGC-1209
Cover, Keypad/Display, SBK
2. 102960 Nut, 4-40, Stainless
3. 100508 Smart Card, Blank
(Varies)* Smart Card, Programmed*
4.
NGC-3023
Display Svc Kit (includes
Items 5, 6, and 7)
5. 101954 Spacer, 1/2” Lg, Aluminum
6.
100193 3-Pin Power Cable
7.
100184
26-Pin Ribbon Cable
8. NGC-1110-1 Keypad, NGC, Standard
NGC-1110-2 Keypad, NGC, SWY
NGC-1110-3
Keypad, NGC, SBK
NGC-1110-4
Keypad, NGC, OUT
9.
100506 Smart Card Reader
10. 100182 Smart Card Reader Cable
* Contact TurboChef (800.90TURBO or
+1 214.379.6000) for more info/part numbers.
1
2
3
4
5
6
7
10
9
8
