SERVICE PARTS AND ILLUSTRATIONS

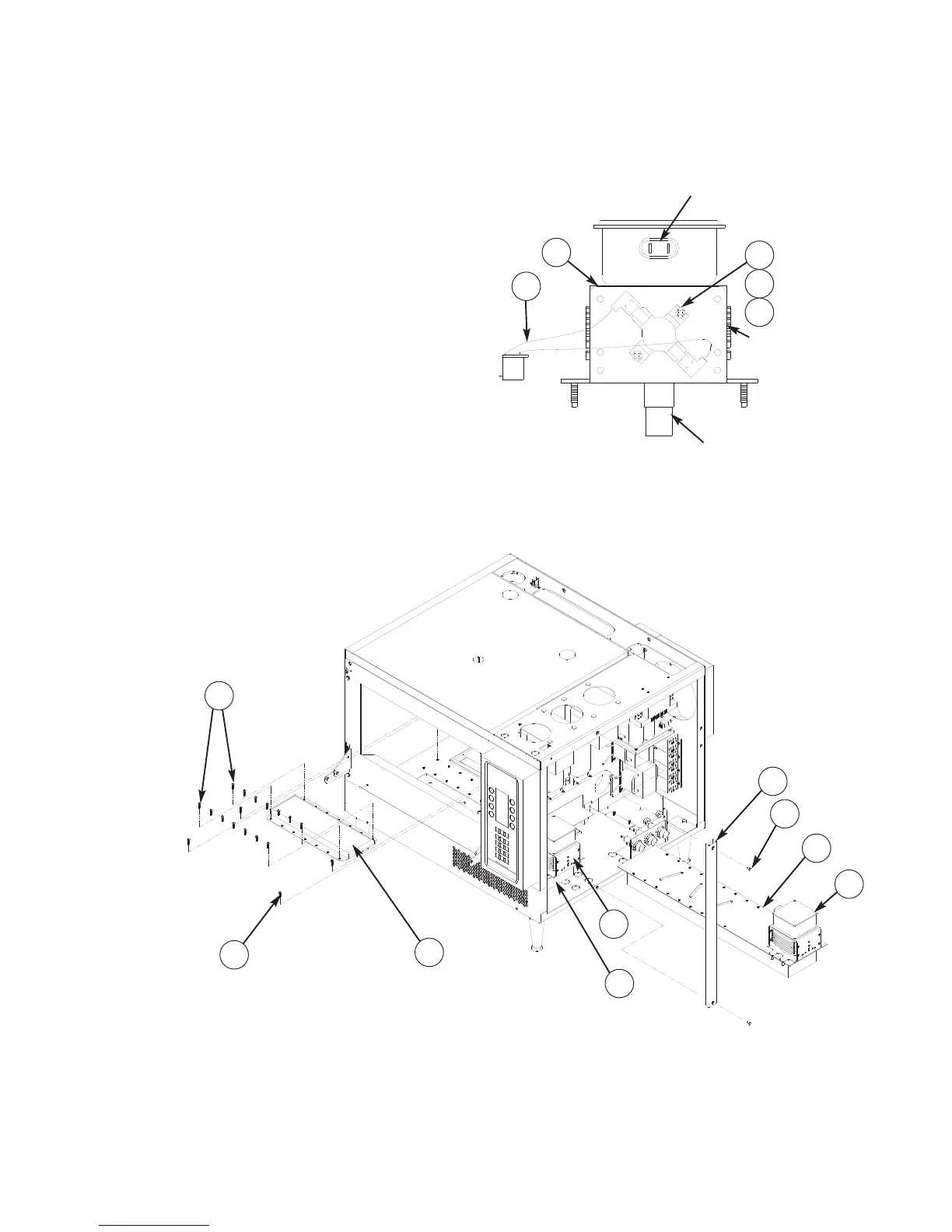

FIGURE 21: MICROWAVE SYSTEM PARTS
Chapter 5: The Microwave System - Page 27
Microwave System Parts
24.
100186
Magnetron Wire
25. NGC-3015 Magnetron
26.
102070
Magnetron Thermostat
27. NGC-1163 Insulator, Adhesive
28.
100684 Screw #6 Sheet Metal
Wave Guide/Wave Guide Cover Parts
29.
NGC-3036 Kit, Wave Guide Cover (Includes
Item 31 and sealant)
30. 101666
Screws, #8-32 x 1/2, Cap
31. 101701 Screws, #8, SST
32. NGC-1047 Support, Frame
33.
102809 Screws, #8-32 x 3/8” CSK (100
º
)
34.
NGC-3017 Assy, Wave Guide, Rear
35. NGC-3015 Magnetron, Rear
36. NGC-3015 Magnetron, Front
37. NGC-3016 Assy, Wave Guide, Front
FIGURE 22: WAVE GUIDE COVER/WAVE GUIDE REMOVAL AND REPLACEMENT
Chapter 5: The Microwave System - Page 29
F
F
A
FILAMENT AND HIGH
VOLTAGE TERMINALS
COOLING
FINS
(ORG)
(BLK)
ANTENNA
25
26
27
28
24
